Liftgate Latch Remote Control

LIFTGATE LATCH REMOTE CONTROL

REMOVAL
1. Remove the liftgate trim panel.

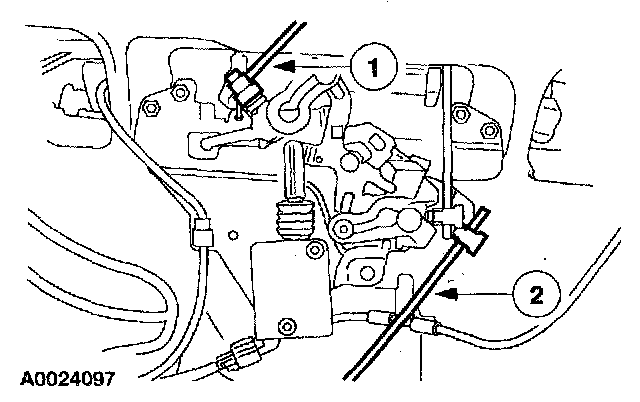

2. Disconnect the liftgate latch remote control actuating rods.
1 Open the clip and disconnect the liftgate window latch actuating rod.
2 Open the clip and disconnect the liftgate latch actuating rod.

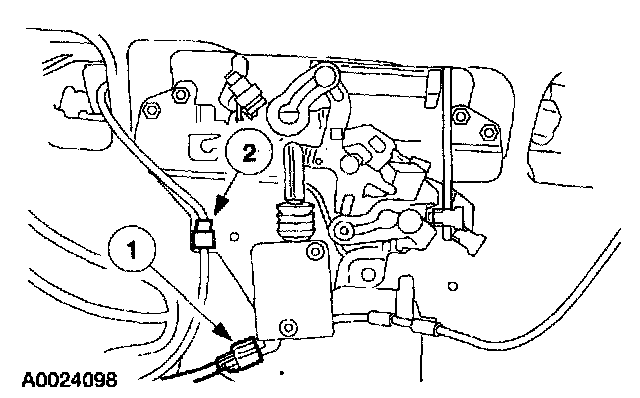

3. Disconnect the electrical connectors.
1 If equipped, disconnect the liftgate latch actuator electrical connector.
2 Release the liftgate window latch ajar switch wiring harness locator.







4. Remove the liftgate latch remote control assembly.
- Remove the screw and nuts.

INSTALLATION
1. To install, reverse the removal procedure.
- Transfer all necessary components.
