Liftgate Latch

LIFTGATE LATCH

REMOVAL
1. Remove the liftgate trim panel.

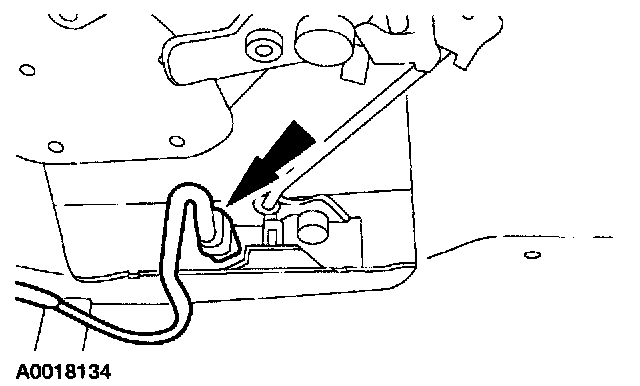

2. Disconnect the liftgate ajar switch electrical connector.

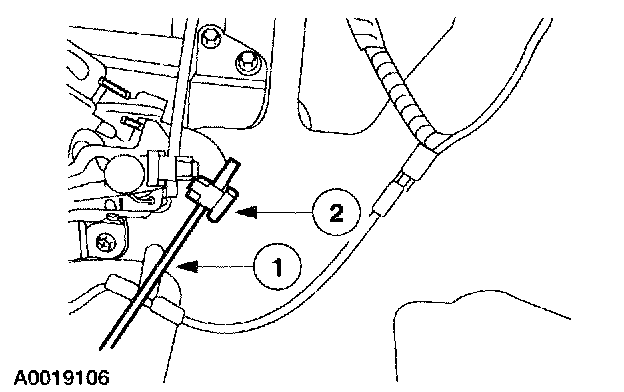

3. Disconnect the liftgate latch actuating rod.
1 Open the clip.
2 Disconnect the actuating rod.

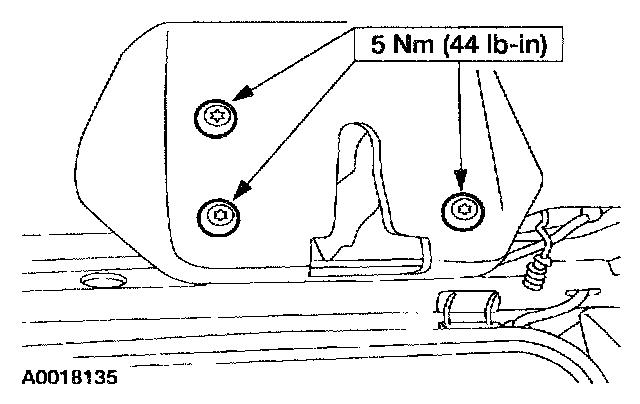

4. Remove and discard the liftgate latch bolts.
5. Remove the liftgate latch.

INSTALLATION

1. NOTE:
- Make sure the liftgate latch release rod is not preloading the latch. It should be clipped in a relaxed state with no slack.
- Position the liftgate latch release rod by pushing outboard to remove the slack.

To install, reverse the removal procedure.
