Rear Door: Adjustments

DOOR ALIGNMENT - REAR DOOR

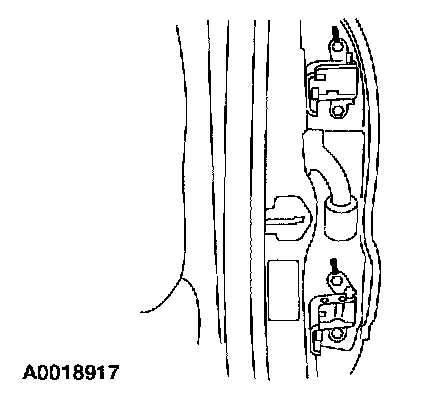

1. Mark the position of the rear door hinge to use as a reference.

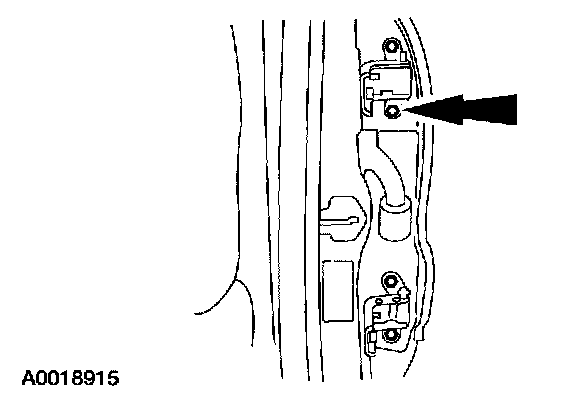

2. Loosen the rear door hinge to rear door bolts just enough to permit movement.

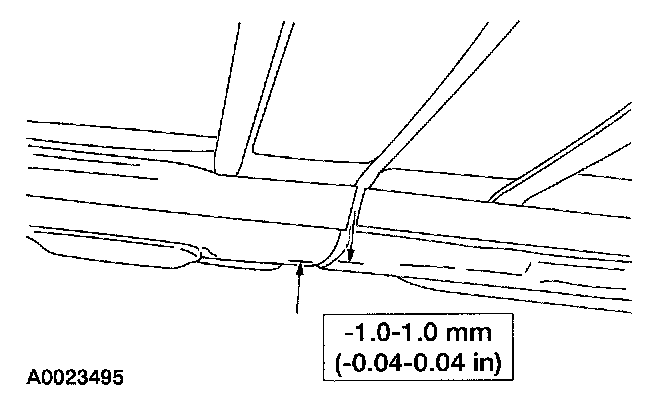

3. Adjust the rear door alignment to specification.

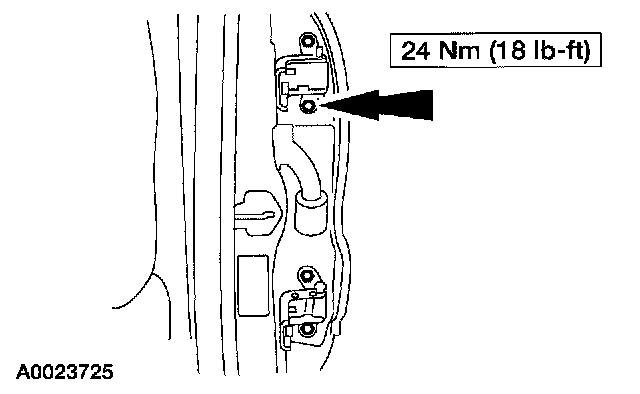

4. Tighten the rear door hinge-to-rear door bolts.
5. If necessary, adjust the door striker.
