Front Door: Adjustments

DOOR ALIGNMENT - FRONT DOOR

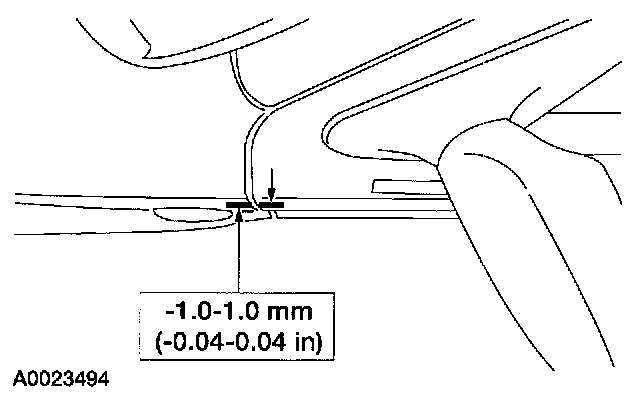

NOTE:Make sure the rear door is within specification before making any adjustments to the front door. Refer to the specification chart. Specifications

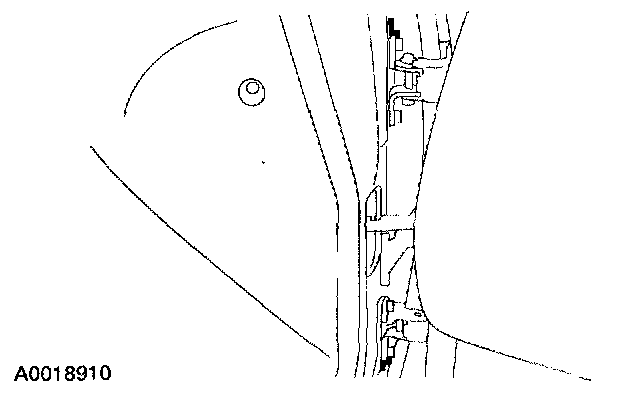

1. Mark the positions of the front door hinges to use as reference points







2. Loosen the front door hinge-to-front door bolts just enough to permit movement.







3. Adjust the front door alignment to specification.

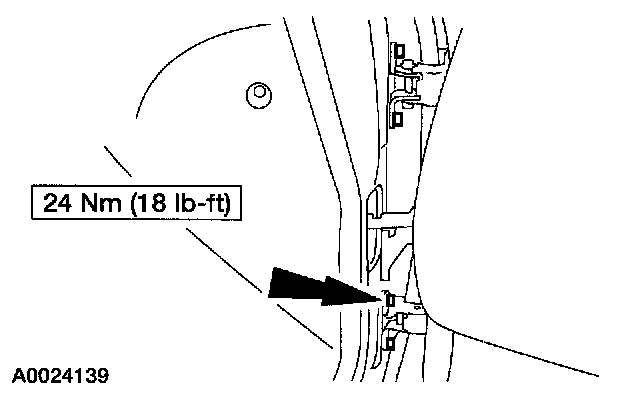

4. Tighten the front door hinge-to-front door bolts.
