Rear Bumper Reinforcement: Service and Repair

REAR BUMPER

Removal and Installation
1. Remove the rear bumper cover.







2. Remove the rear bumper.

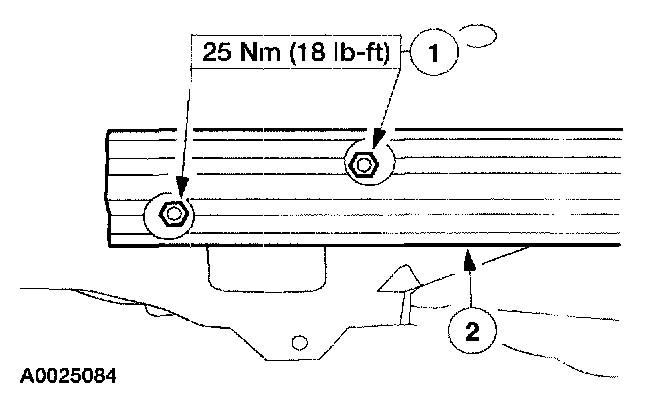

1 Remove the four rear bumper nuts (two each side).
2 Remove the rear bumper.

3. To install. reverse the removal procedure.
