Rear Bumper Cover / Fascia: Service and Repair

REAR BUMPER COVER

Removal and Installation
1. If equipped, disconnect the parking aid system electrical connector.

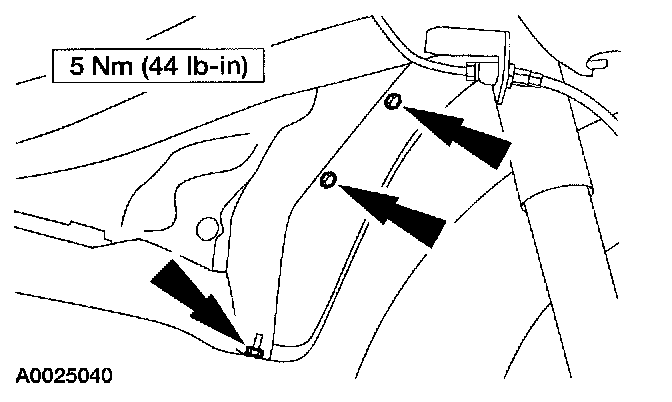

2. Remove the six rear splash shield bolts (three each side).

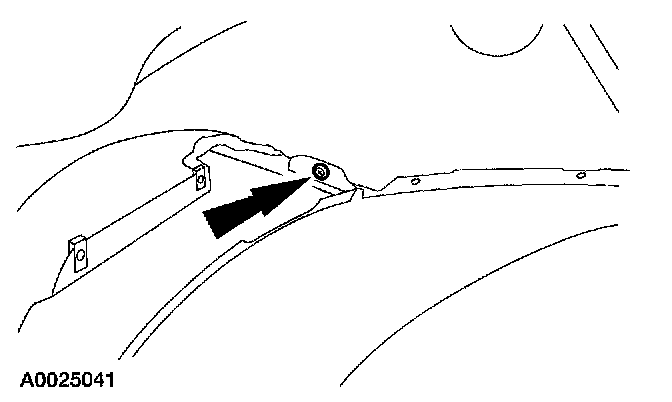

3. Remove the two rear bumper cover to rear quarter panel screws (one each side).

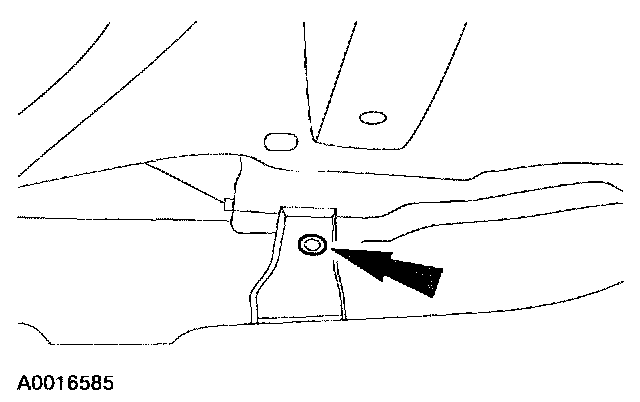

4. Remove the four pin-type retainers.







5. Remove the rear bumper cover.

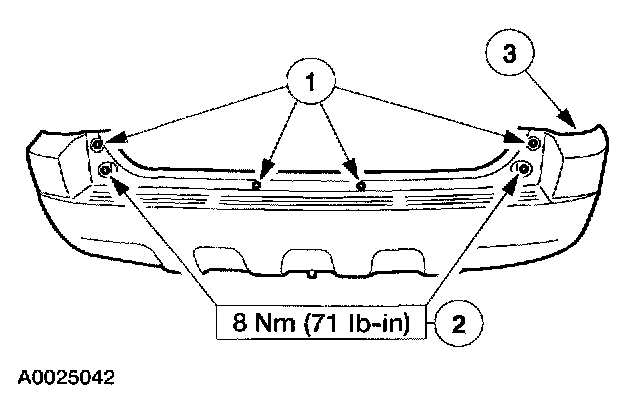

1 Remove the screws.
2 Remove the bolts and the liftgate alignment bumpers.
3 Remove the rear bumper cover.

6. To install, reverse the removal procedure.
- When installing. be sure to position the rear bumper cover into the bumper slides.
- Transfer components as necessary.
