Front Bumper Cover / Fascia: Service and Repair

FRONT BUMPER COVER

Removal and Installation
1. Raise and support the vehicle.

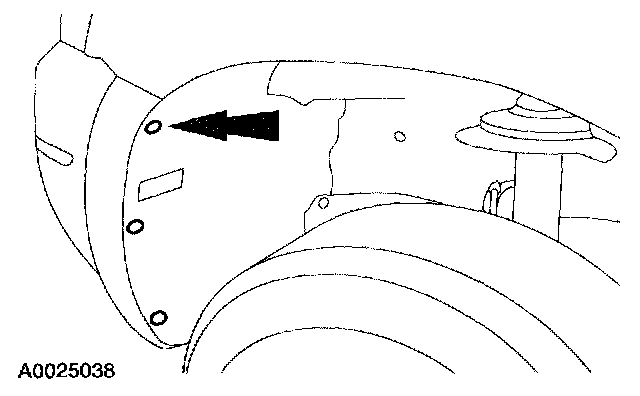

2. Remove the six pin-type retainers (three each

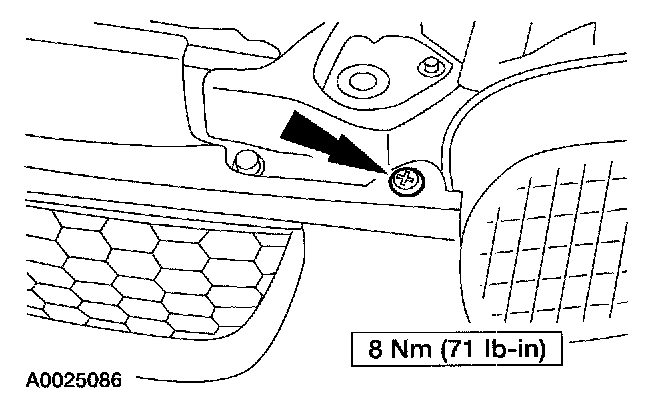

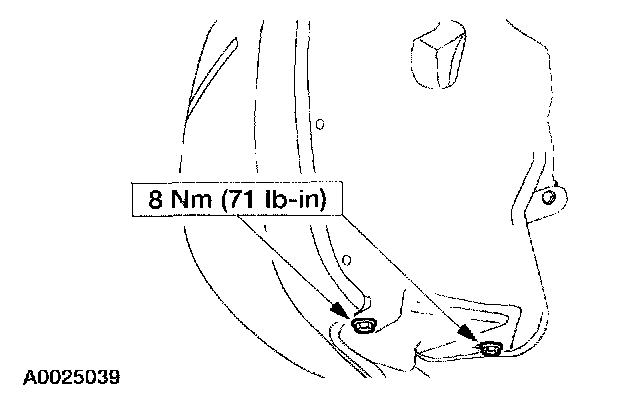

3. Remove the foul front bumper cover bolt (two each side).







4. Remove and discard the two front bumper cover-to-front fender pin-type retainers (one each side).
5. If equipped, disconnect the fog lamp electrical connectors.

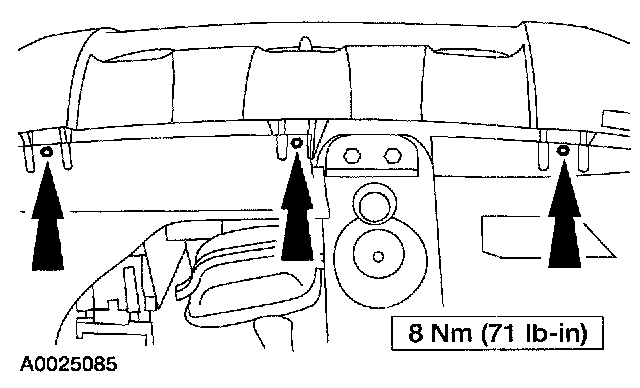

6. Remove the lower front bumper cover bolts.

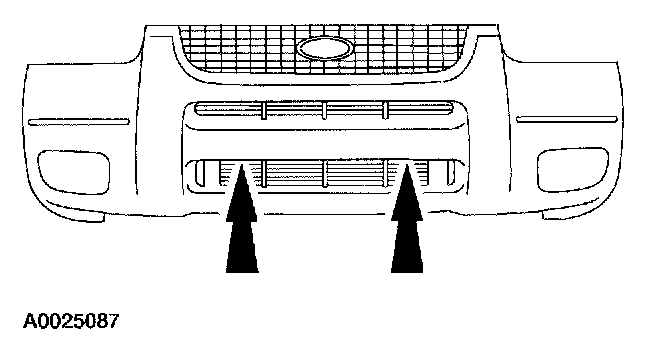

7. Remove the pin-type retainers.







8. Lower the vehicle.

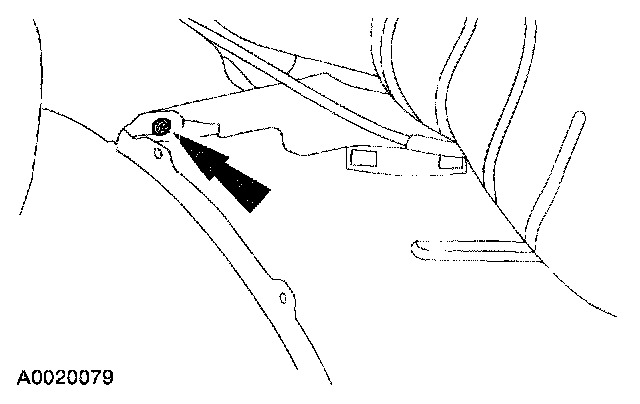

9. Remove the two upper bolts (one each side) and the front bumper cover.
10. To install, reverse the removal procedure.
- When installing, be sure to position the front bumper cover into the bumper slides.
- Transfer components as necessary.
