Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test J
Test J

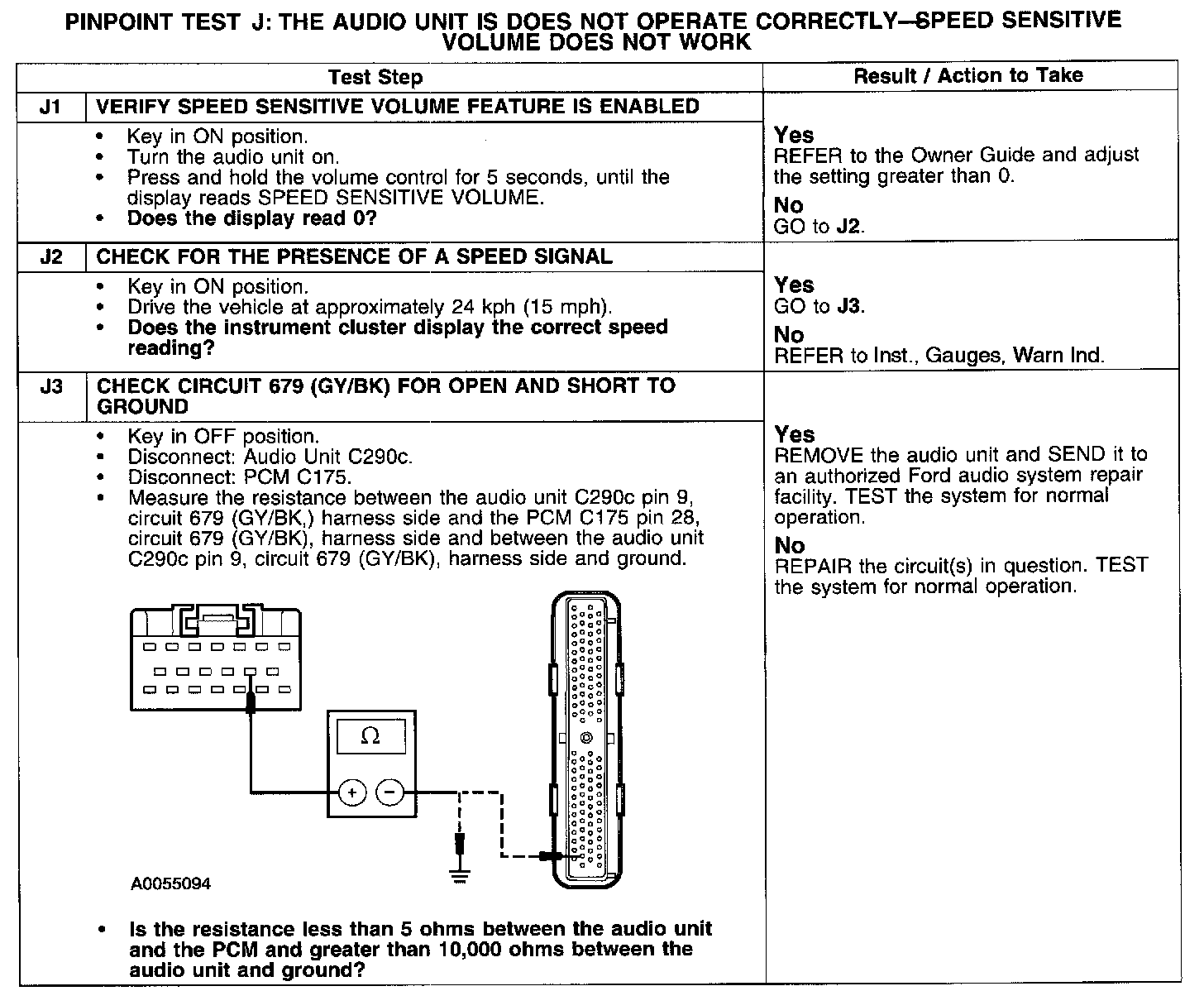

PINPOINT TEST J: THE AUDIO UNIT DOES NOT OPERATE CORRECTLY-SPEED SENSITIVE VOLUME DOES NOT WORK
Test J1-J3:
