Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> Test F

Test F

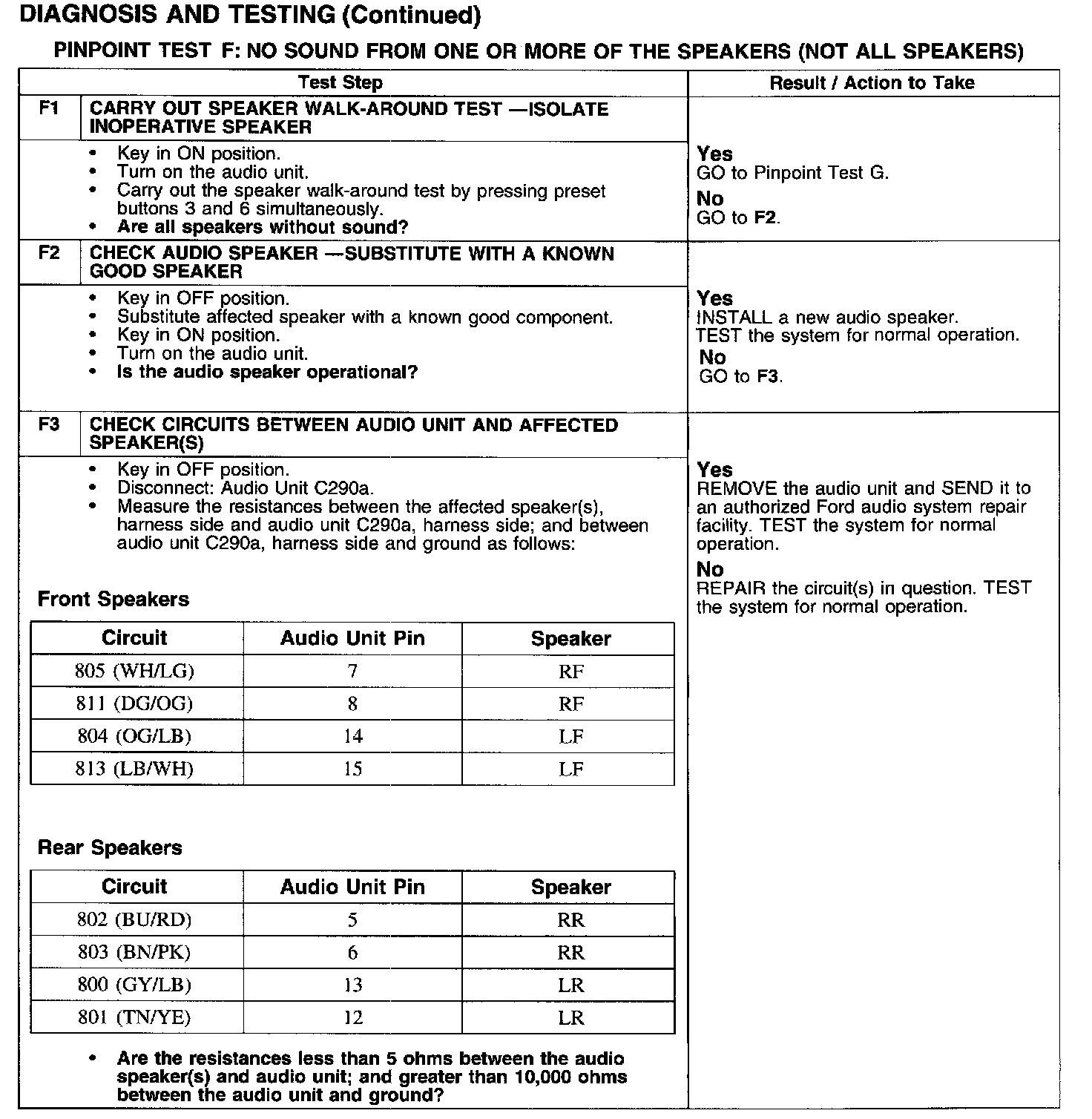

PINPOINT TEST F: NO SOUND FROM ONE OR MORE OF THE SPEAKERS (NOT ALL SPEAKERS)


Test F1-F3:
