Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures

Diagnostic Trouble Code Tests and Associated Procedures

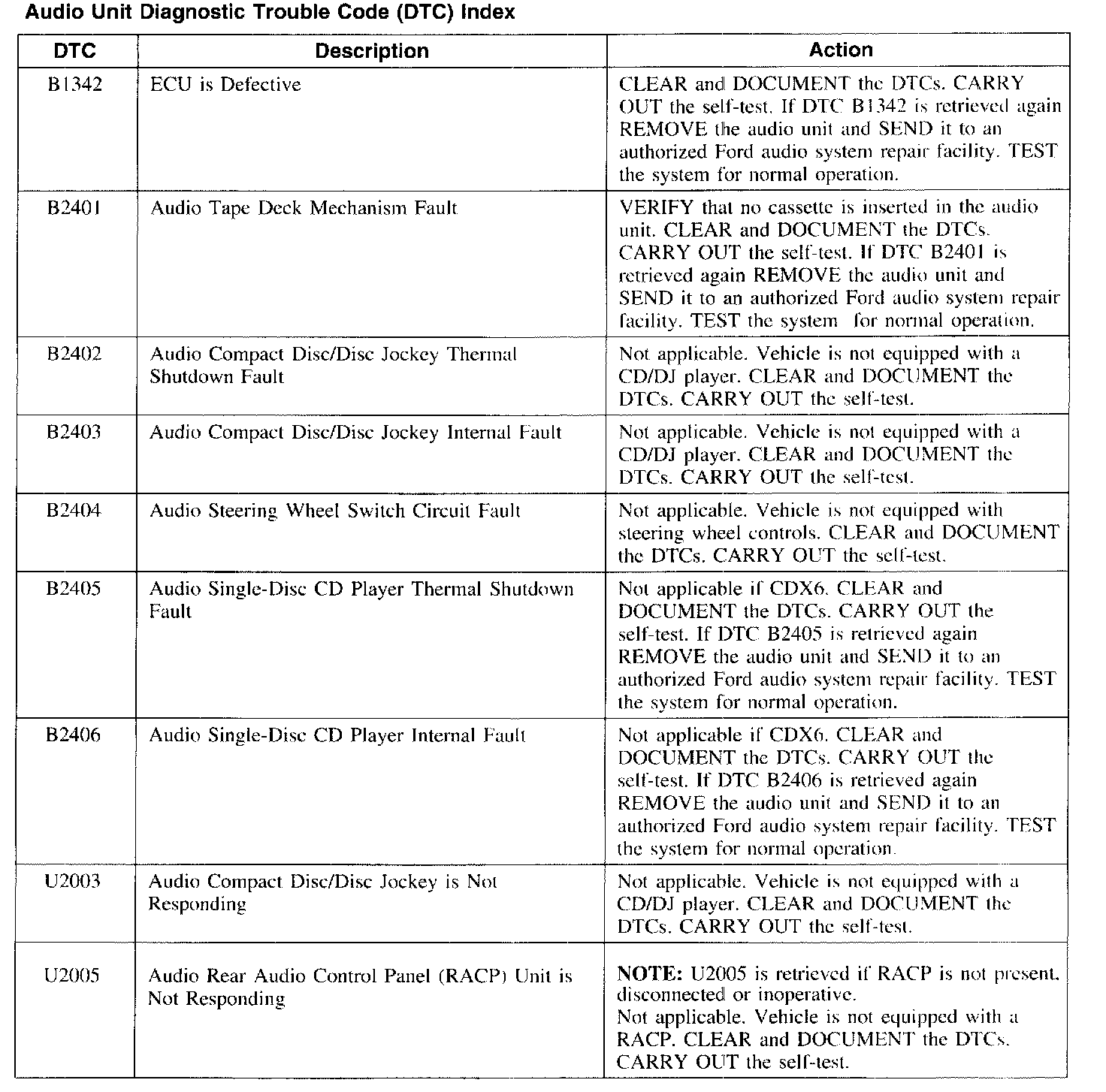

DTC Index B1342 - U2005:

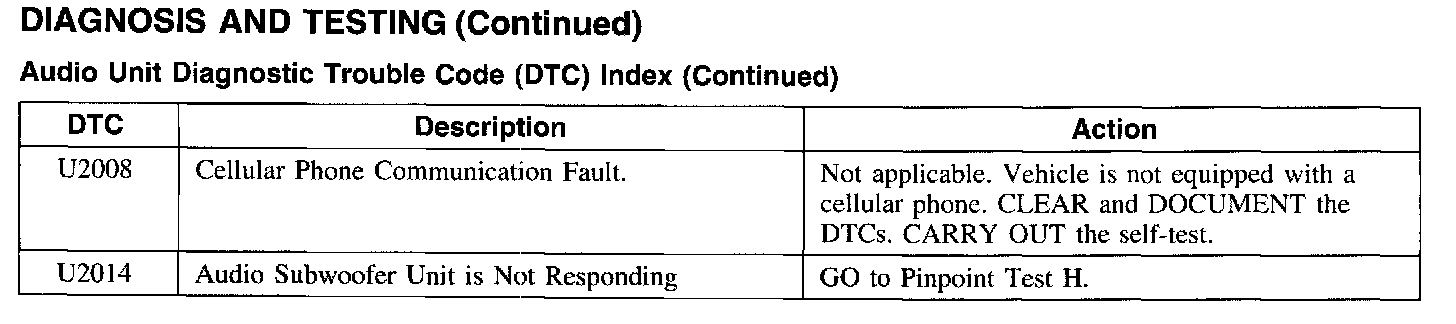

DTC Index U2008 - U2014:
