Diagnostic Trouble Code Tests and Associated Procedures

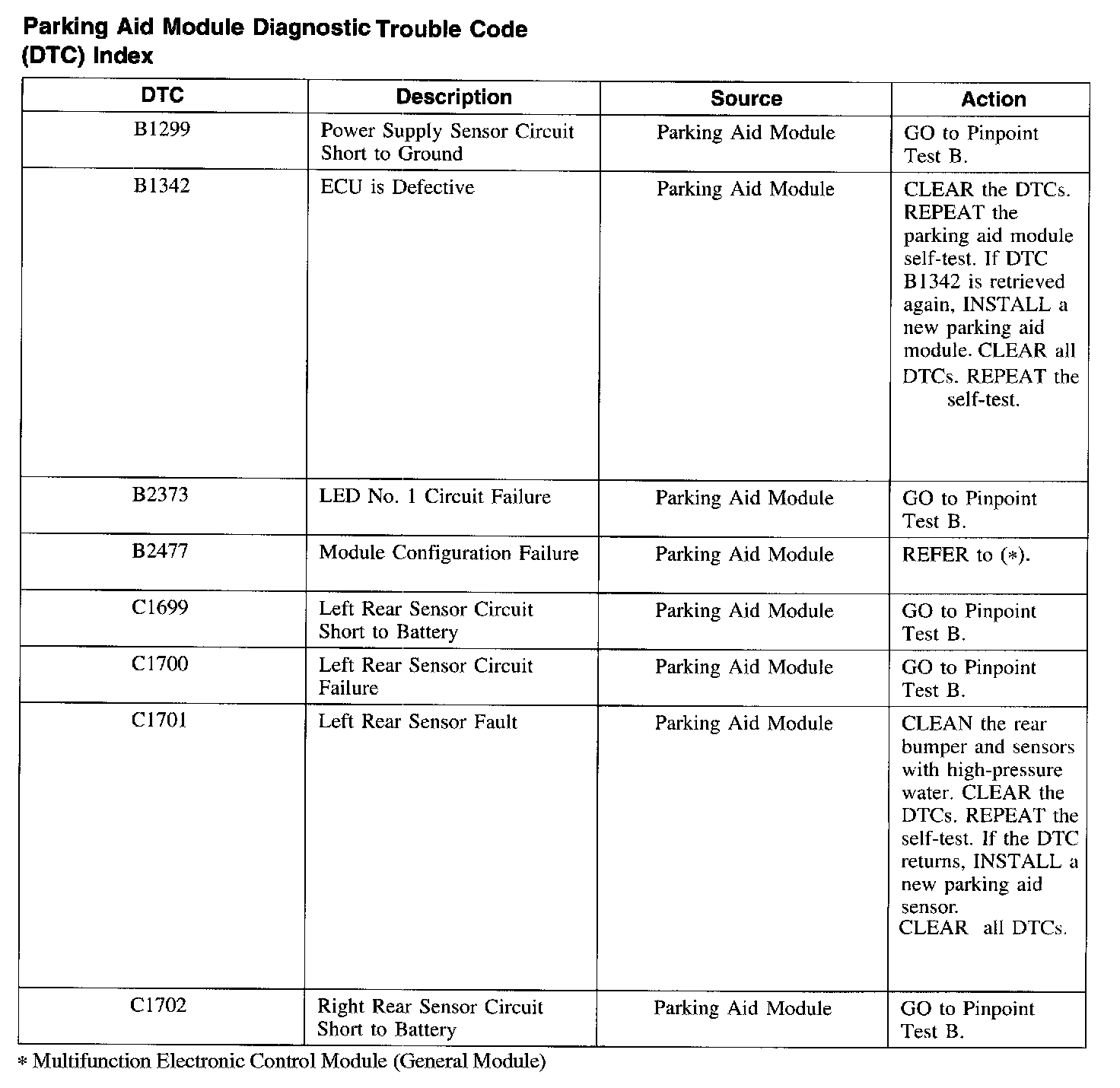

DTC Index B1299 - C1702:

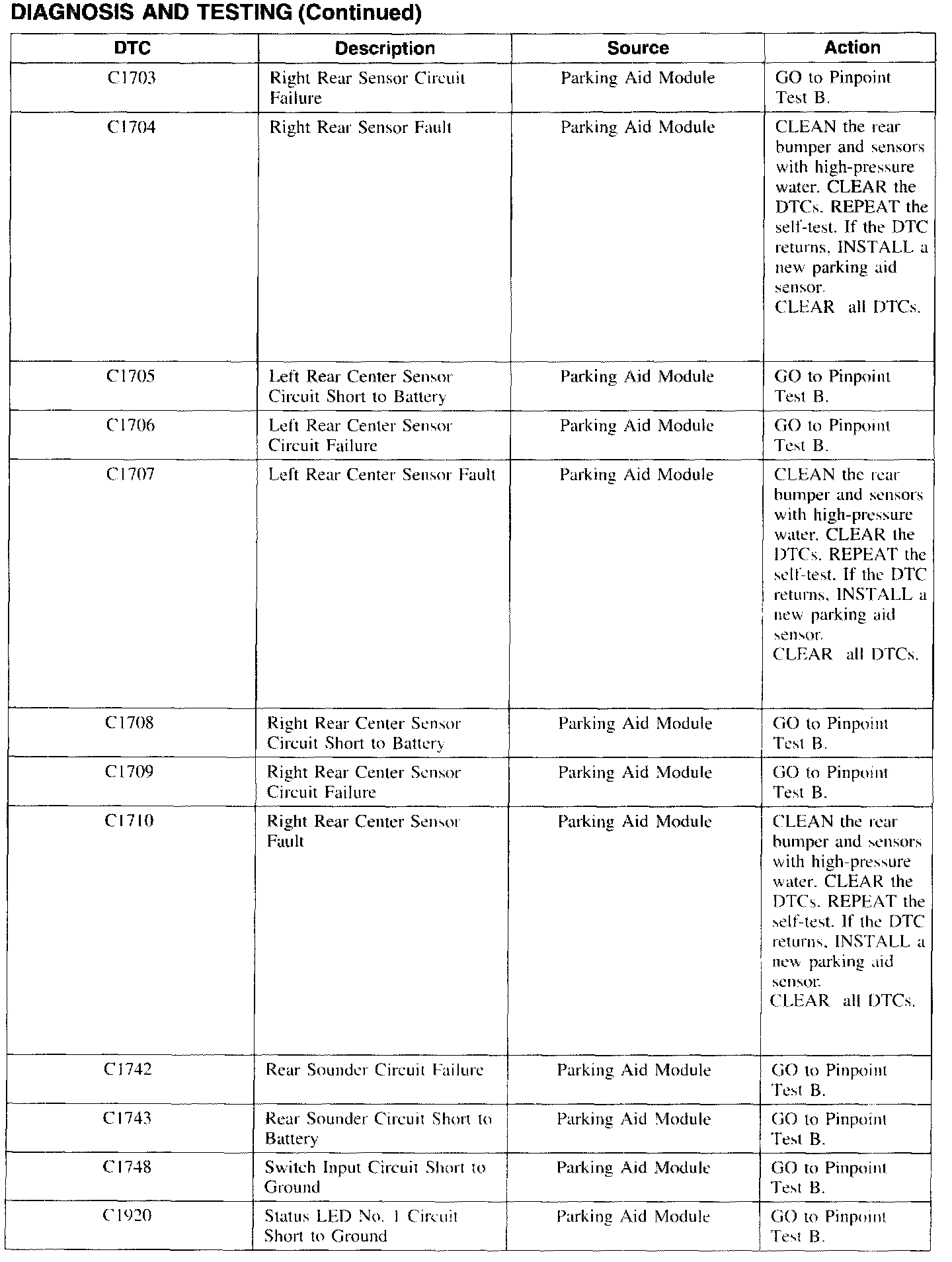

DTC Index C1703 - C1920:
