Using Diagnostic Equipment

KEY PROGRAMMING USING DIAGNOSTIC EQUIPMENT

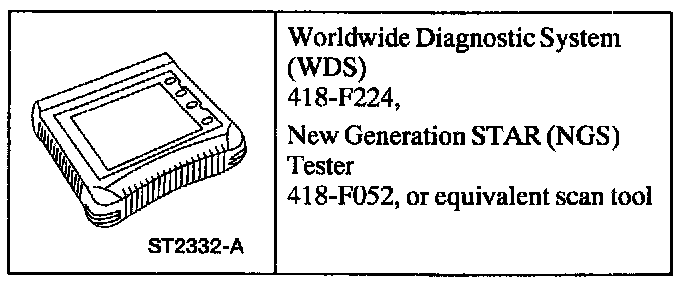

Worldwide Diagnostic System:

SPECIAL TOOL(S)

NOTE:
- This procedure is used when a customer needs keys programmed into the system and does not have two programmed ignition keys available. This procedure is also useful when programmed ignition key(s) have been lost or the ignition switch assembly has been replaced, and it is desired to erase key(s) from the passive anti-theft system (PATS) memory.
- This procedure will erase all programmed ignition keys from the vehicle memory and the vehicle will not start until two keys have been reprogrammed to the vehicle.
- Two PATS encoded keys with the correct mechanical cut must be available to carry out this procedure. One or both of them may be the customer's original keys.
- If additional keys are to be programmed, refer to Key Programming Using Two Programmed Keys. If the remaining keys are with the customer and are not available with the vehicle, then instruct the customer to refer to the Owners Literature under the "Programming Spare Keys Procedure" for instructions on programming the remaining keys. Using Two Programmed Keys

1. Turn the ignition switch from OFF to RUN.
2. Using the diagnostic tool, follow the SECURITY ACCESS to obtain security access.
3. From diagnostic tool menu, select IGNITION KEY CODE ERASE.

4. NOTE: Do NOT select any additional commands from this menu.

Turn the ignition switch to OFF and disconnect the diagnostic tool.

5. Insert the first encoded key into the ignition lock cylinder and turn the ignition switch to RUN for one second.
6. Insert the second encoded key into the ignition lock cylinder and turn the switch to the RUN position for one second.
7. Remove the second encoded key from the ignition lock cylinder.
8. The vehicle should now start with both ignition keys.
