PINPOINT TEST G: THE ENGINE DOES NOT CRANK - THE ANTI-THEFT LED PROVES OUT NORMALLY

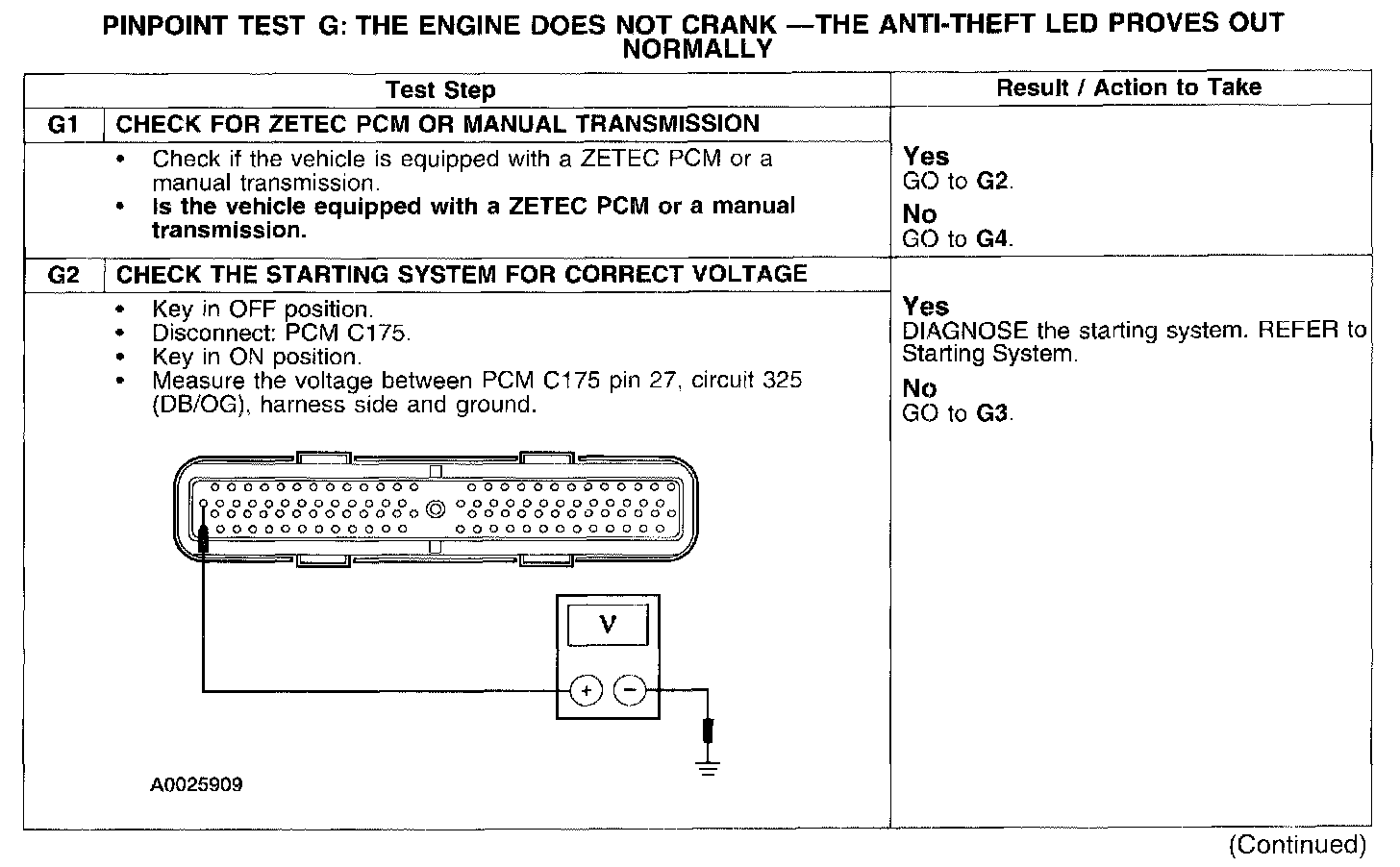

Test G1-G2:

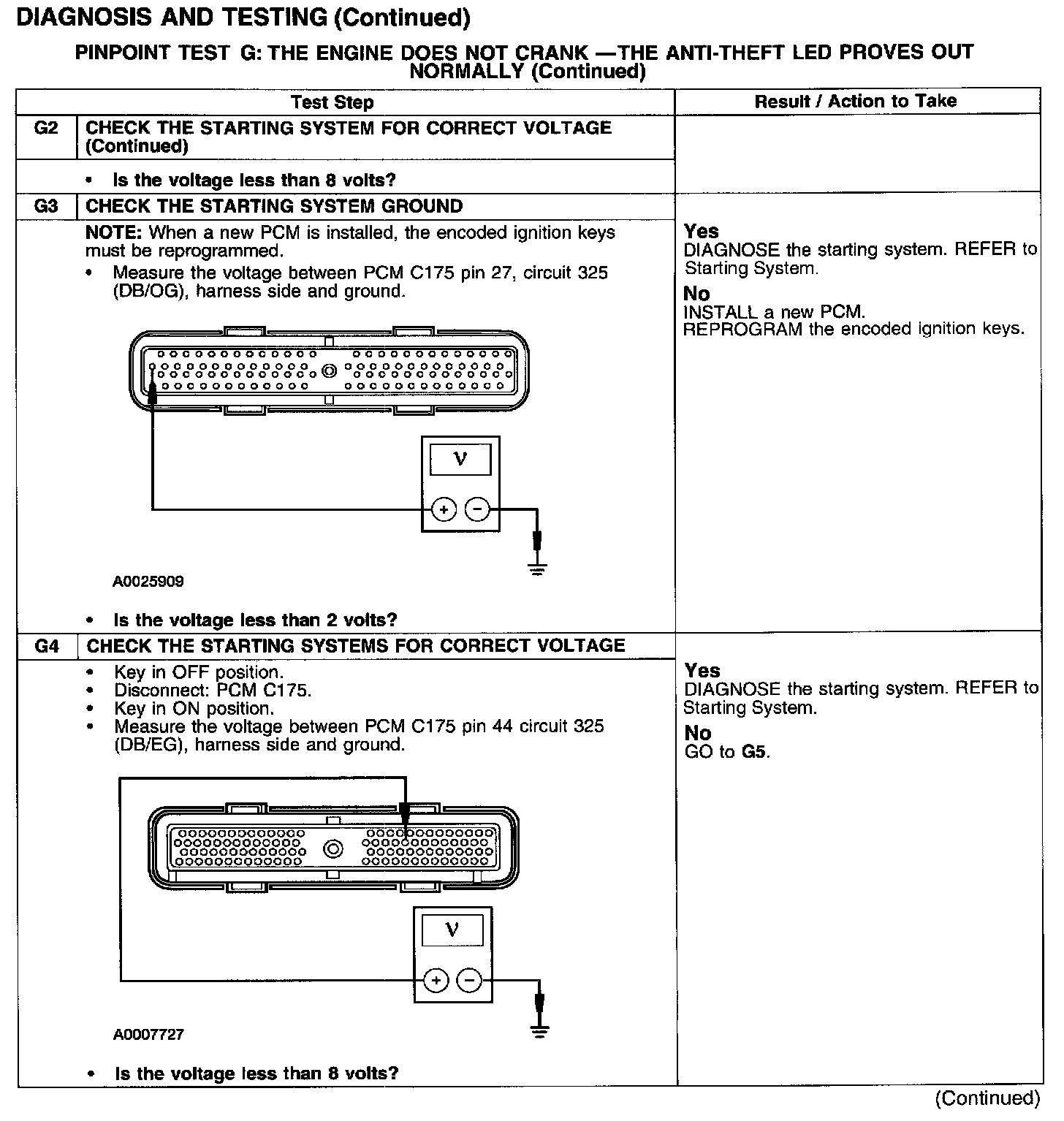

Test G2-G4:

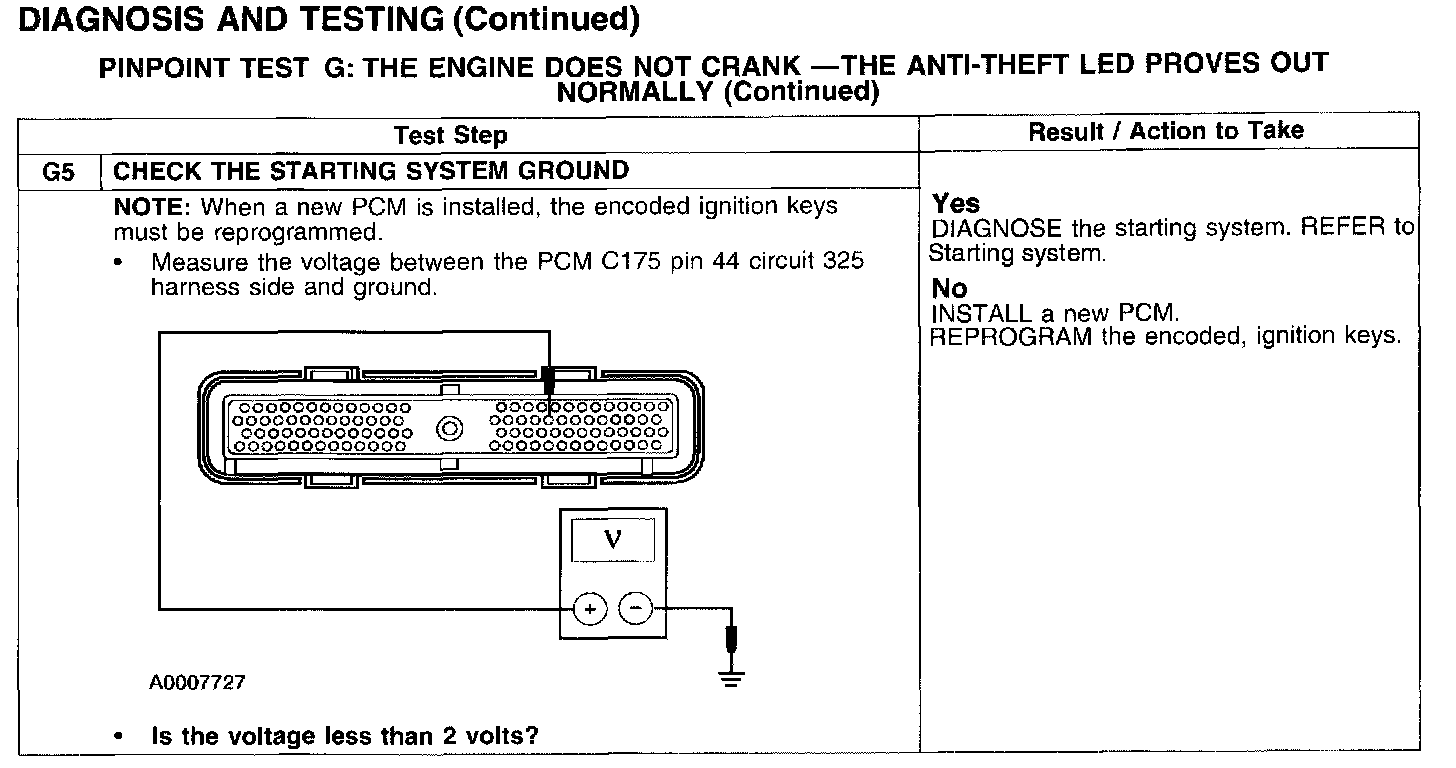

Test G5:
