PINPOINT TEST E: PATS TRANSCEIVER MODULE SIGNAL IS NOT RECEIVED

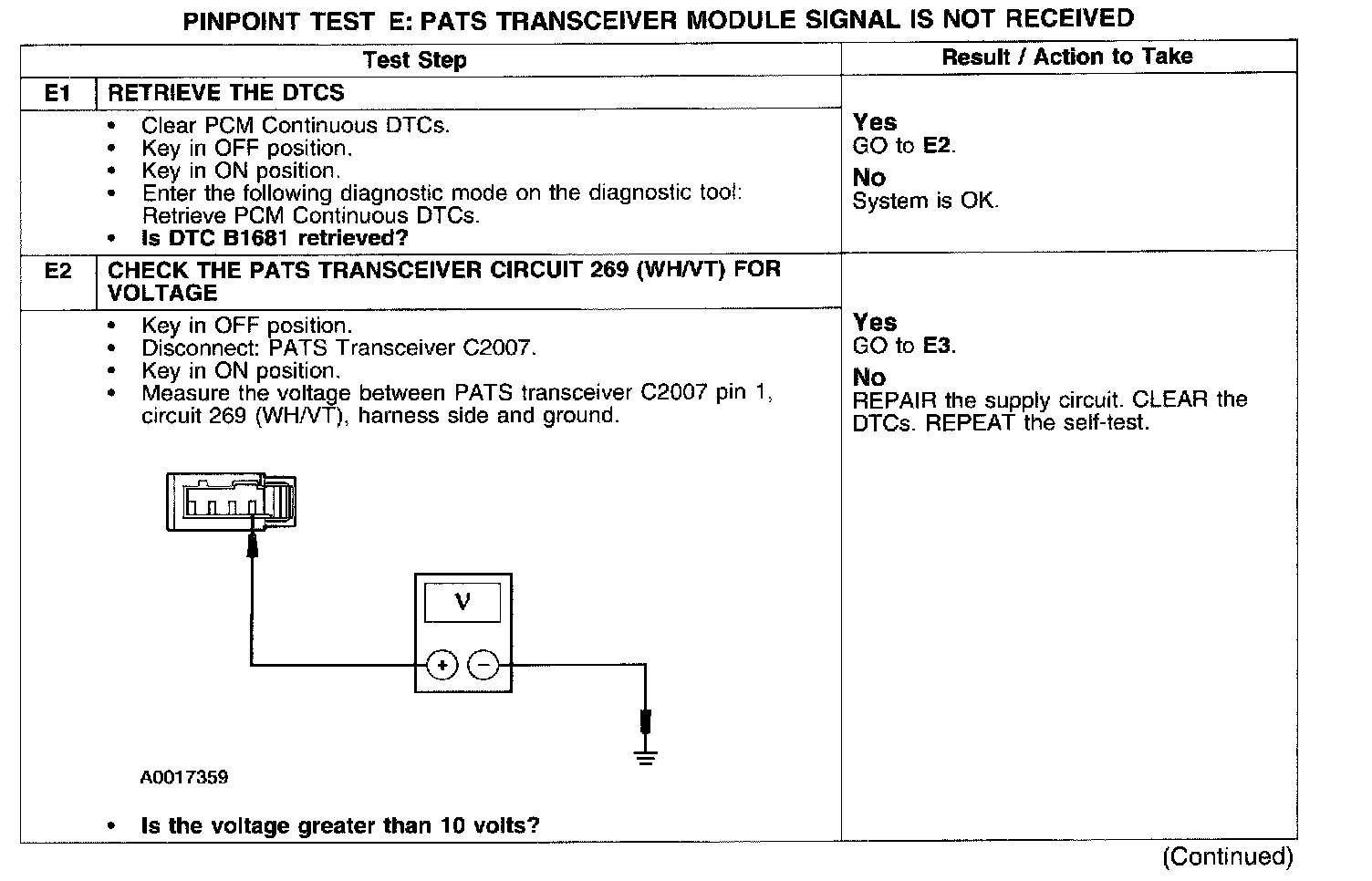

Test E1-E2:

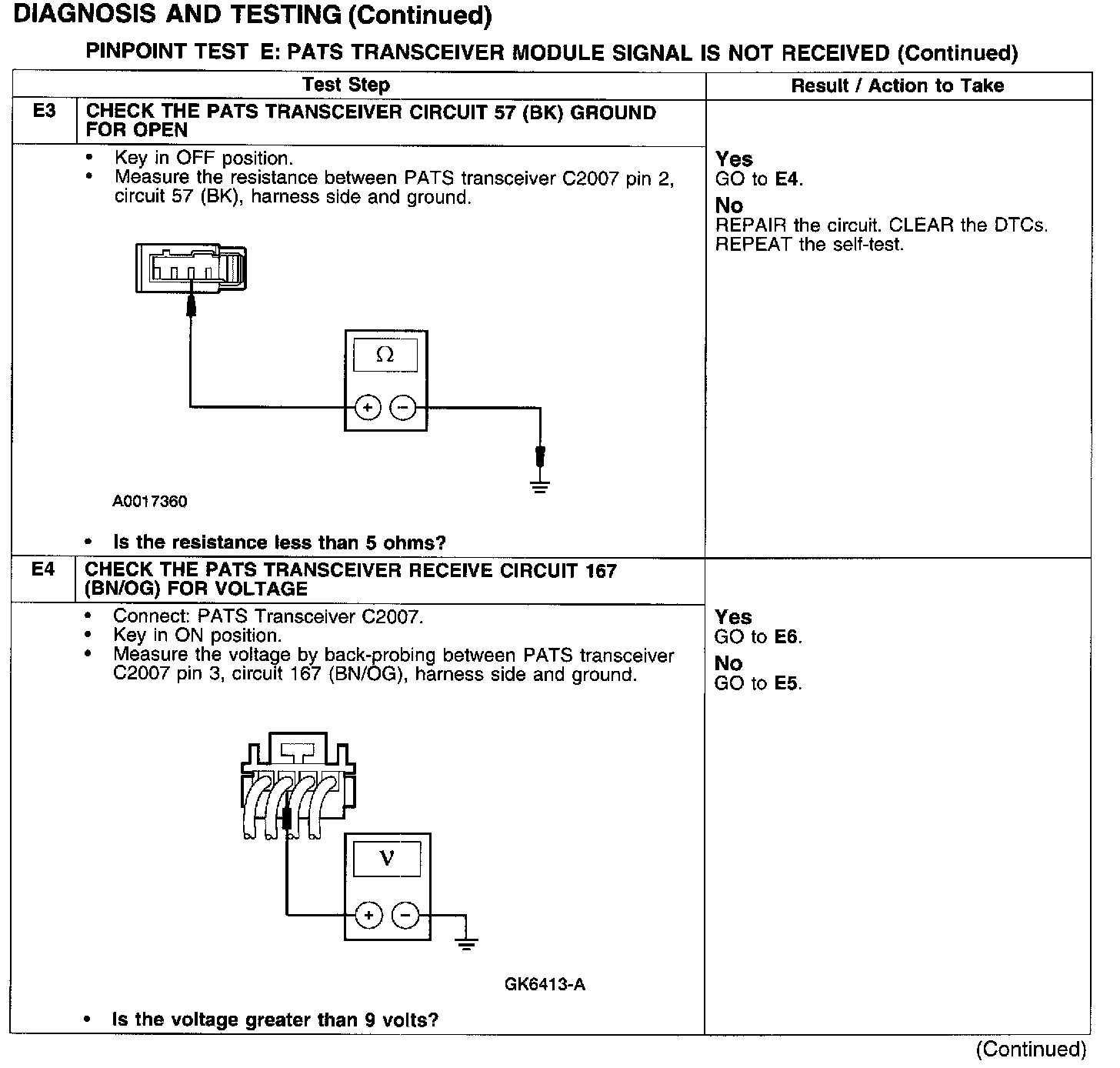

Test E3-E4:
Test E5-E7:

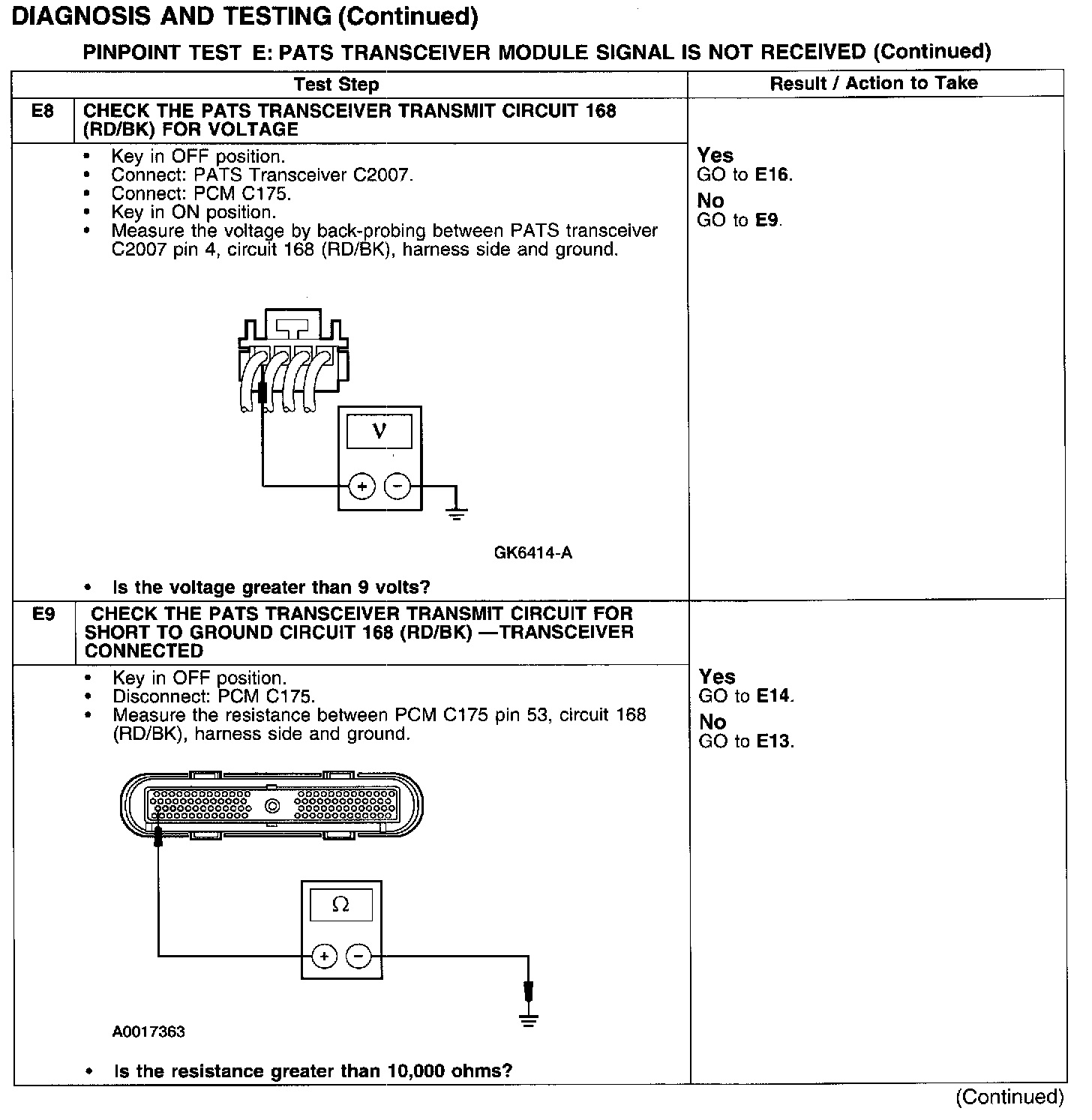

Test E8-E9:

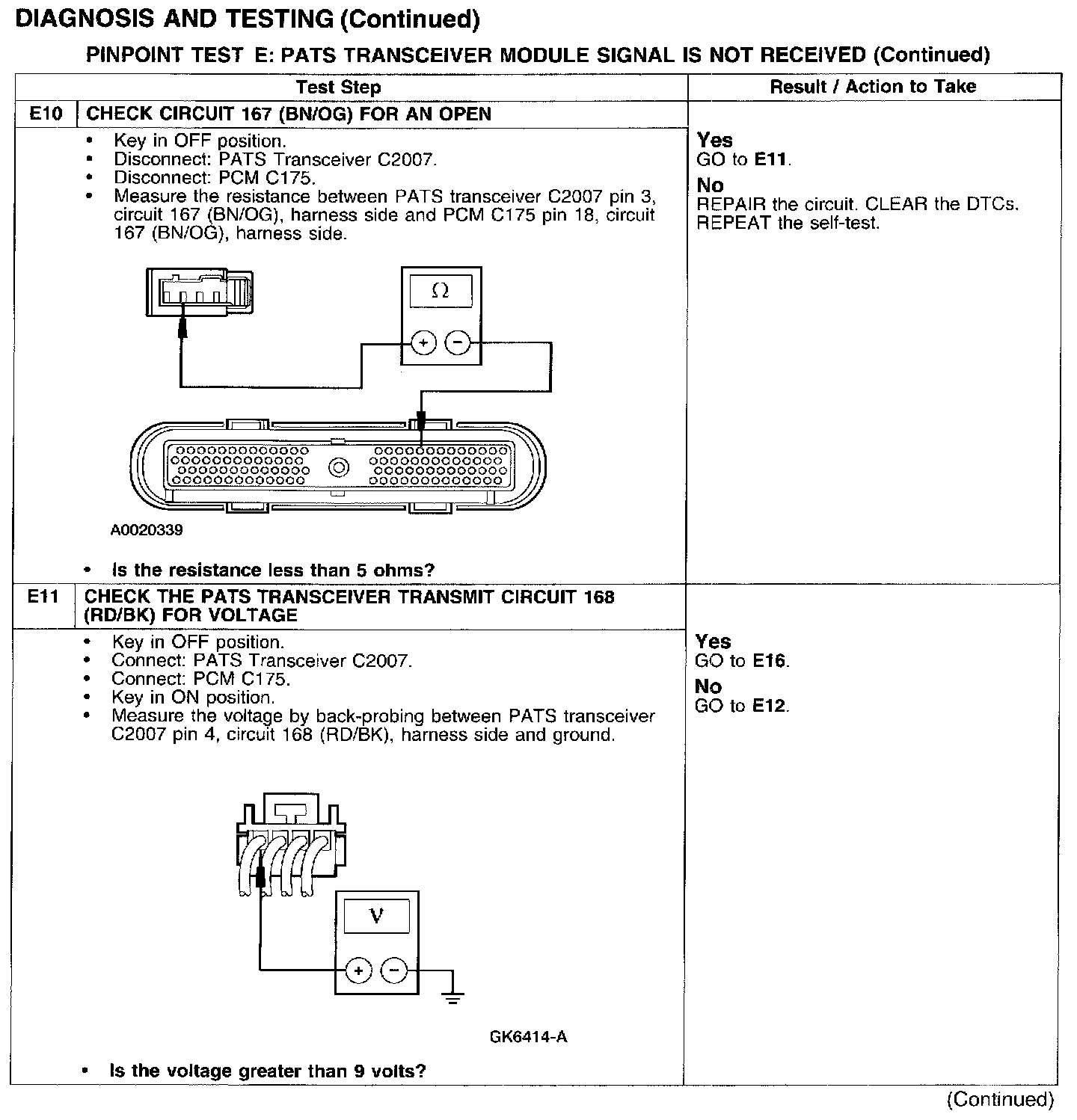

Test E10-E11:

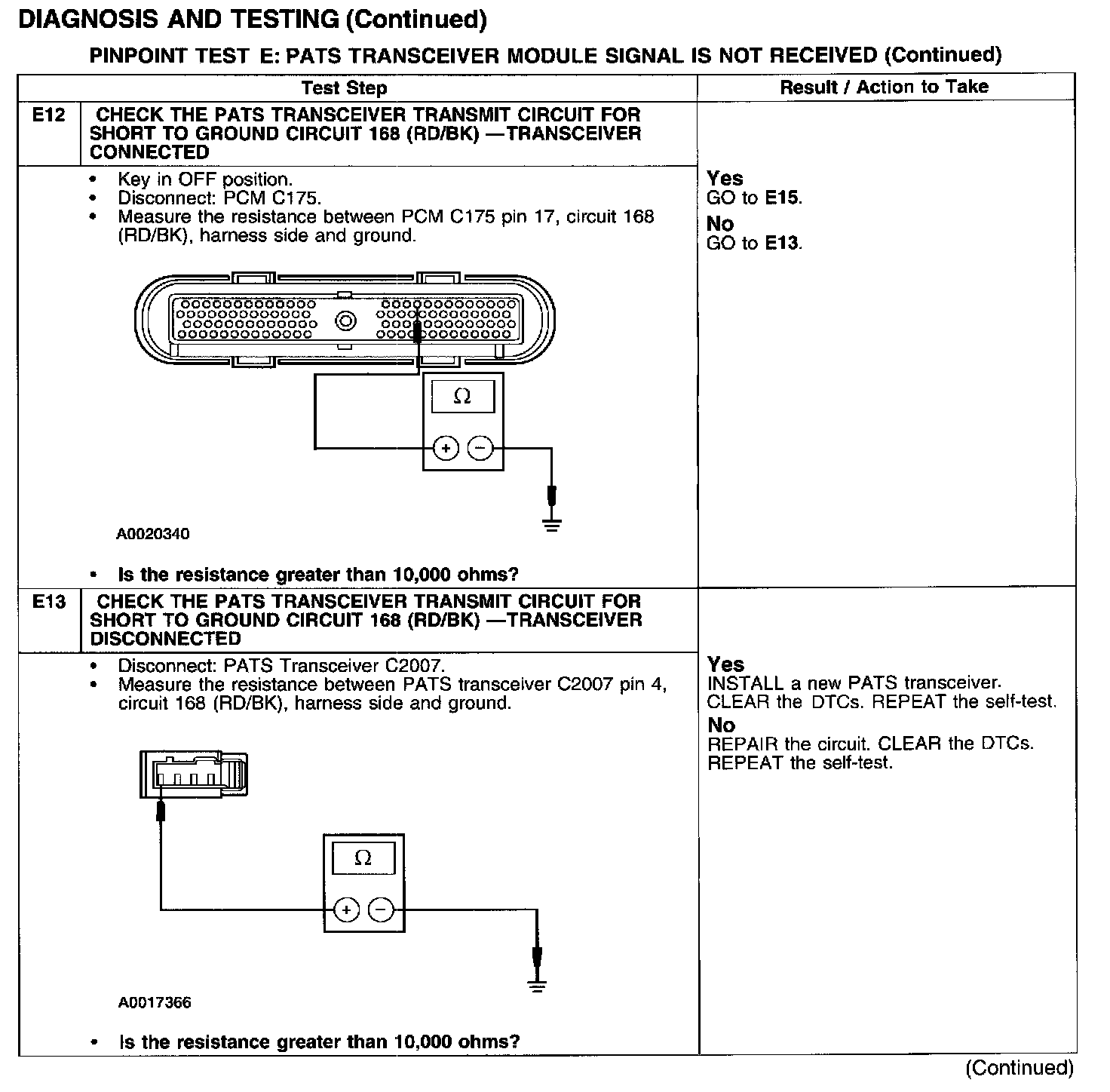

Test E12-E13:

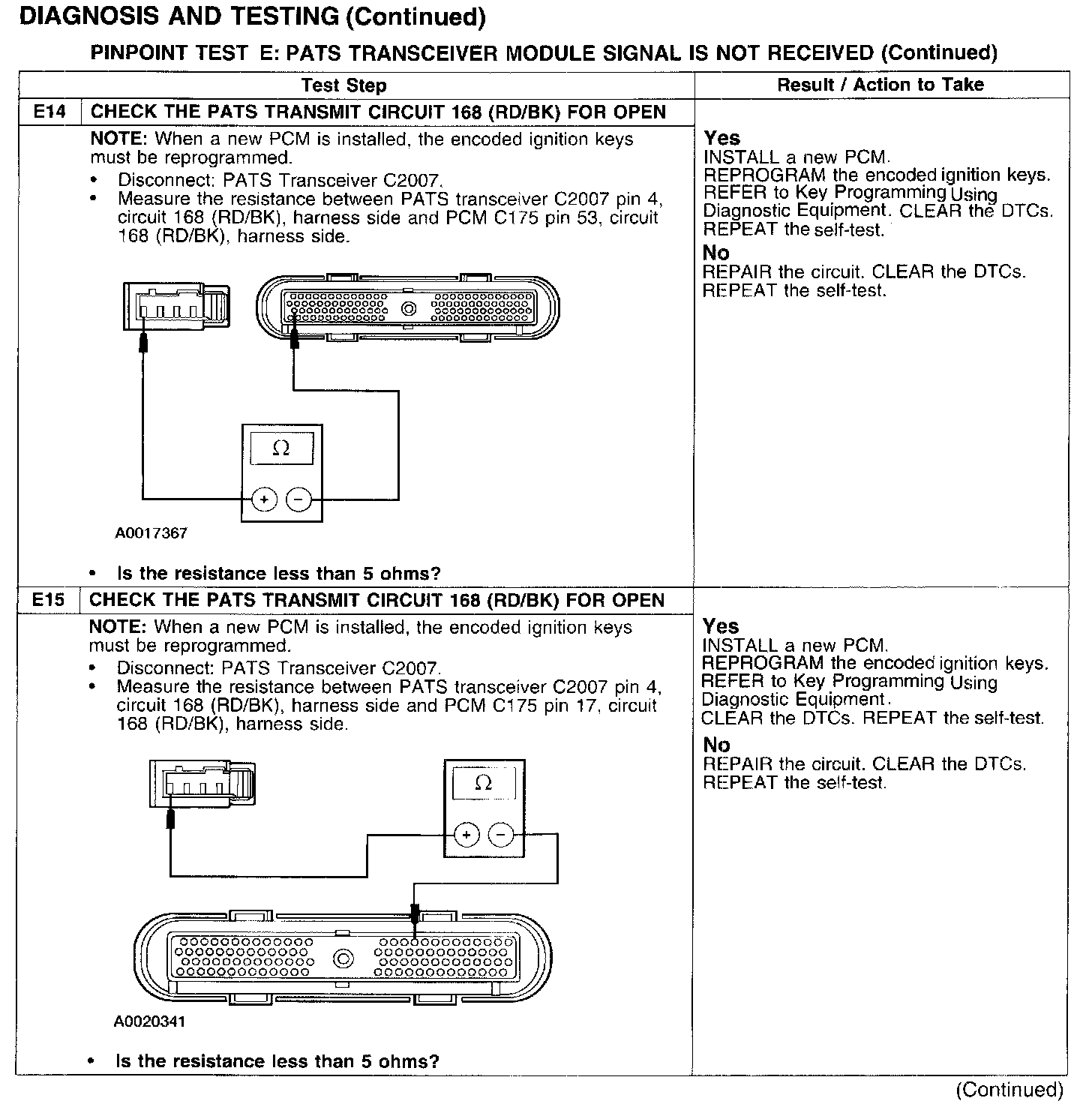

Test E14-E15:

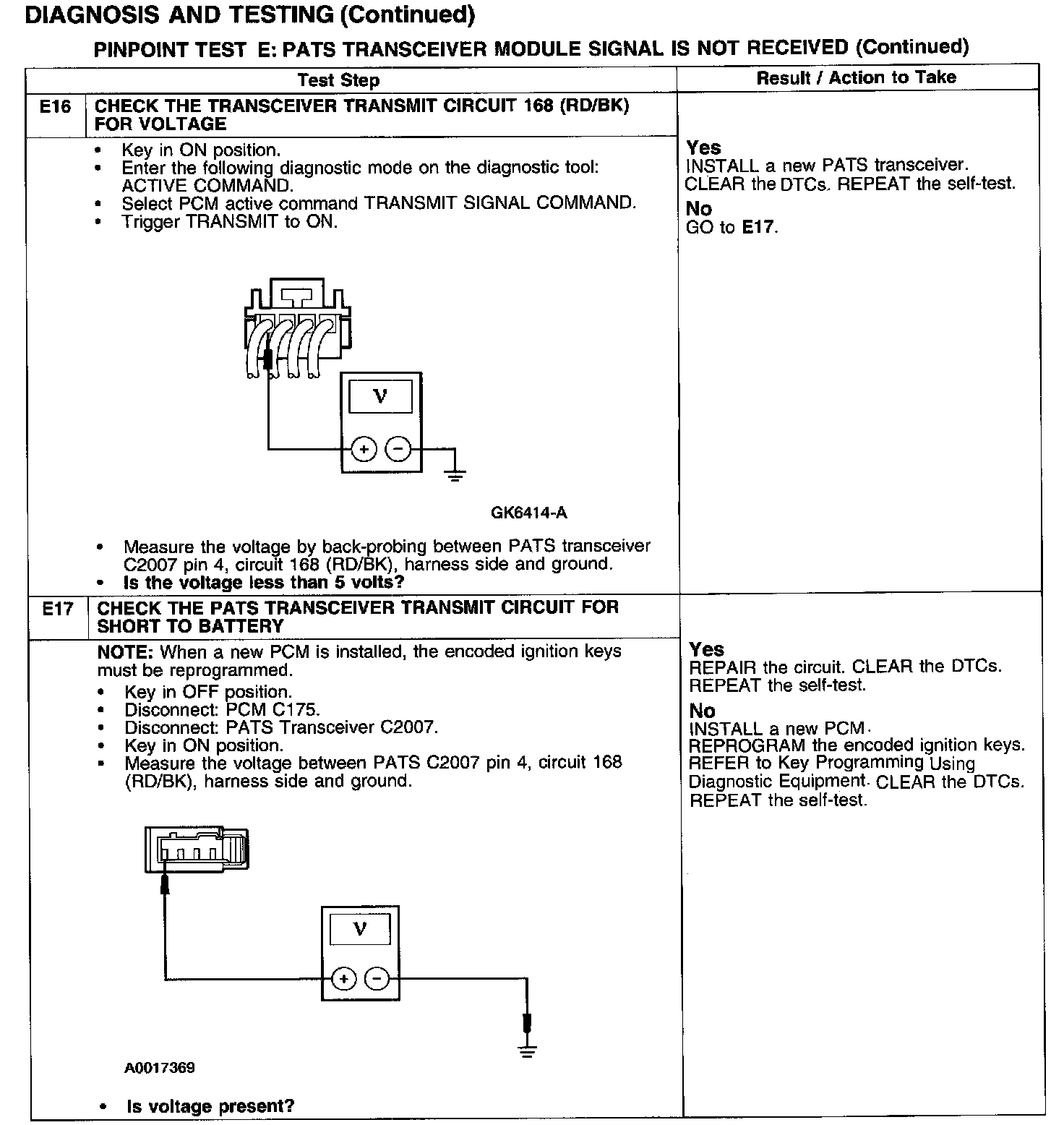

Test E16-E17:
