Passive Anti-Theft System (PATS)
>>
Test B
Test B

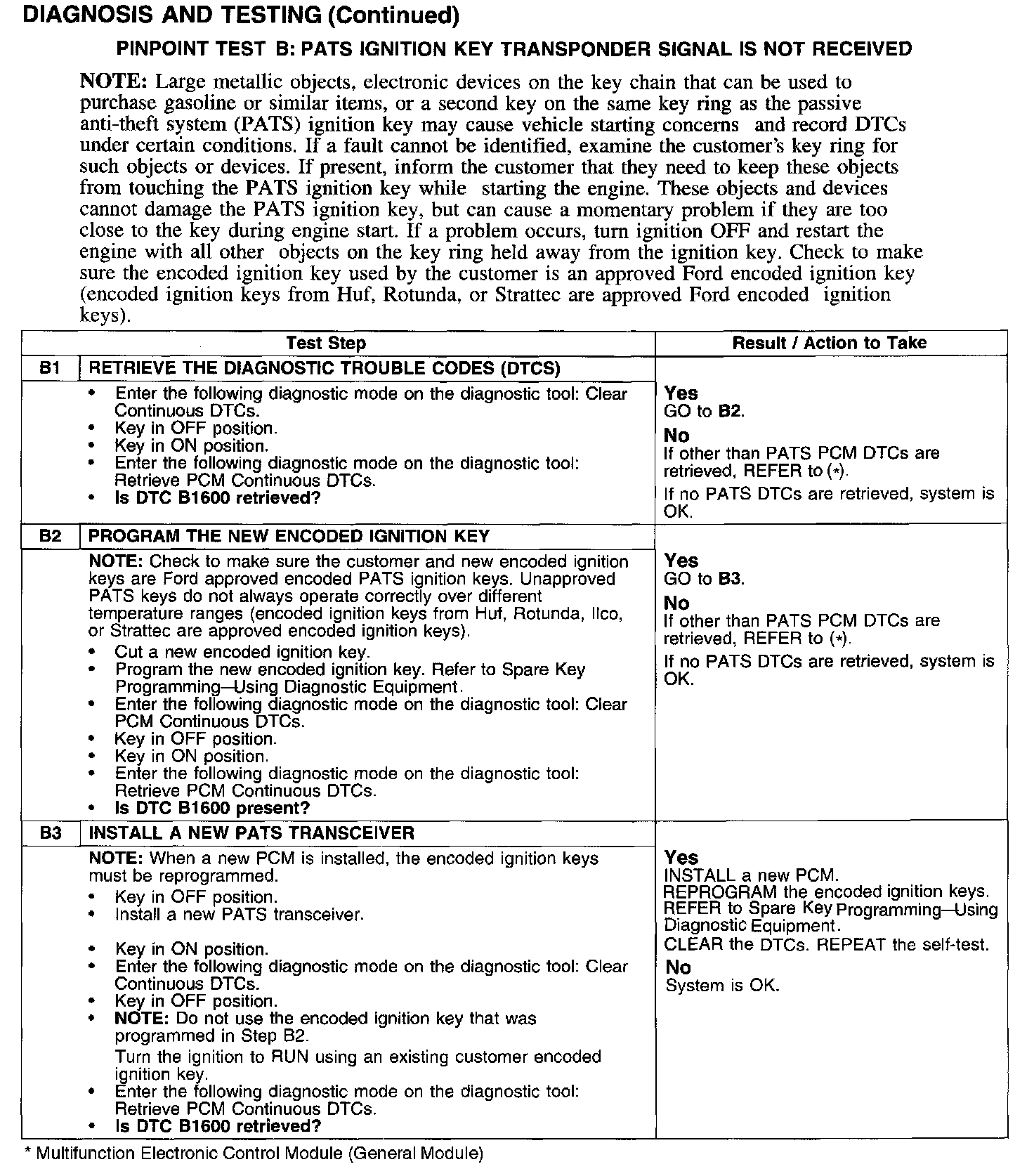

PINPOINT TEST B: PATS IGNITION KEY TRANSPONDER SIGNAL IS NOT RECEIVED
Test B1-B3:
