Test D

PINPOINT TEST D: THE ALARM SYSTEM DOES NOT ARM/DISARM - HEADLAMPS, FLASHERS OR HORN DOES CYCLE DURING ANTI-THEFT ACTIVATION

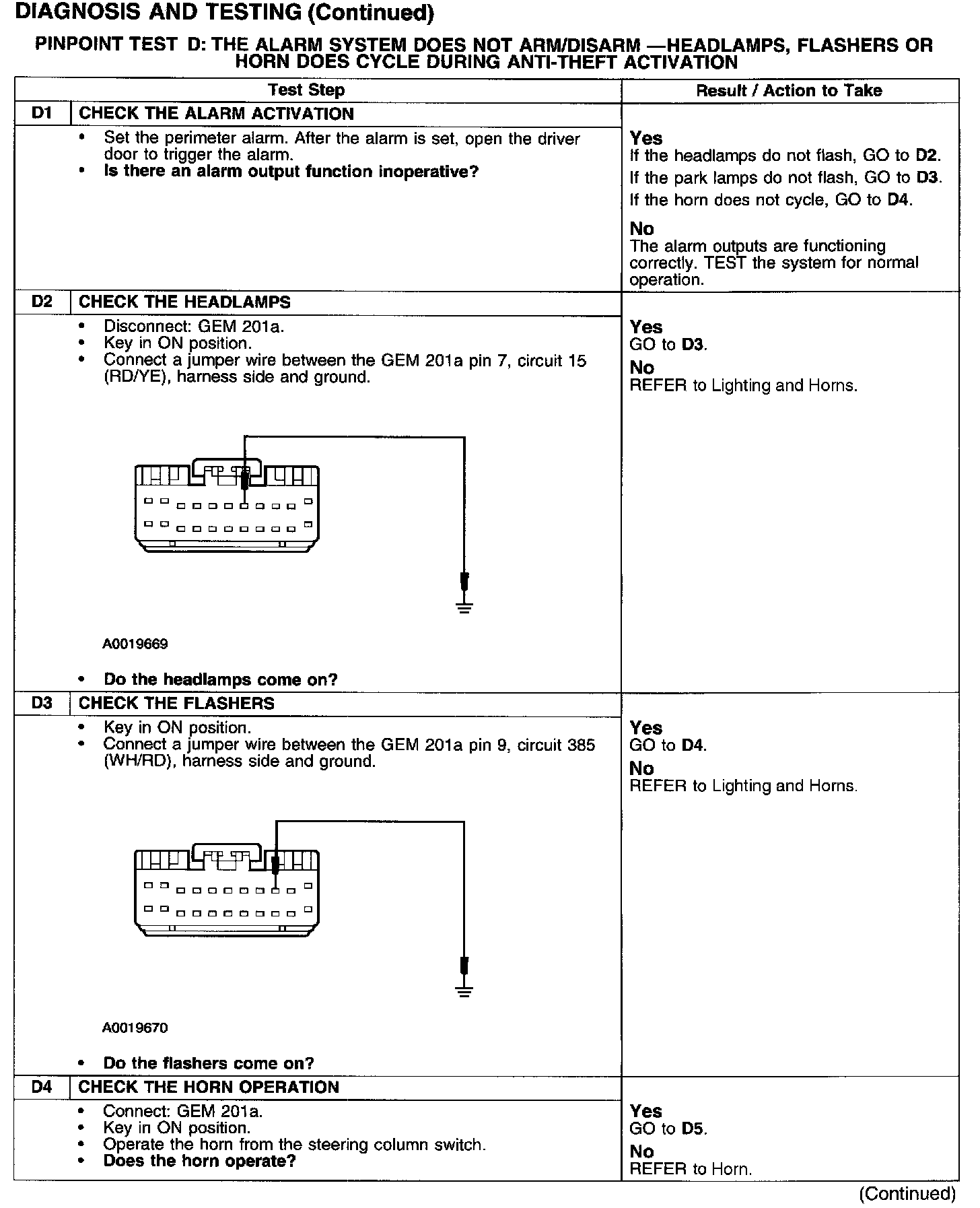

Test D1-D4:

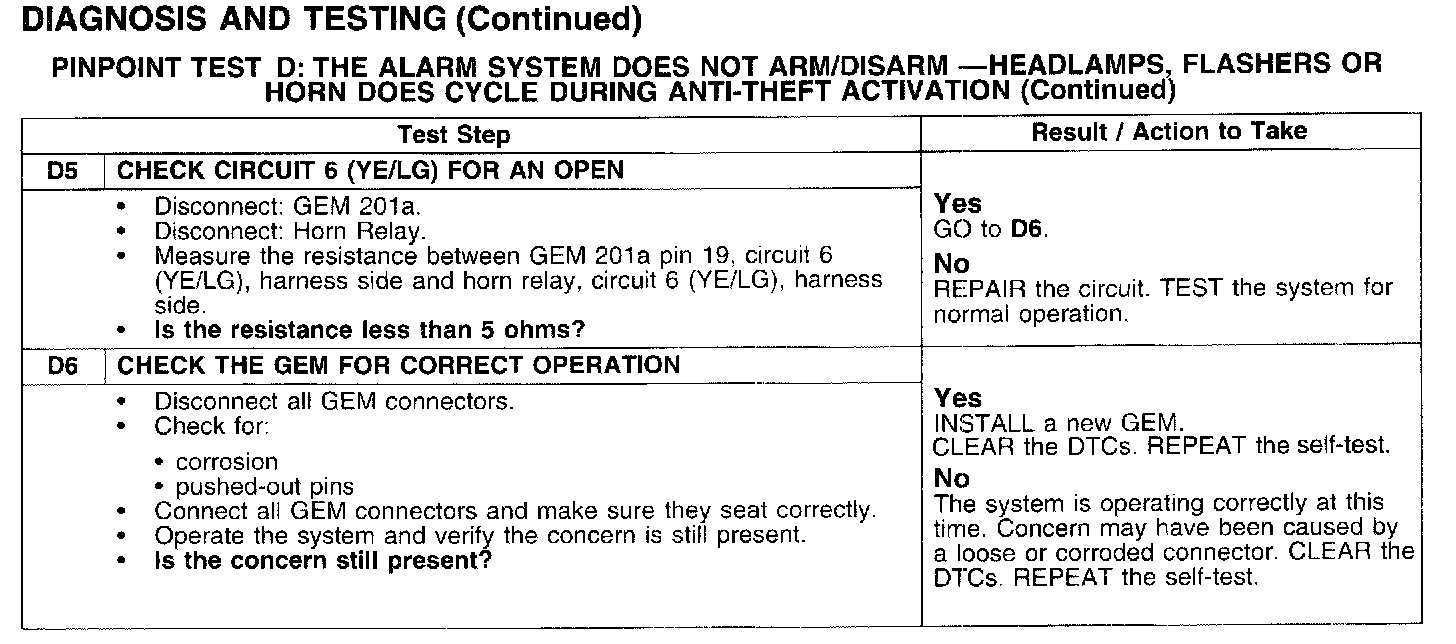

Test D5-D6:
