PINPOINT TEST A: THE ALARM SYSTEM DOES NOT ARM/DISARM - FROM A DOOR LOCK CYLINDER SWITCH

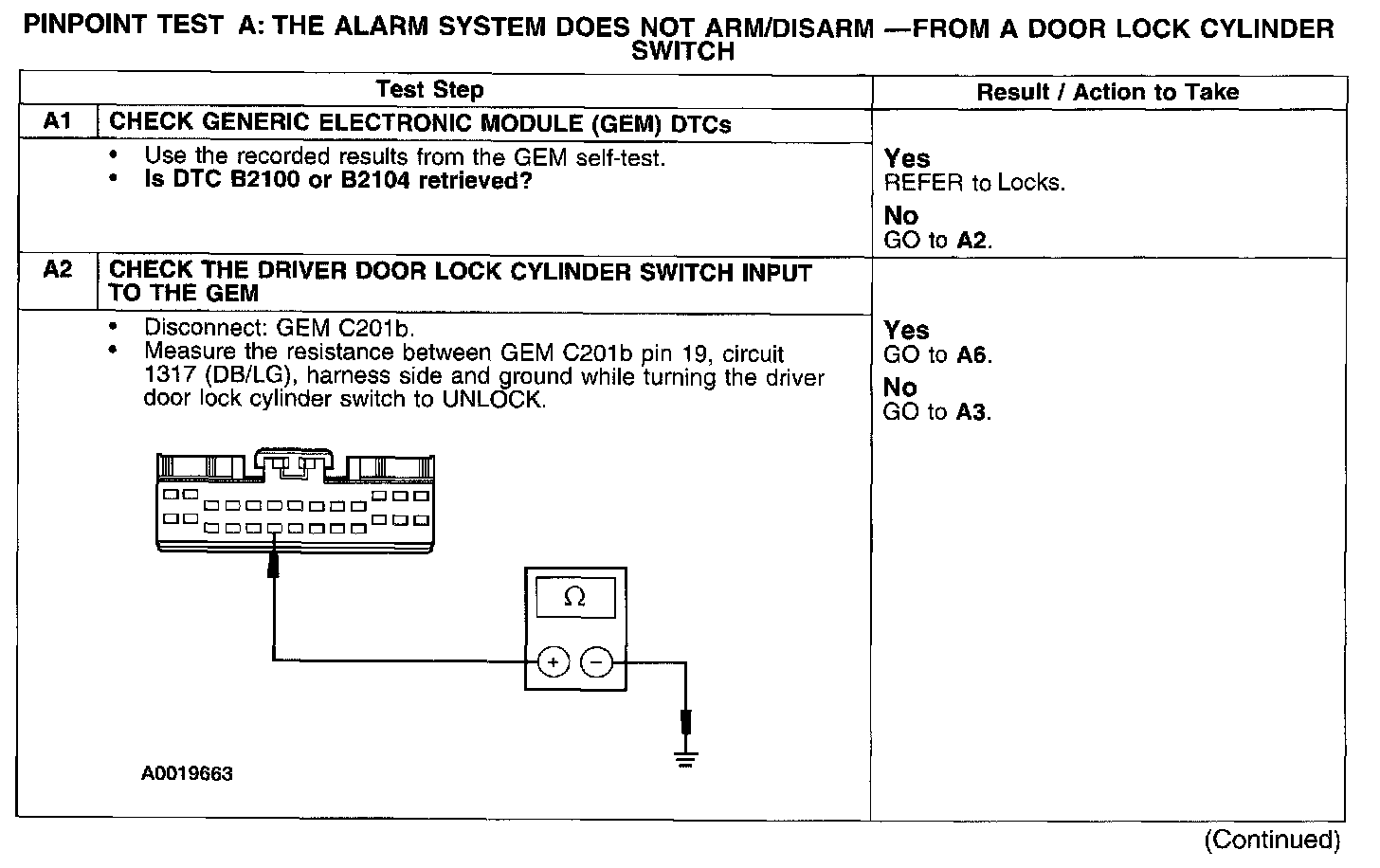

Test A1-A2:

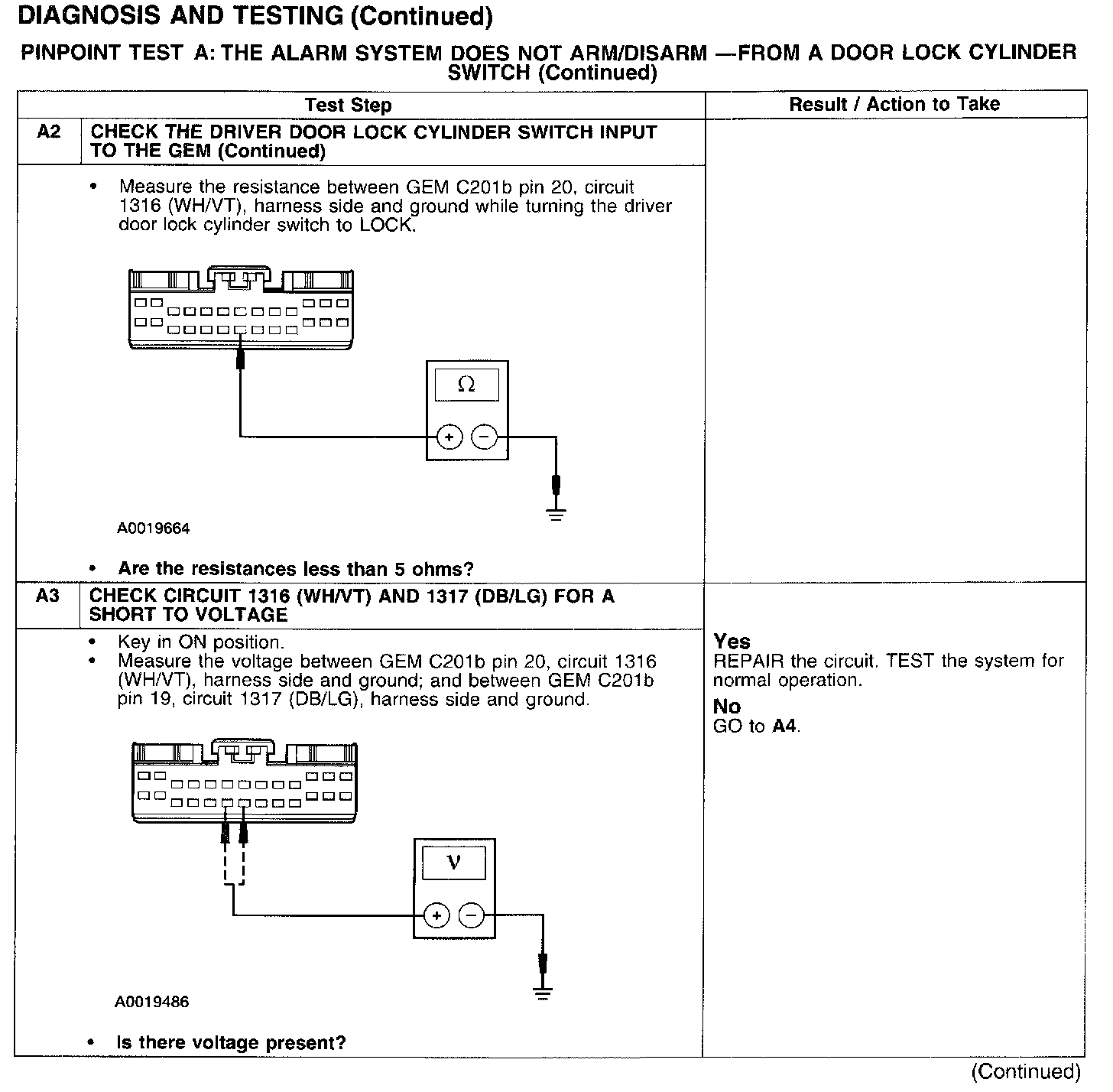

Test A2-A3:

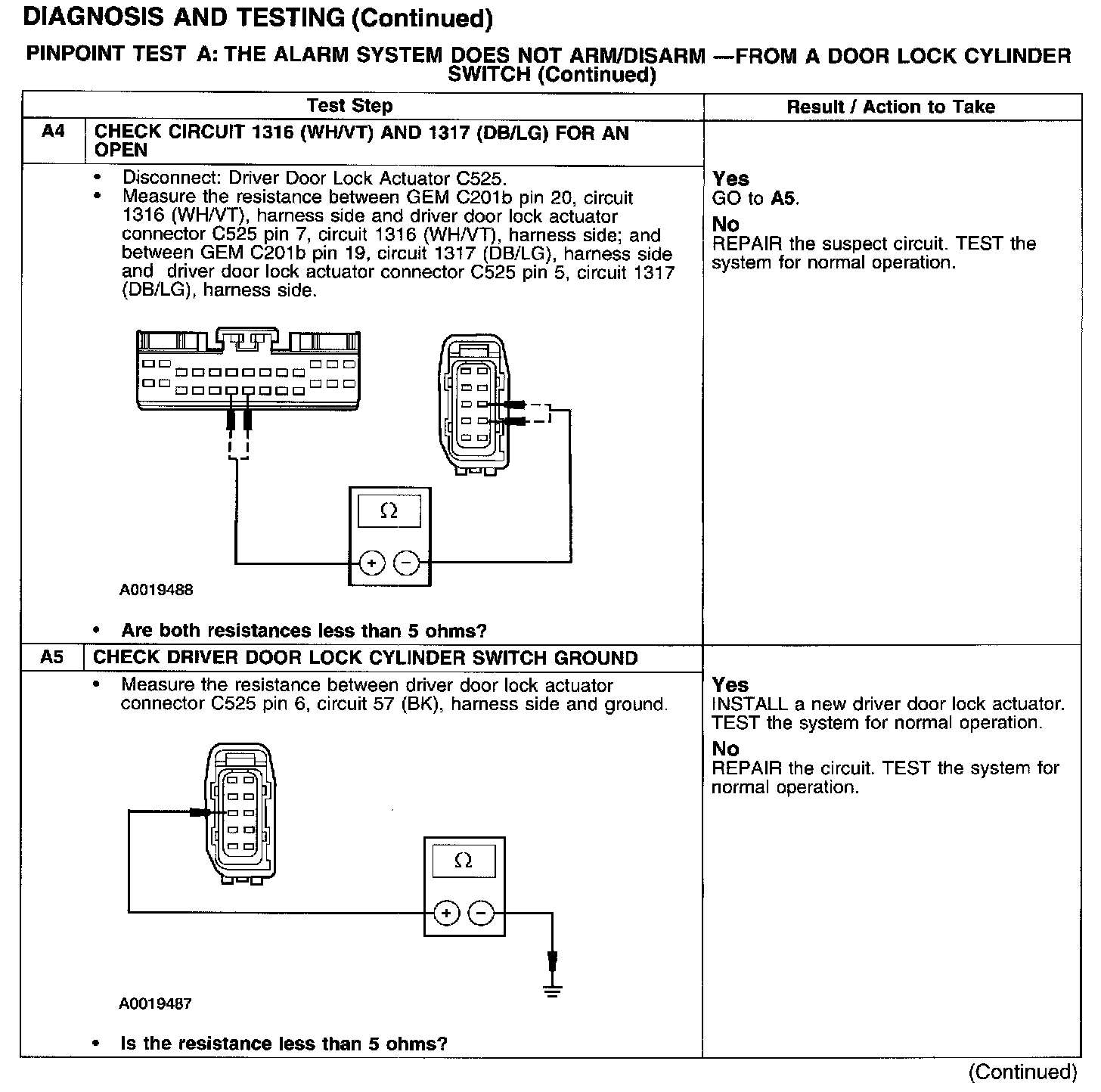

Test A4-A5:

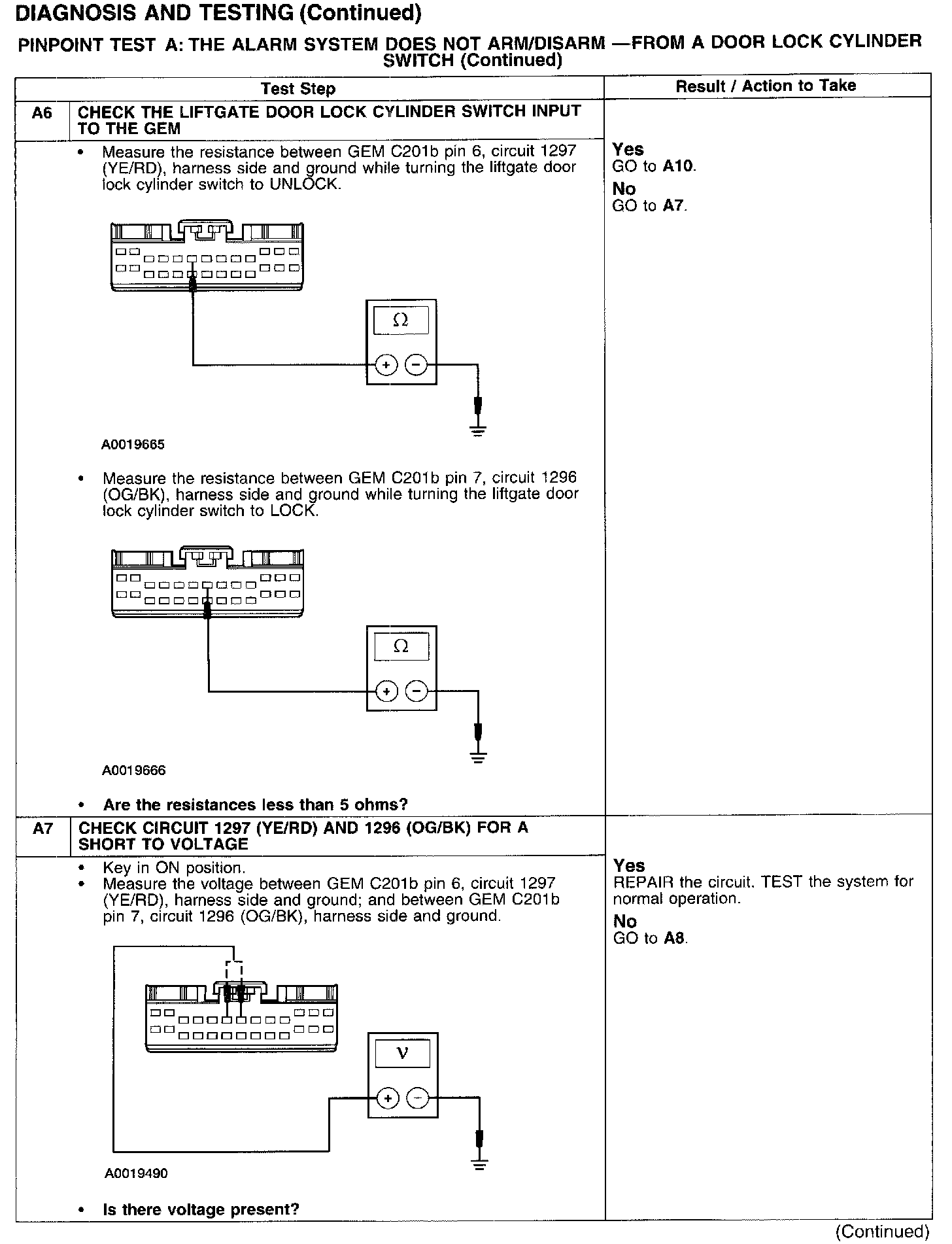

Test A6-A7:

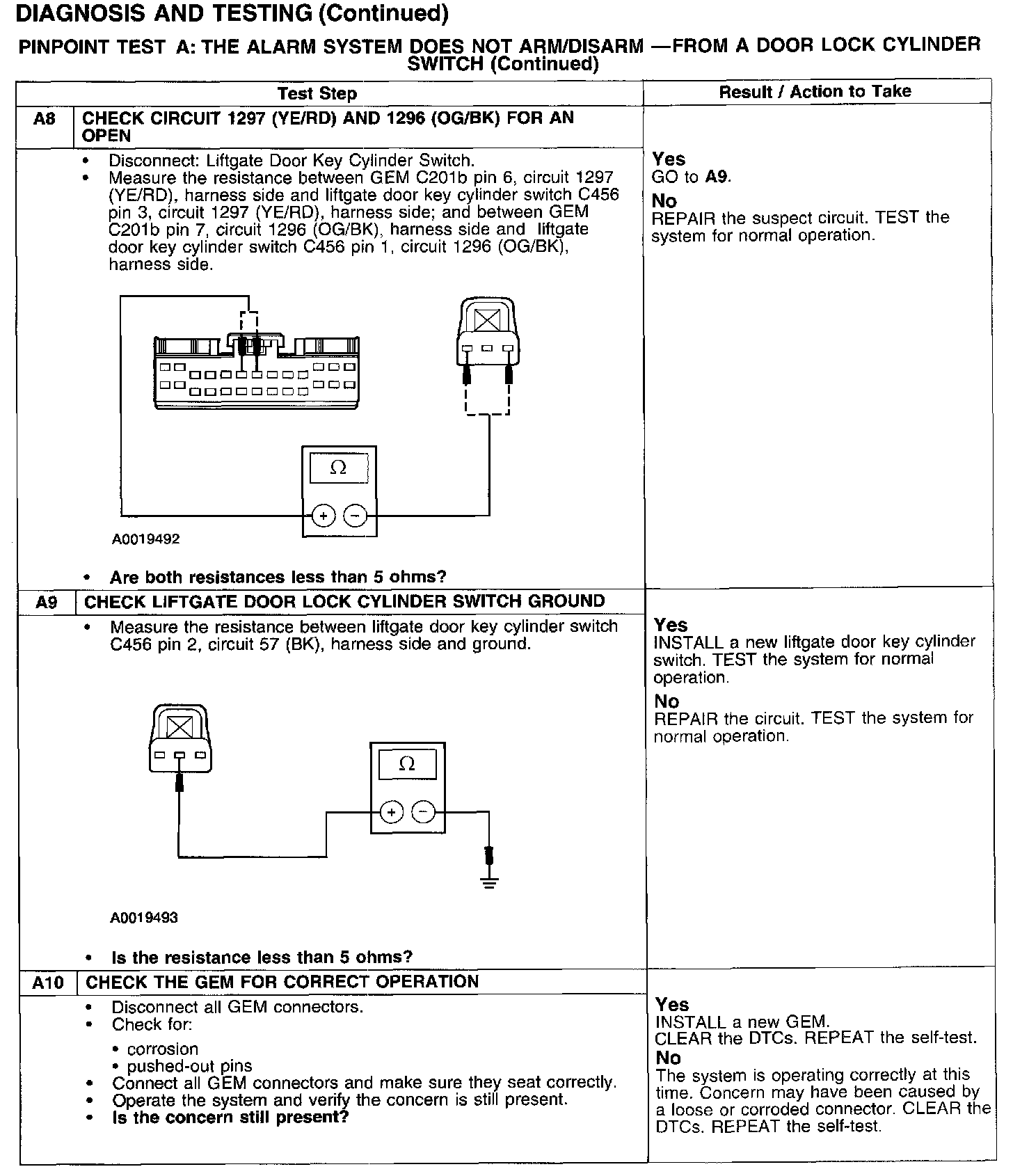

Test A8-A10:
