Antenna, Radio: Service and Repair

ANTENNA BASE

REMOVAL

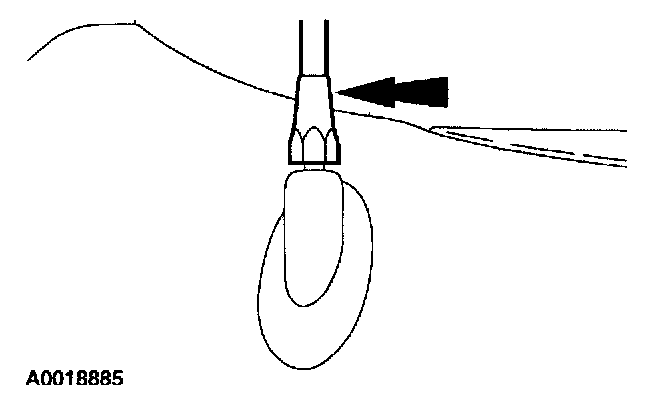

1. Remove the antenna mast.
2. Remove the right lower A-pillar trim.

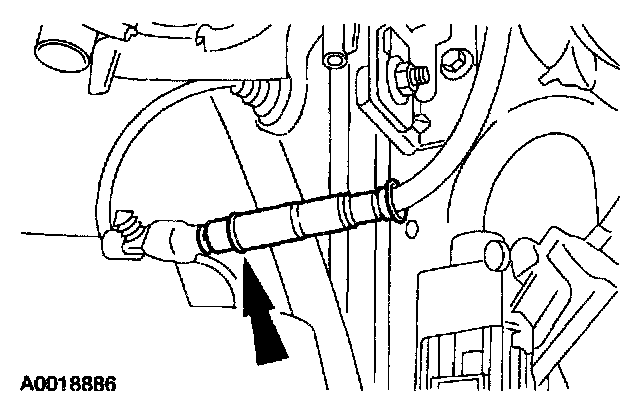

3. Disconnect the antenna cable connector and pull the pin-type retainer away from the body.
4. Remove the fender splash shield.

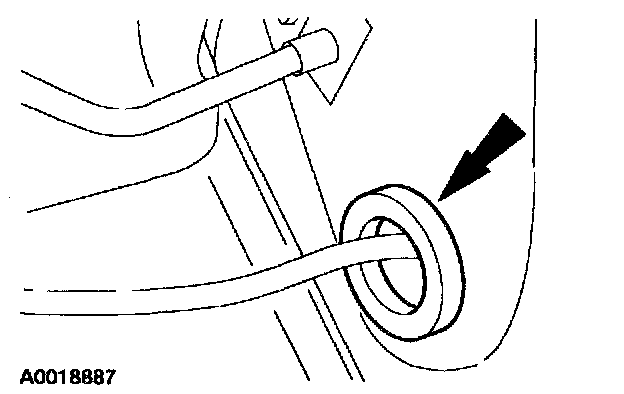

5. Remove the rubber grommet and pull the cable into the fender area.







6. Remove the antenna.

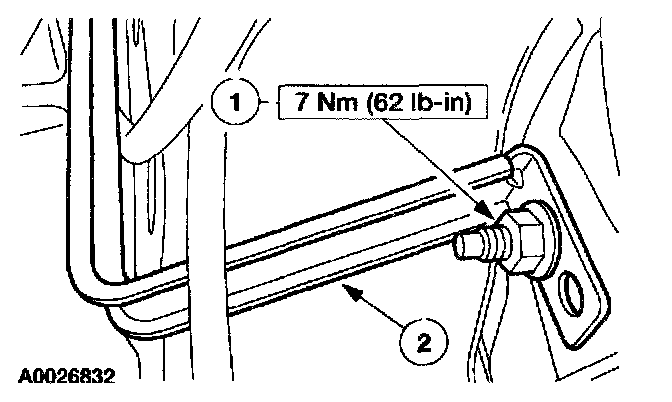

1 Remove the nut.
2 Remove the antenna out through the fender opening.

INSTALLATION
1. To install, reverse the removal procedure.
