Antenna Cable: Service and Repair

ANTENNA UPPER CABLE

REMOVAL
1. Remove the audio unit.
2. Remove the right lower A-pillar trim.







3. Disconnect the antenna cable connector.

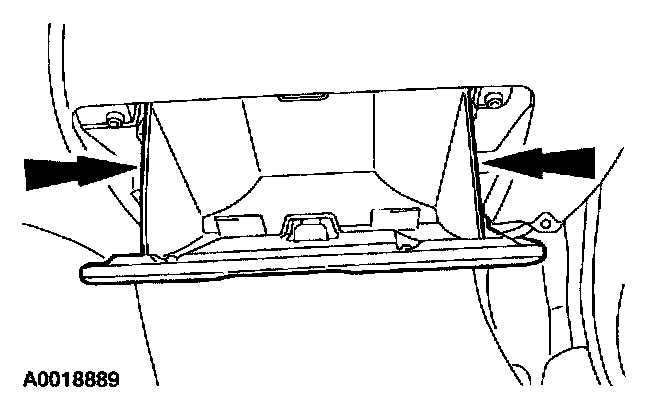

4. Lower the glove box door.







5. Remove the three pin-type retainers holding the lead-in cable.

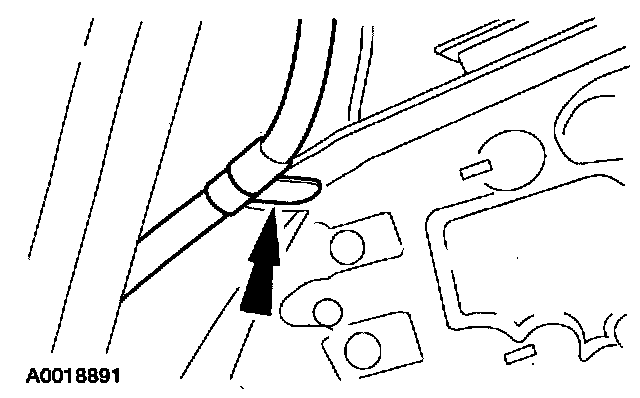

6. Remove the antenna cable clip fastened to the center instrument panel support.
7. Remove the cable through the glove box opening.

INSTALLATION
1. To install, reverse the removal procedure.
