Tests FG: Speed Control Command Switch (SCCS)

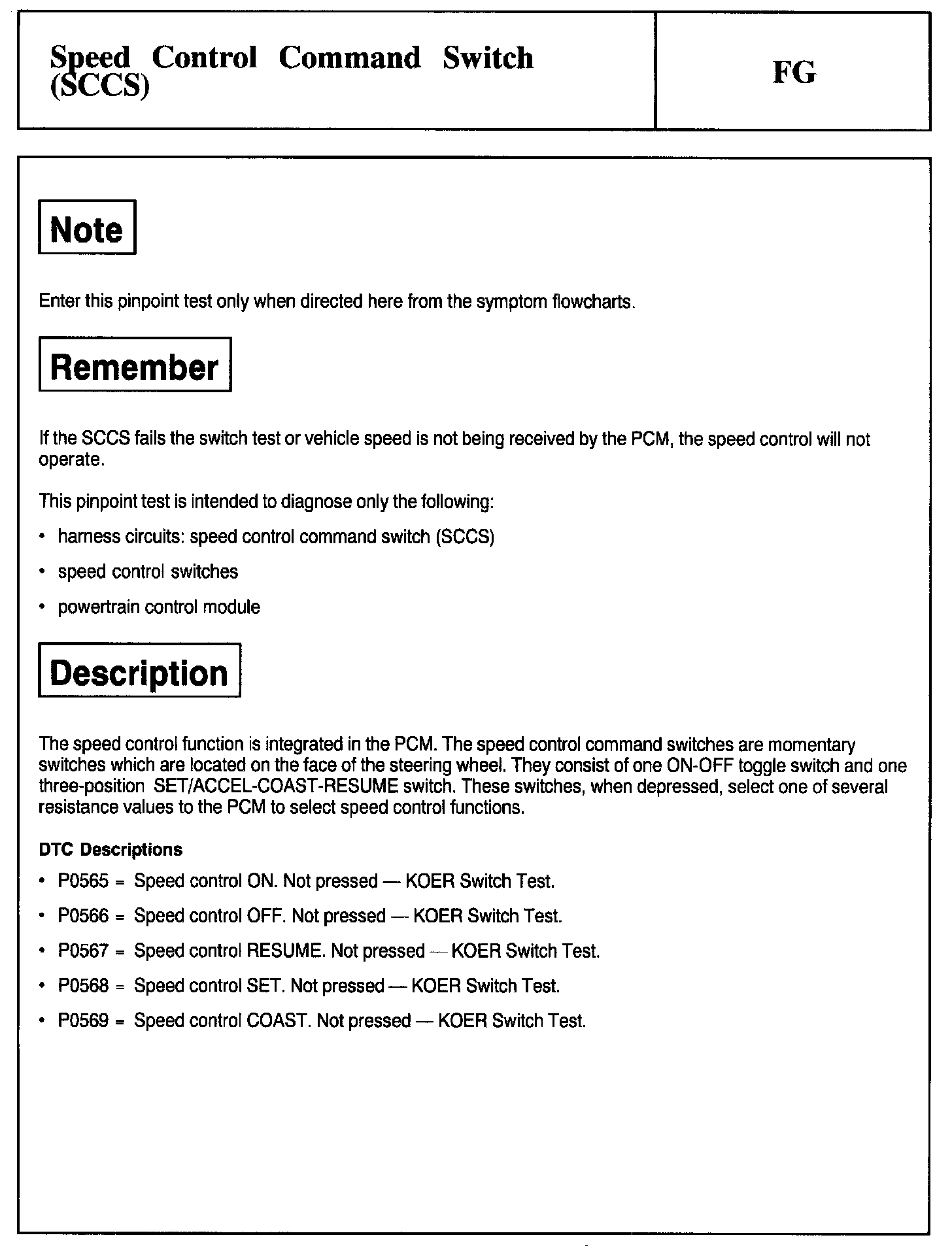

Note, Remember and Description:

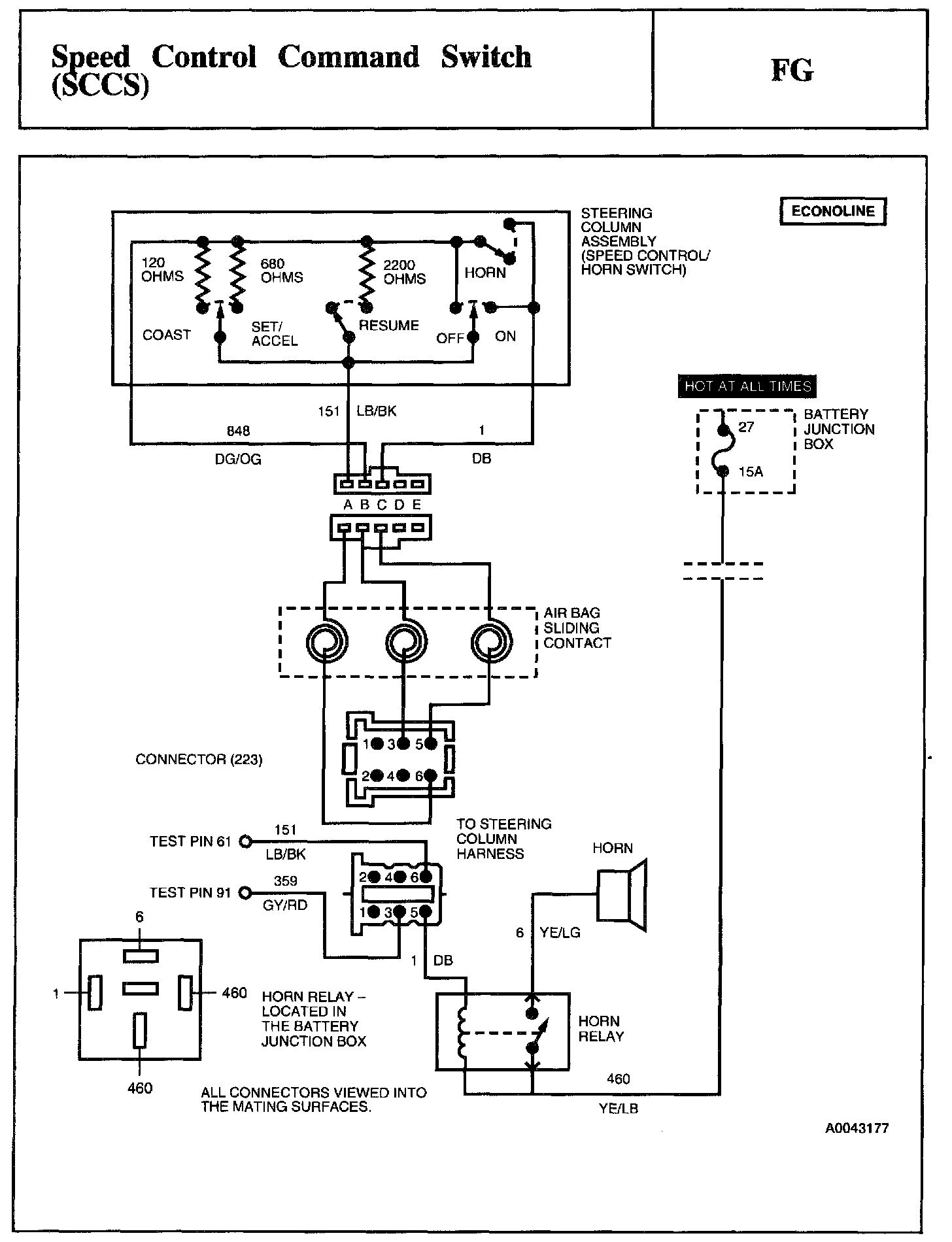

Test Schematic:

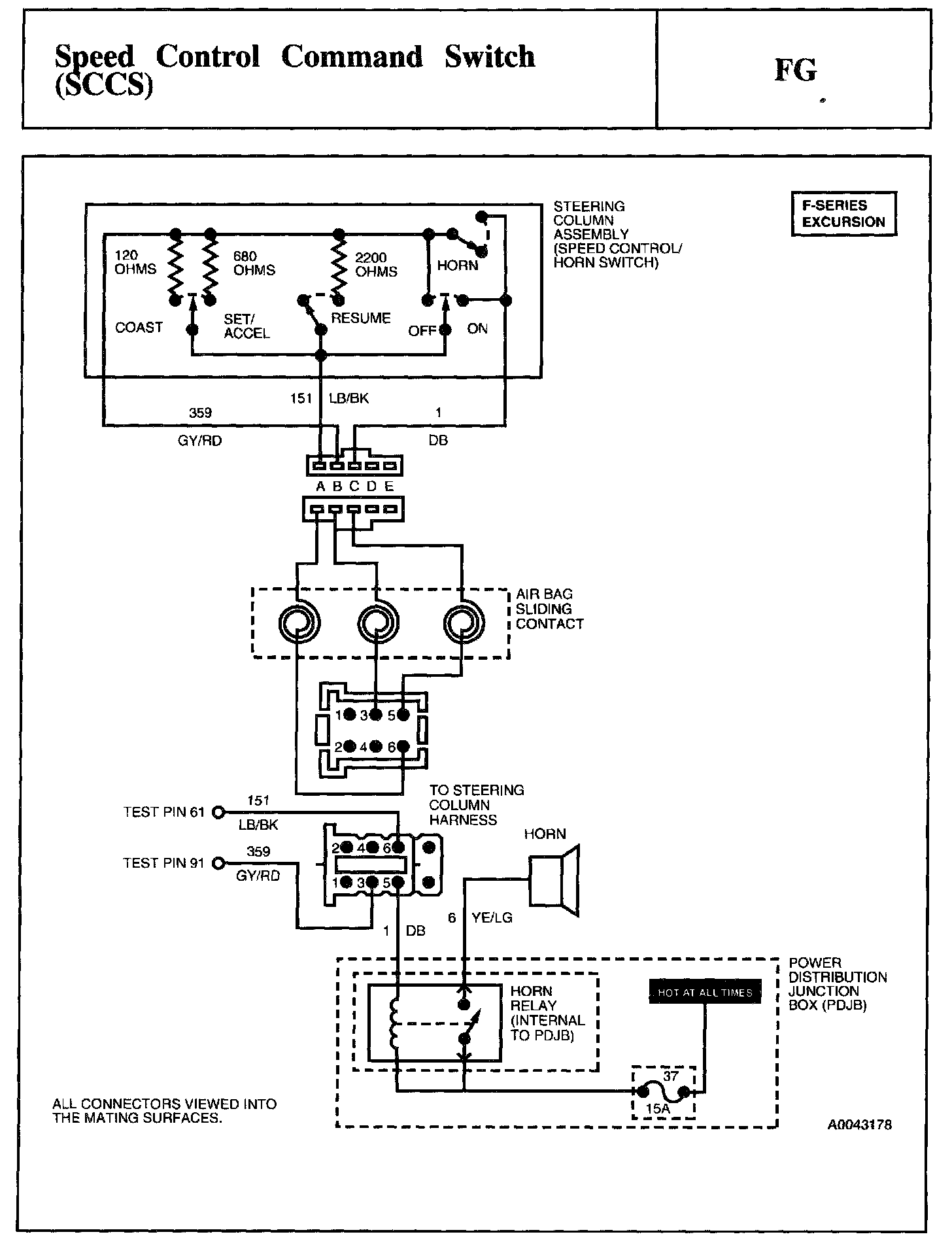

Test Schematic:

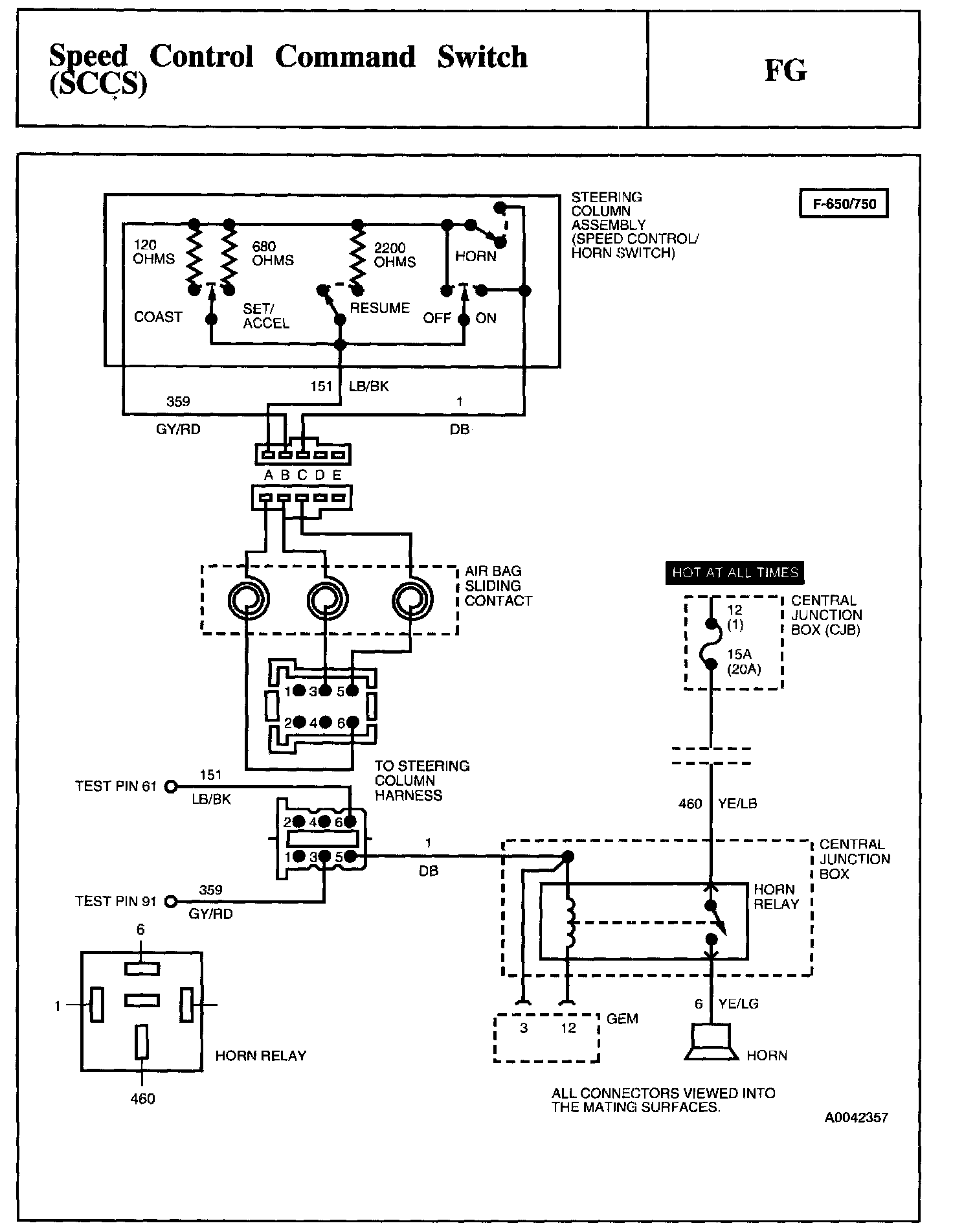

Test Schematic:

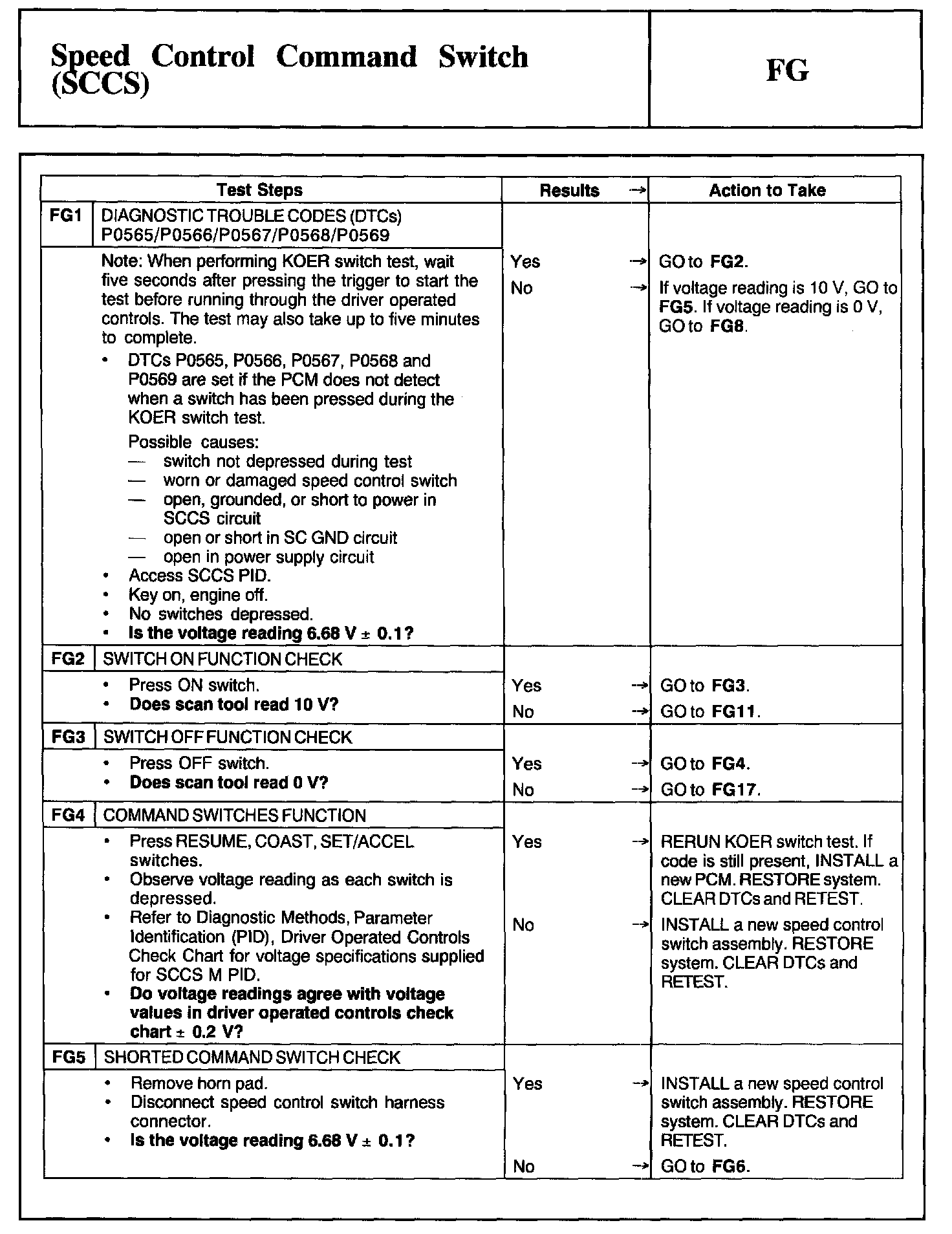

FG1 - FG5:

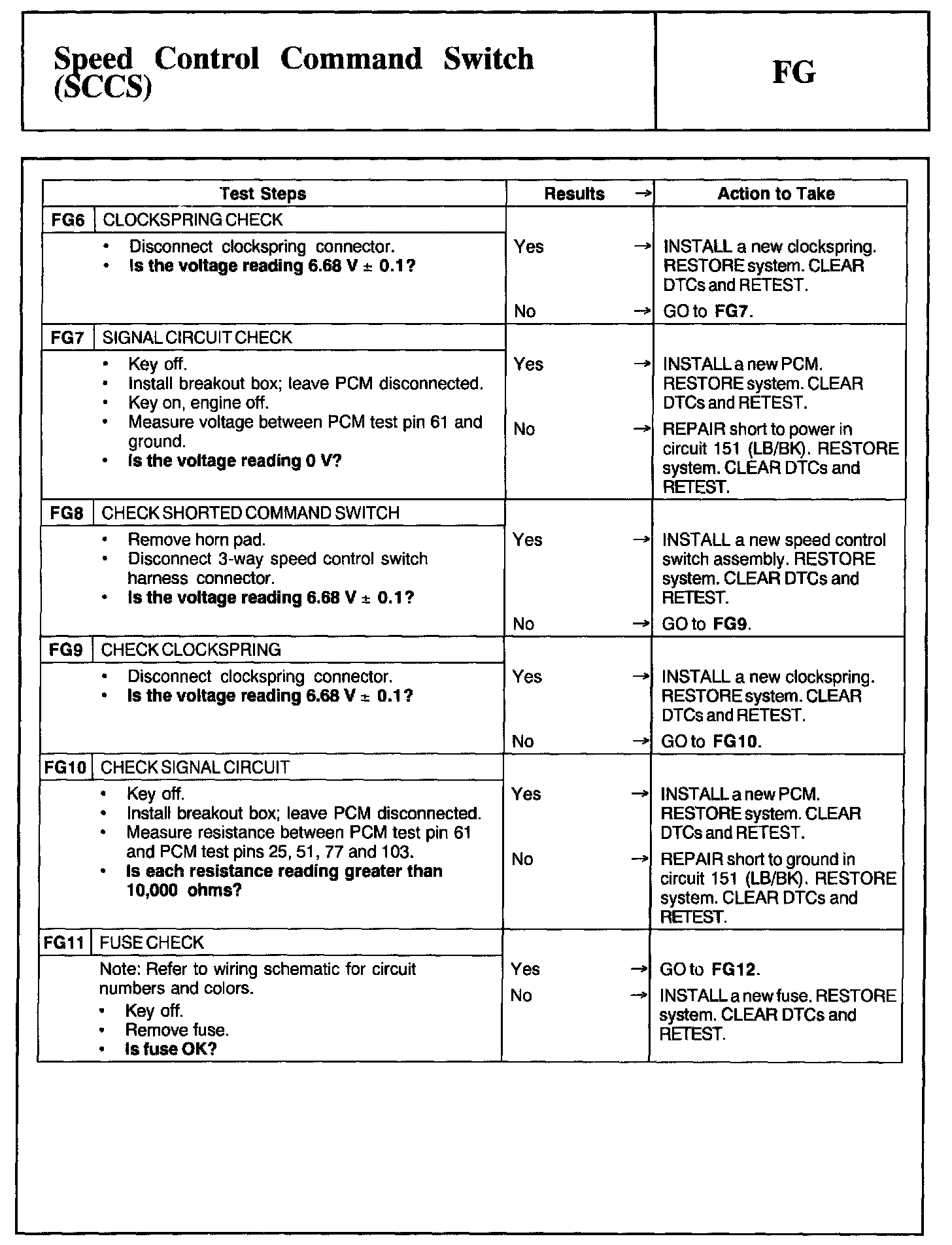

FG6 - FG11:

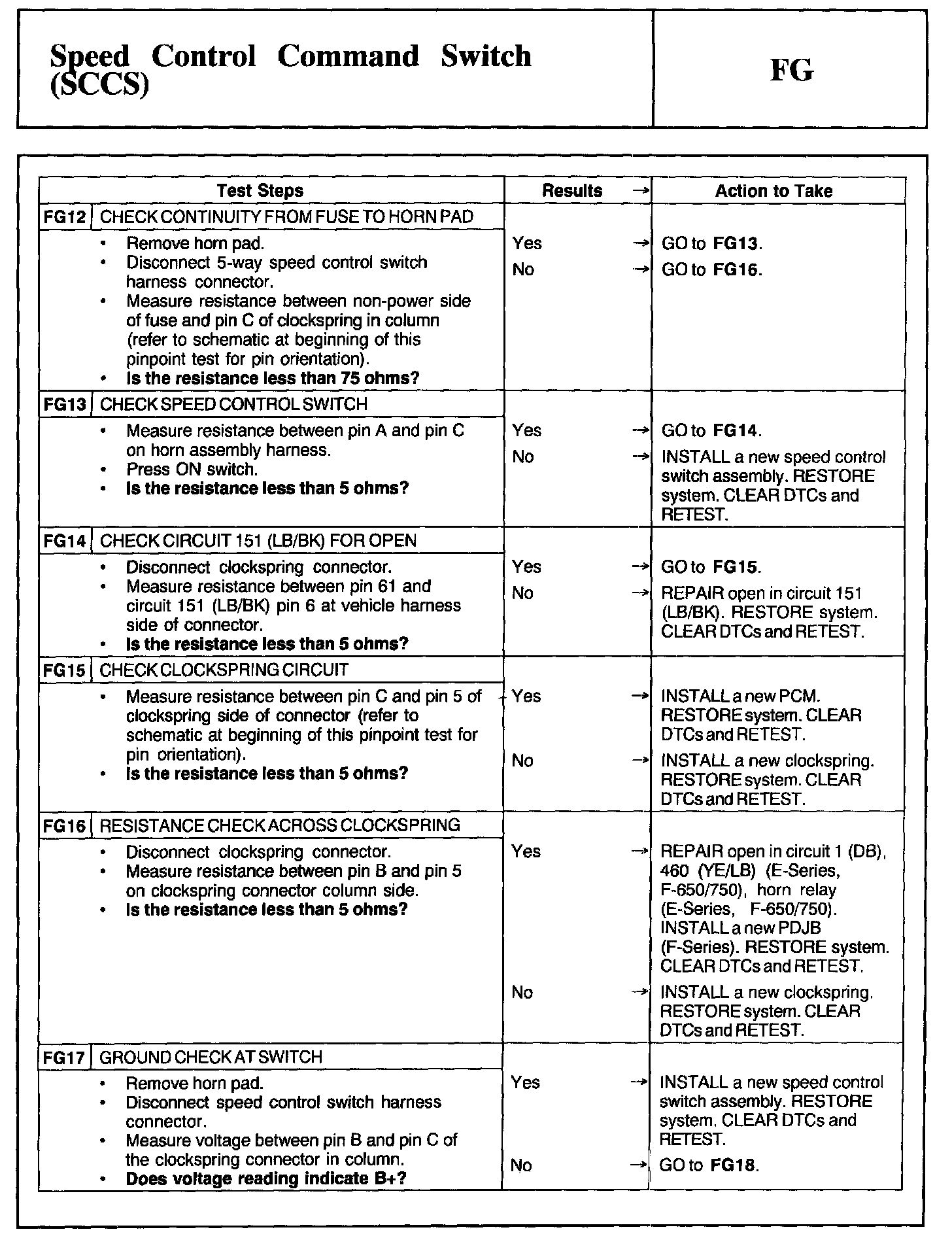

FG12 - FG17:

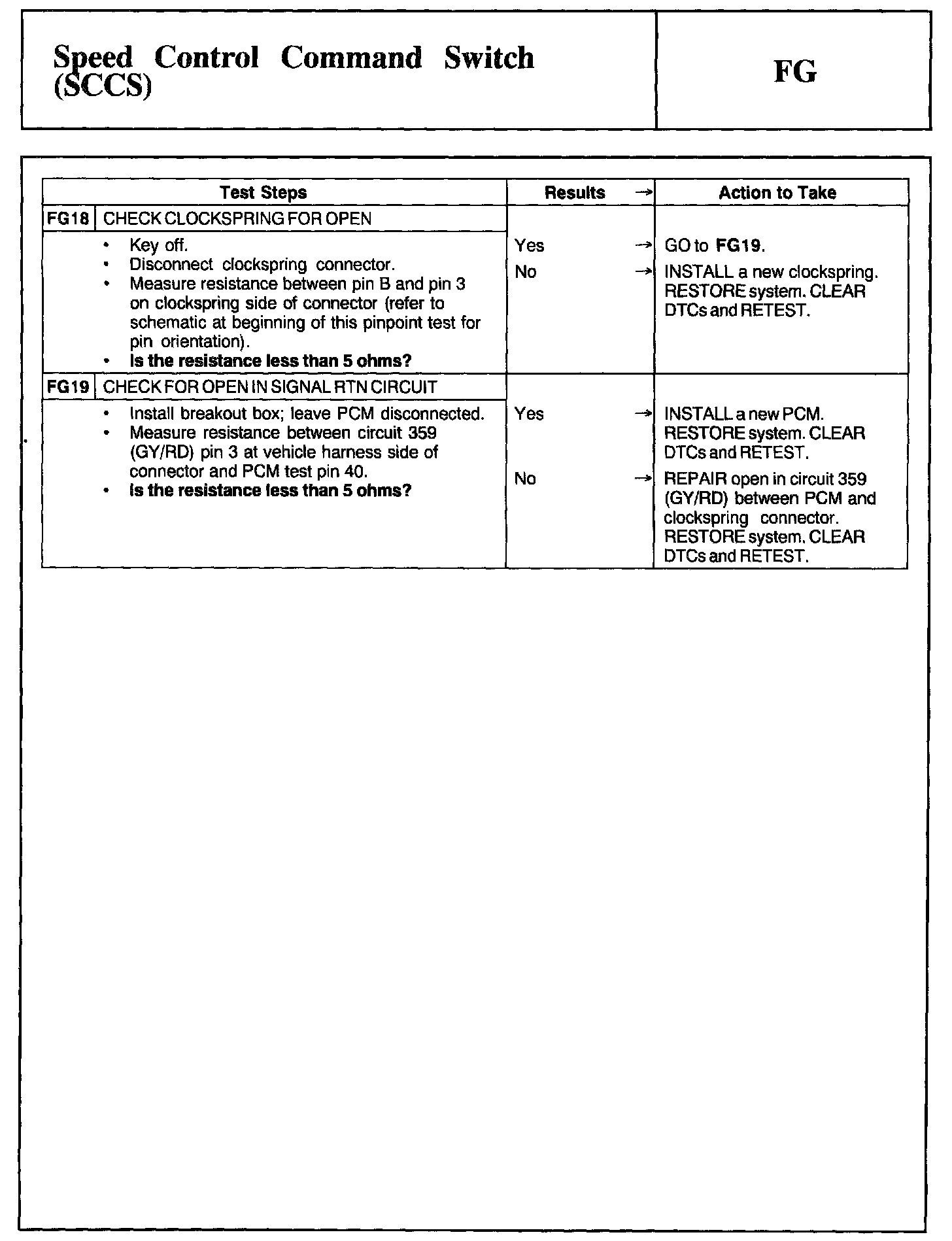

FG18 - FG19:
