Home >> Ford Truck >> 2002 >> Excursion 2WD V8-7.3L DSL Turbo VIN F >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Module Controlled >> Test K: Remote Keyless Entry Transmitter Out of Synchronization

Test K: Remote Keyless Entry Transmitter Out of Synchronization

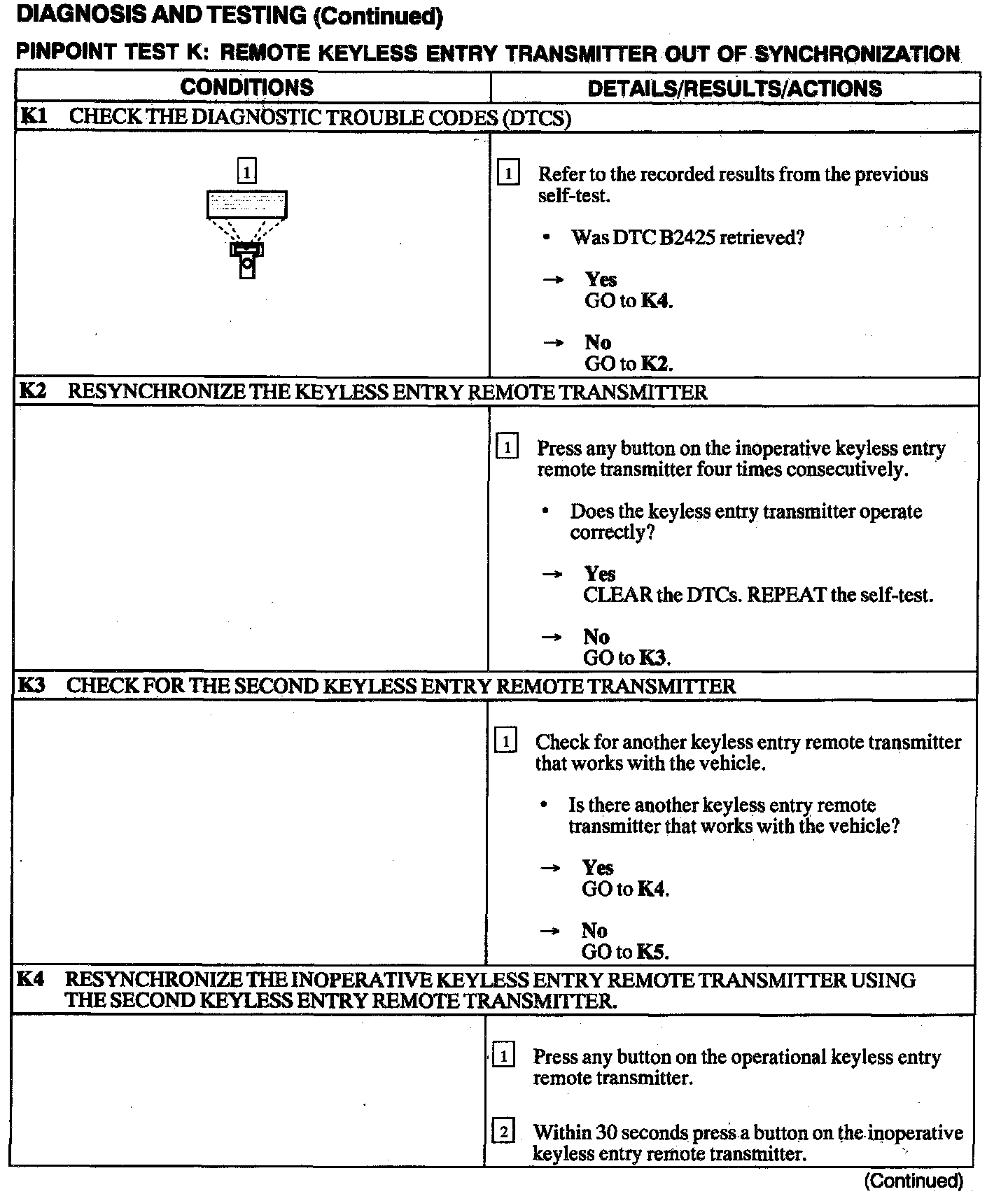

K1 - K4:

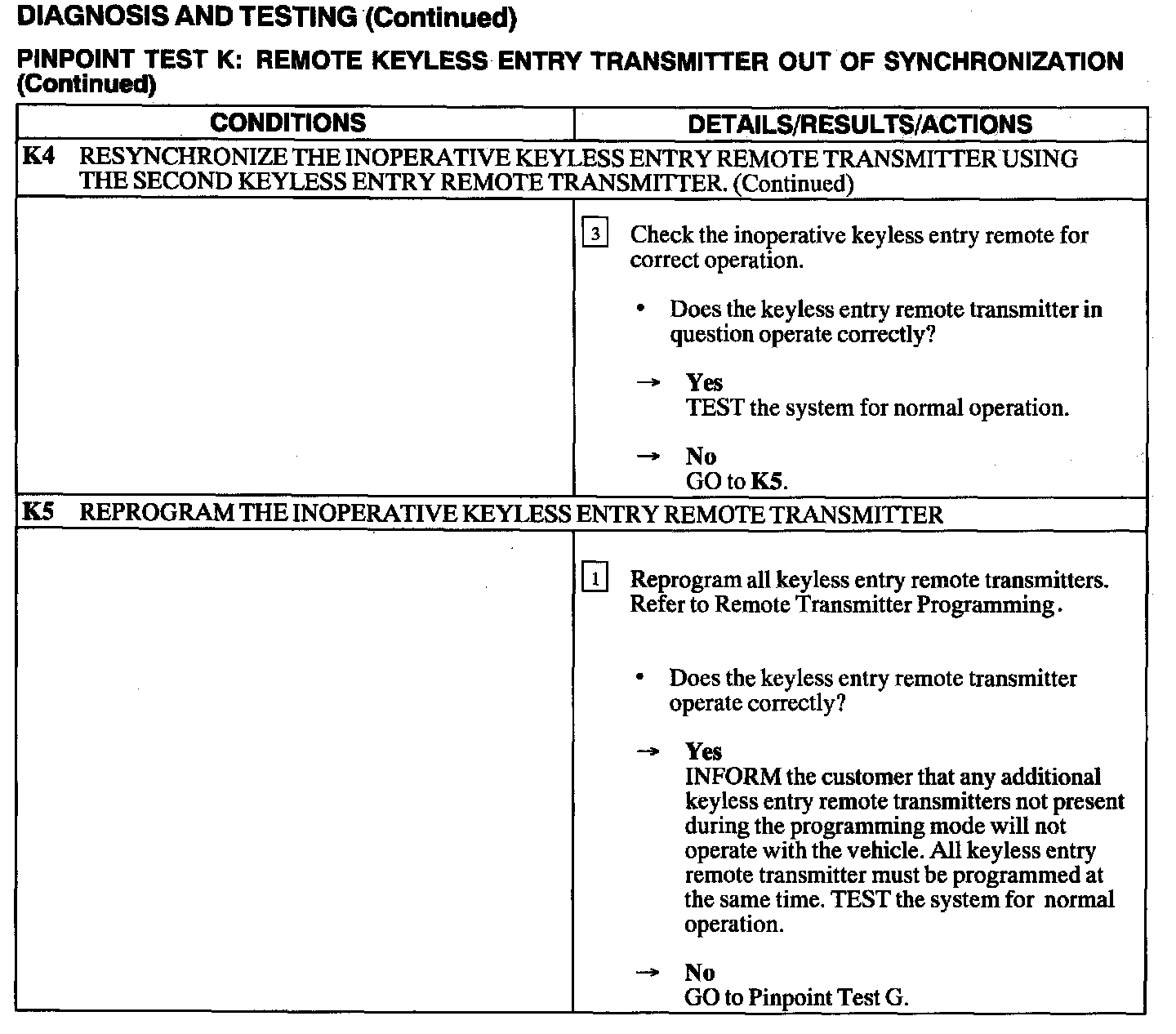

K4 - K5:
