Disassembly

1. Remove strut assembly requiring service from the vehicle.

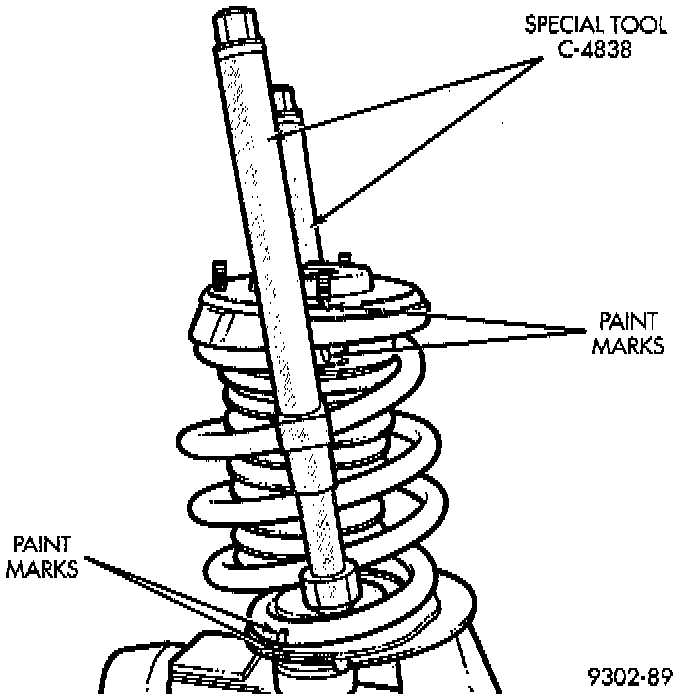

2. Position the strut assembly in a vise, by clamping the strut by the steering arm. Using paint or equivalent, mark the strut unit, lower spring isolator, spring and upper strut mount for indexing of the parts at assembly.

CAUTION: When installing spring compressors on coil spring, do not position the spring compressors on the sleeves of the coil spring. Positioning the spring compressors on the sleeves could cause the sleeve to dislodge from the coil spring when it is compressed. This would result in the required replacement of the coil spring.

WARNING: Do not install the spring compressor on the coil spring in an area of the spring covered by a sleeve. If the sleeve moves when compressing the spring, the spring could come out of compressor resulting in personal injury.

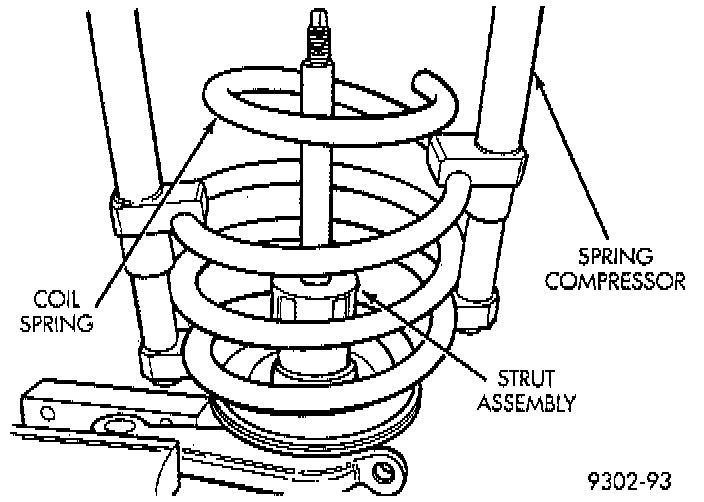

3. Position Spring Compressors, Special Tool C-4838, or equivalent on the strut assembly spring. Compress coil spring until all load is removed from upper strut mount assembly.





4. Install Strut Rod Socket, Special Tool, L-4558 or L-4558A, or equivalents on strut shaft nut. Using a 10 mm socket on end of strut shaft to keep strut shaft from turning, remove strut shaft nut.





5. Remove the upper strut mount assembly from the strut.

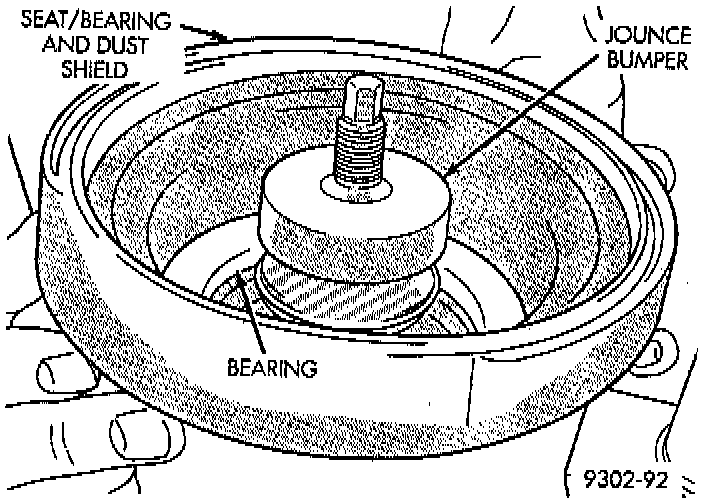

6. Remove the jounce bumper, spring seat/pivot bearing and dust shield as an assembly, from the strut.
