Power Steering Pump Flow Control Valve Replacement






REMOVE
1. Remove power steering pressure hose from power steering pump pressure fitting. Remove pump and pulley if necessary.

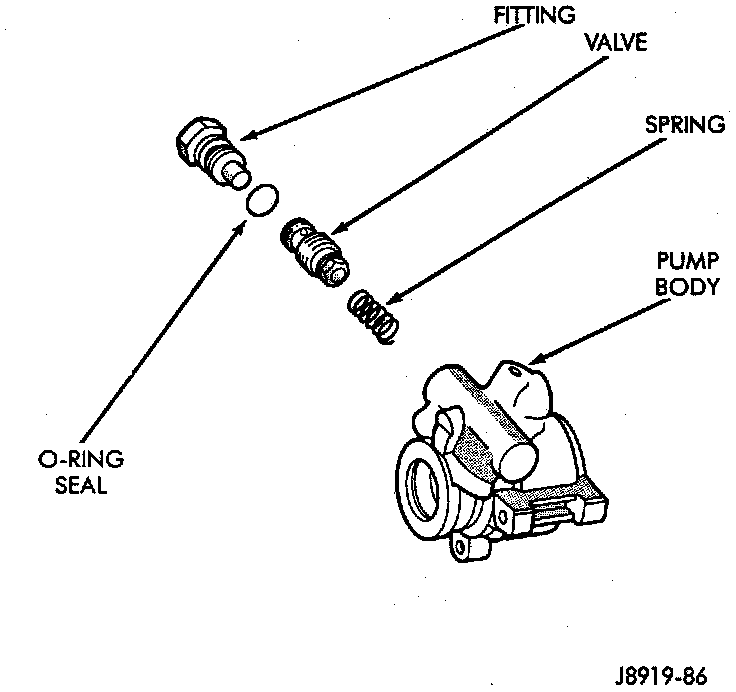

2. Remove fitting from pump housing. Prevent flow control valve and spring from sliding out of housing bore.
3. Remove and discard the O-ring seal on the power steering pump discharge fitting.

INSTALL
1. If necessary, clean and install flow control valve and spring in pump housing bore. Be sure the hex nut end of the valve is facing in toward the pump.
2. Install O-ring seal onto power steering pump discharge fitting.
3. Install the power steering pump discharge fitting in the power steering pump. Tighten the power steering pump discharge fitting to a torque of 75 Nm (55 ft. lbs.).
4. Install pump and pulley if necessary. Install pressure hose to fitting.
