Horn Switch: Testing and Inspection
Horn Switch:
1.

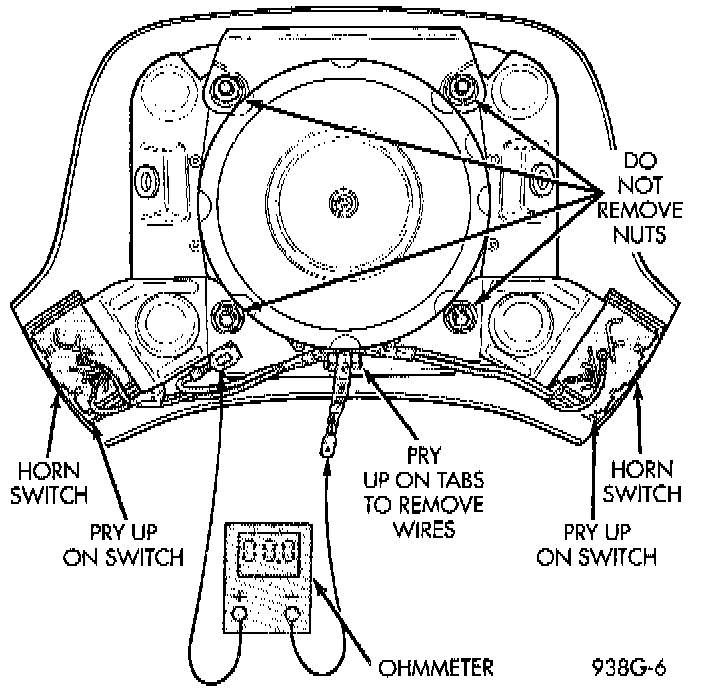

Using ohmmeter, connect one lead to ground wire and the other lead to the positive wire.
2.
Depress
horn switch
, should have continuity repeat for other switch. if no continuity replace switches.
