Headlamp Switch: Testing and Inspection

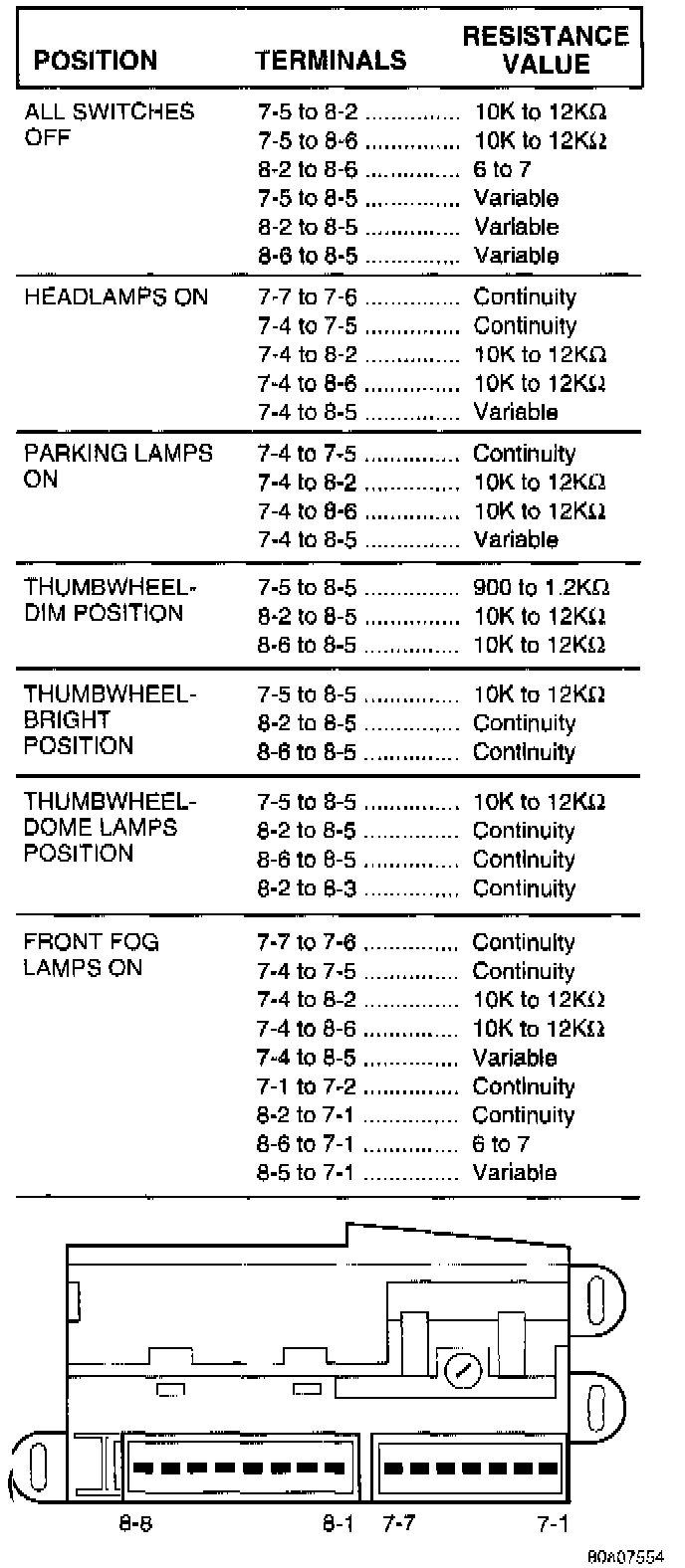

Headlamp Switch Test:




Using an ohmmeter, test for continuity between the terminals of the switch as shown in the Headlamp Switch Test.
