Combination Switch: Service and Repair

REMOVAL
1. Disconnect battery negative cable.
2. Remove tilt lever.
3. Remove both upper and lower steering column shrouds.

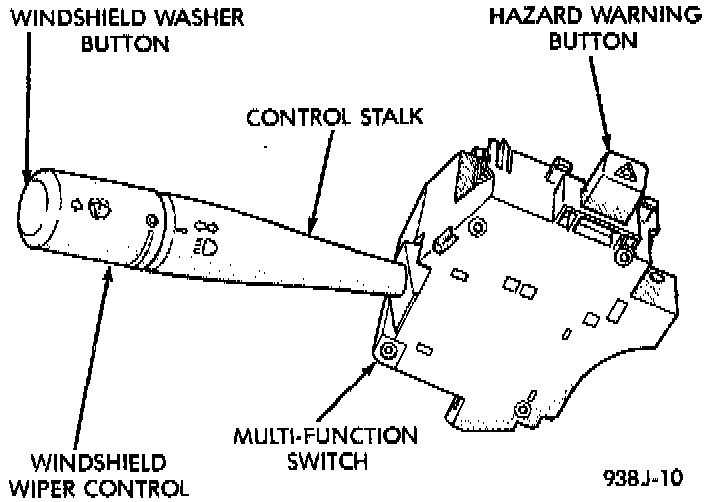

Multi-Function Switch:

4. Remove multi-function switch mounting screws.

INSTALLATION
- For installation, reverse the above procedures.
1. Tighten multi-function switch to column retaining screws to 2 N.m (17 in. lbs.) torque.
