Park and Turn Signal Lamp Bulb

REMOVAL
1. Release hood latch and open hood.
2. Remove radiator closure panel sight shield as necessary to gain access to lamp.
3. Remove screw holding park and turn signal lamp to headlamp module.
4. Separate park and turn signal lamp from vehicle.

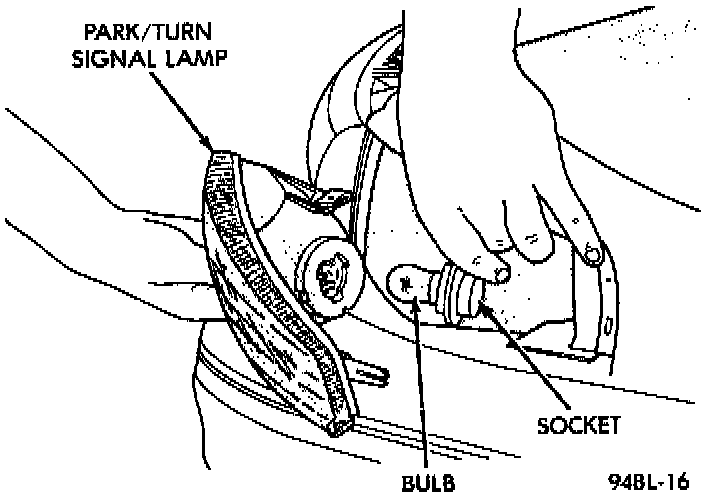

Park And Turn Signal Lamp Bulb:

5. Remove socket from park and turn signal lamp.
6. Pull bulb from socket.

INSTALLATION
1. Push bulb into socket.
2. Install socket into park and turn signal lamp.
3. Place park and turn signal lamp in position on vehicle.
4. Install screw to hold park and turn signal lamp to headlamp module.
5. Install radiator closure panel sight shield.
6. Verify park and turn signal lamp operation.
