Turn Signals: Service and Repair

Tail, Stop and Turn Signal Lamp - LH/D-L-X

REMOVAL
1. Release trunk latch and open trunk lid.
2. Remove fasteners holding trunk lining to lower rear deck panel.
3. Separate trunk lining from deck panel.
4. Disengage tail lamp wire connector from body wire harness.

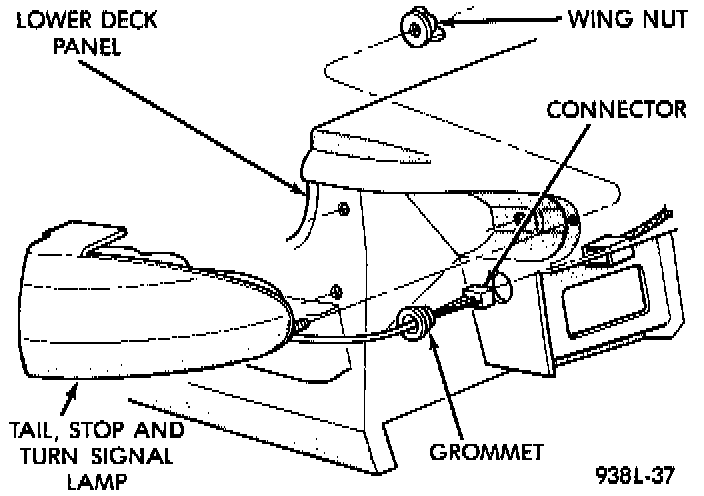

Tail, Stop And Turn Signal:

5. Remove nuts holding tail lamp to lower deck and quarter panel.
6. Separate tail lamp from vehicle.
7. Disengage wire harness grommet from lower deck panel and pull wire harness through hole in body.

INSTALLATION
1. Insert wire harness through hole in lower deck panel.
2. Engage wire harness grommet into lower deck panel.
3. Place tail lamp in position on vehicle.
4. Install nuts to hold tail lamp to lower deck and quarter panel.
5. Engage tail lamp wire connector to body wire harness.
6. Place trunk lining in position on lower deck panel.
7. Install fasteners to hold trunk lining to lower rear deck panel.
8. Verify lamp operation.
