Trunk Lamp: Service and Repair

Trunk Lid Applique Lamp Replacement - LH/D-L-X

REMOVAL
1. Release trunk latch and open trunk lid.
2. Remove push-in fasteners holding trunk lid lining to back of trunk lid.
3. Position trunk lid lining out of the way.
4. Disengage applique lamp wire connector from trunk lid harness.
5. Remove nuts holding applique lamp to trunk lid.

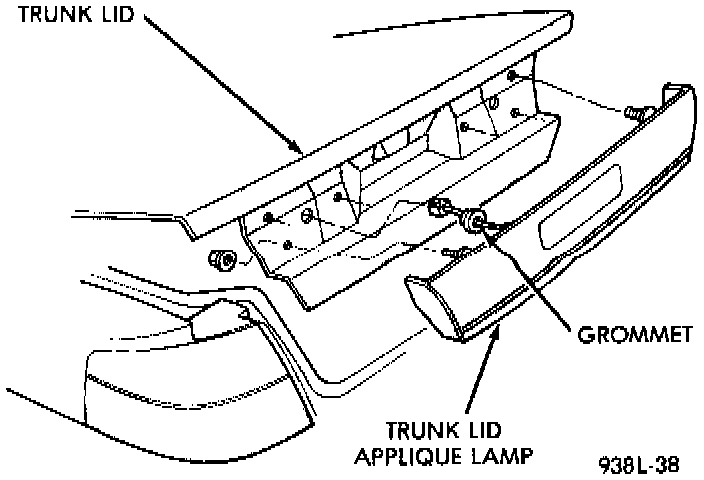

Trunk Lid Applique Lamp:

6. Separate applique lamp from trunk lid.
7. Remove wire harness grommet from hole in trunk lid.
8. Pull wire harness from trunk lid.
9. Separate applique lamp from vehicle.

INSTALLATION
1. Place applique lamp in position on vehicle.
2. Insert wire harness into trunk lid.
3. Install wire harness grommet in hole in trunk lid.
4. Place applique lamp in position on trunk lid.
5. Install nuts to hold applique lamp to trunk lid.
6. Engage applique lamp wire connector to trunk lid harness.
7. Place trunk lid lining in position.
8. Install push-in fasteners to hold trunk lid lining to back of trunk lid.
