Lighting and Horns: Service and Repair

Front Lamp Module Replacement - LH/D-L-X

REMOVAL
1. Release hood latch and open hood.
2. Remove front bumper fascia.

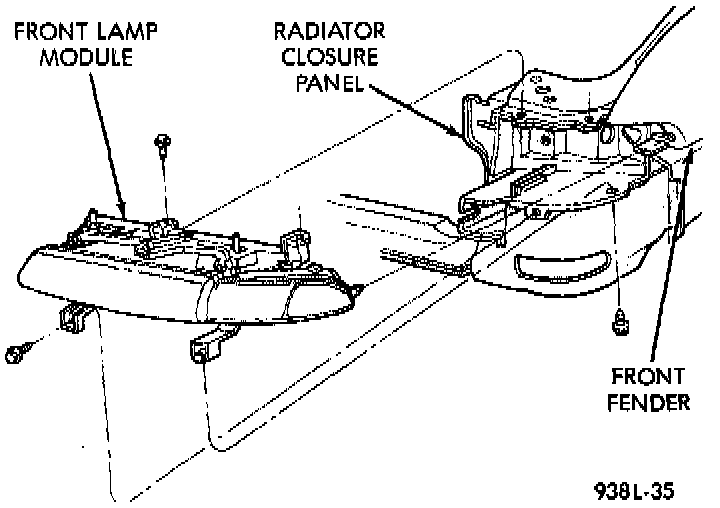

Front Lamp Module:

3. Remove screws holding bottom of lamp module to radiator closure panel.
4. Remove screws holding top of lamp module to radiator closure panel.
5. Separate lamp module from radiator closure panel.
6. Disengage wire connectors from bulb sockets on back of lamps.
7. Separate lamp module assembly from vehicle.

INSTALLATION
1. Place lamp module assembly in position on vehicle.
2. Engage wire connectors into bulb sockets on back of lamps.
3. Place lamp module in position on radiator closure panel.
4. Install screws to hold top of lamp module to radiator closure panel.
5. Install screws to hold bottom of lamp module to radiator closure panel.
6. Install front bumper fascia.
7. Verify headlamp alignment and calibrate bubble level. Refer to Headlamp Alignment procedures.
