Park and Turn Signal Lamp - LH/CP

REMOVAL
1. Release hood latch and open hood.
2. Remove radiator closure panel sight shield as necessary to gain access fasteners.
3. Remove screw holding park and turn signal lamp to headlamp module mount adapter.

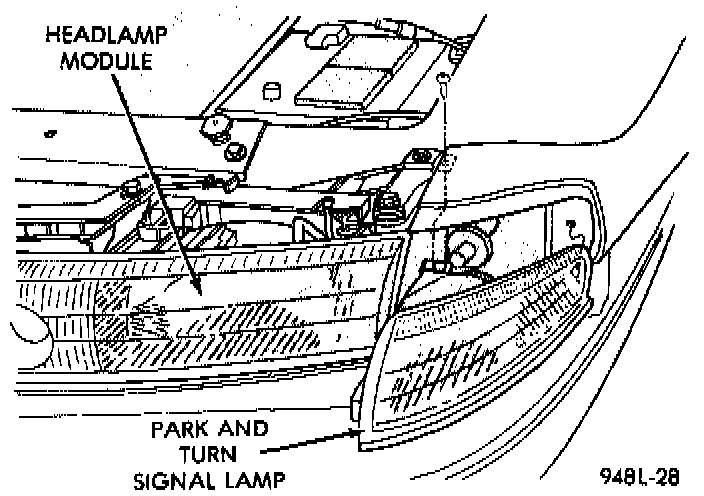

Park And Turn Signal Lamp:

4. Separate park and turn signal lamp from mount adapter.
5. Remove socket from park and turn signal lamp.
6. Separate park and turn signal lamp from vehicle.

INSTALLATION
1. Place park and turn signal lamp in position on vehicle.
2. Install socket into park and turn signal lamp.
3. Place park and turn signal lamp in position on mount adapter.
4. Install screw to hold park and turn signal lamp to headlamp module mount adapter.
5. Install radiator closure panel sight shield.
6. Verify park and turn signal lamp operation.
