Rear Side Marker Lamp - LH/CP

REMOVAL
1. Remove rear side marker lamp bulb and socket.

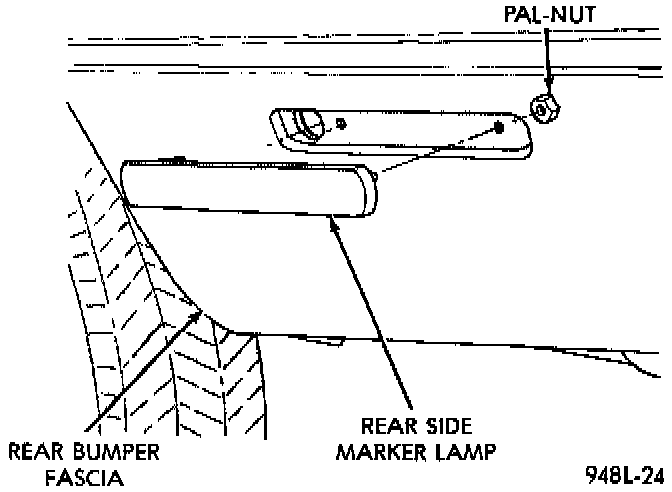

Rear Side Marker Lamp:

2. Remove nuts holding rear side marker lamp to rear bumper fascia.
3. Separate rear side marker lamp from vehicle.

INSTALLATION
1. Place rear side marker lamp in position on vehicle.
2. Install nuts to hold rear side marker lamp to rear bumper fascia.
3. Install rear side marker lamp bulb and socket.
