Headlamp Bubble Level

REMOVAL
1. Release hood latch and open hood.

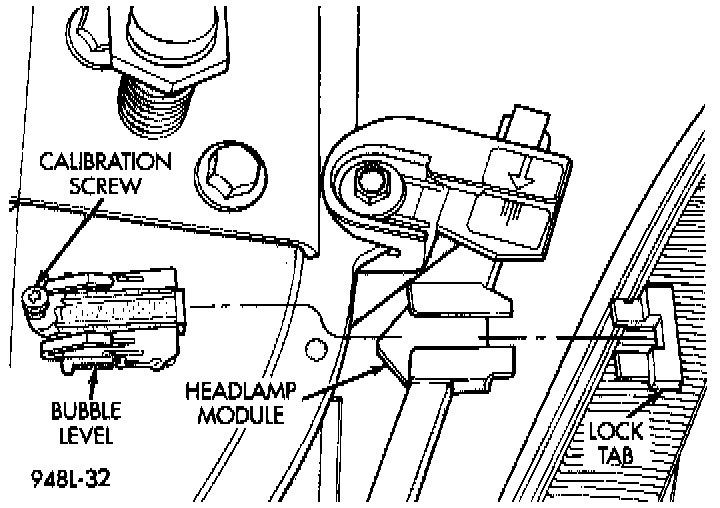

Headlamp Bubble Level:

2. Pry lock tab from forward end of bubble level.
3. Pull forward end of level upward to clear lock tabs on bottom of bubble level.
4. Push bubble level rearward out of retaining channel on headlamp module.
5. Separate level from vehicle.

INSTALLATION
1. Place bubble level in position on vehicle.
2. Pull bubble level forward into retaining channels on headlamp module until tabs lock.
3. Install lock tab into forward end of bubble level.
4. Calibrate bubble level. Refer to Headlamp Bubble Level Calibration in Headlamp Alignment.
