LH/D-L-X

REMOVAL

Fog Lamp - Typical:

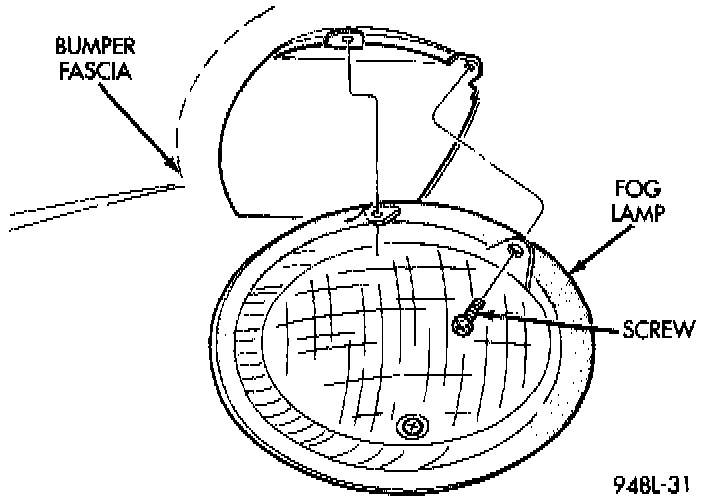

1. Remove screws holding fog lamp to fascia.
2. Pull fog lamp forward from opening in front bumper fascia.
3. Disengage fog lamp wire connector from front lighting wire harness.
4. Separate fog lamp from vehicle.

INSTALLATION
1. Place fog lamp in position on vehicle.
2. Engage fog lamp wire connector to front lighting wire harness.
3. Insert fog lamp rearward into opening in front bumper fascia.
4. Install screws to hold fog lamp to fascia.
5. Verify fog lamp operation and alignment. Refer to Fog Lamp Alignment procedures.
