LH/D-L-X

REMOVAL
1. Remove tail lamp from vehicle.

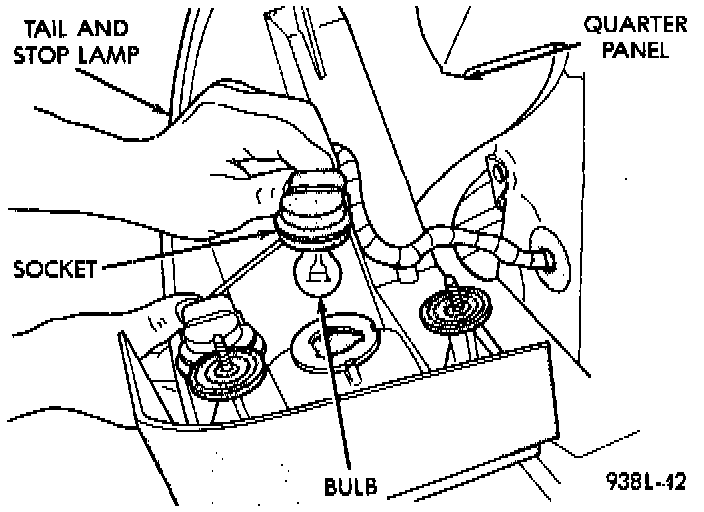

Tail, Stop, Back-up And Turn Signal Lamp Bulb:

2. Remove socket from lamp.
3. Pull bulb from socket.

INSTALLATION
1. Insert bulb into socket.
2. Install socket in lamp.
3. Install tail lamp in vehicle.
