Exhaust Pipe Replacement

REMOVAL
1. Remove the exhaust system.
2. Apply penetrating oil and loosen the band clamps that fasten the front pipes to the inlet bushings of the under floor convertor.
3. Remove front pipes from the slip joints. Heat may be required to allow removal from the front bushing.

INSTALLATION
1. Install and loose assemble the front pipes to the exhaust manifolds and the transmission support bracket.
2. Install exhaust system.

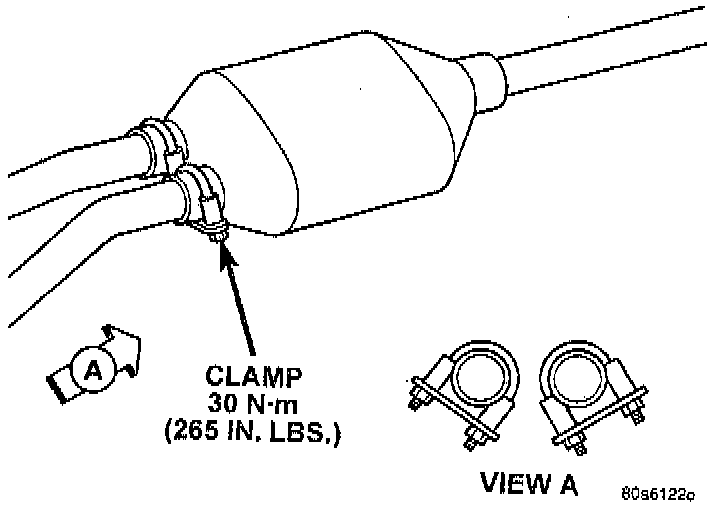

3. Position clamps and tighten to specification.
