Tachometer and Fuel/Temperature Gauge Assembly

Type B

For removal and installation procedures of the instrument cluster and bezel refer to the detailed procedures above.

REMOVAL
1. Remove the trip odometer reset knob by gently pulling rearward.

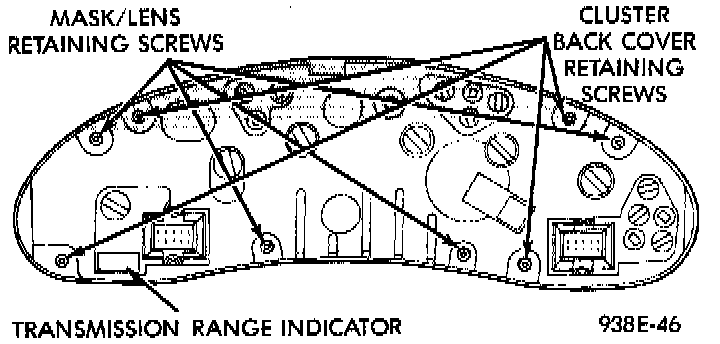

Retaining Screws:

2. Remove the cluster back cover retaining screws and remove the cover.
3. Disconnect the transmission range indicator and the odometer connectors from the printed circuit board.
4. Remove the mask/lens retaining screws then remove the mask/lens.

Gauge Removal:

5. Remove the tachometer and/or the fuel/temperature gauge from the cluster.

INSTALLATION
1. For installation, reverse the above procedures.
