Wiring Diagrams

Fuel And Ignition System Wiring (Part 1 Of 14):

Automatic Shut Down Relay
Fuse 18 (JB)
Fuse B (PDC)
G104
Generator
Junction Block
Power Distribution Center
S116
S120
S129
S133

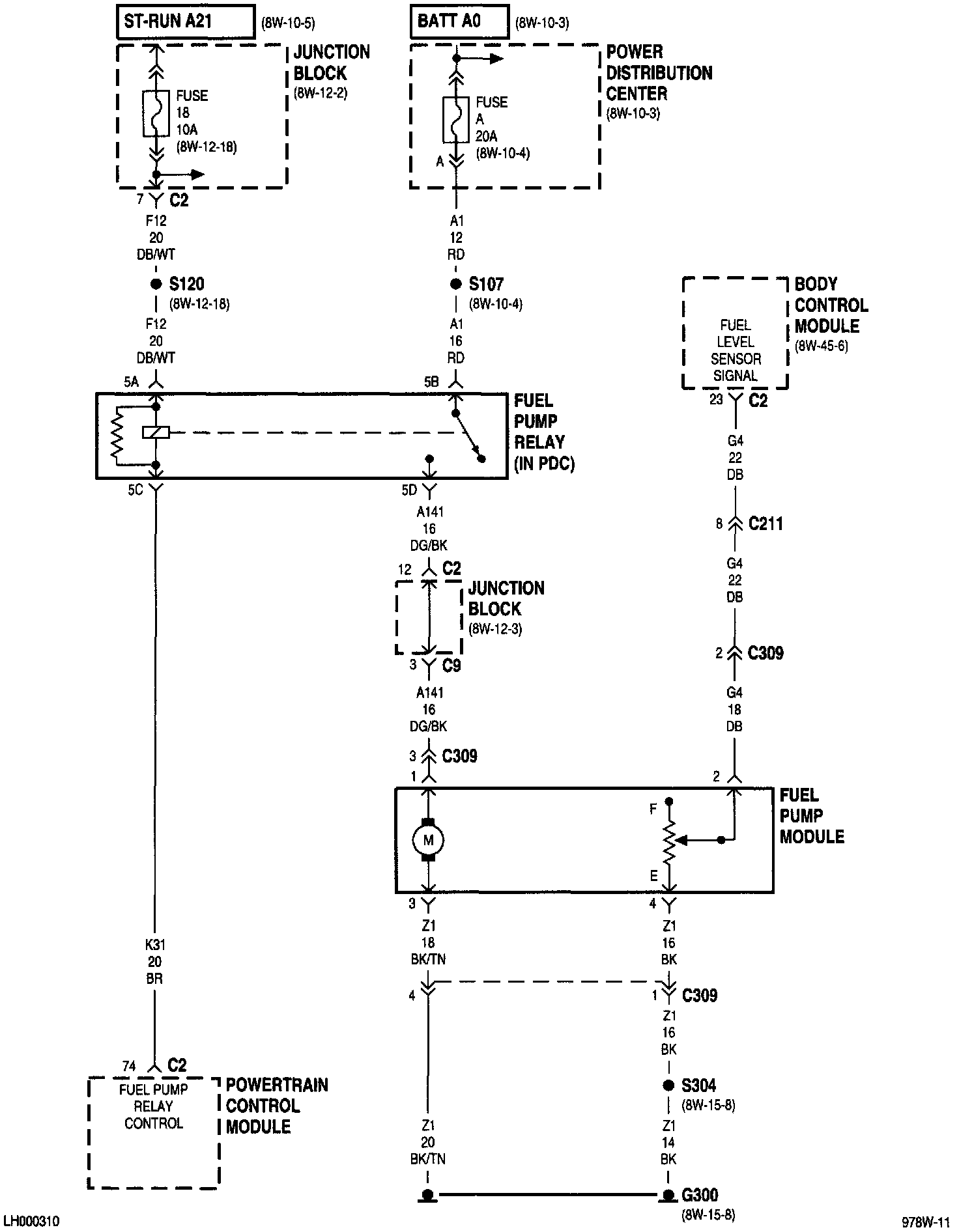

Fuel And Ignition System Wiring (Part 2 Of 14):

Body Control Module
Fuel Pump Module
Fuel Pump Relay
Fuse 18 (JB)
Fuse A (PDC)
G300
Junction Block
Power Distribution Center
S120
S107
S304

Fuel And Ignition System Wiring (Part 3 Of 14):

Automatic Shut Down Relay
Capacitor
G105
G107
Ignition Coil Pack
Ignition Coil Pack Helical Shield
S129
S143
S144
S145
S148

Fuel And Ignition System Wiring (Part 4 Of 14):

Automatic Shut Down Relay
Fuel Injectors
S129
S145
S148

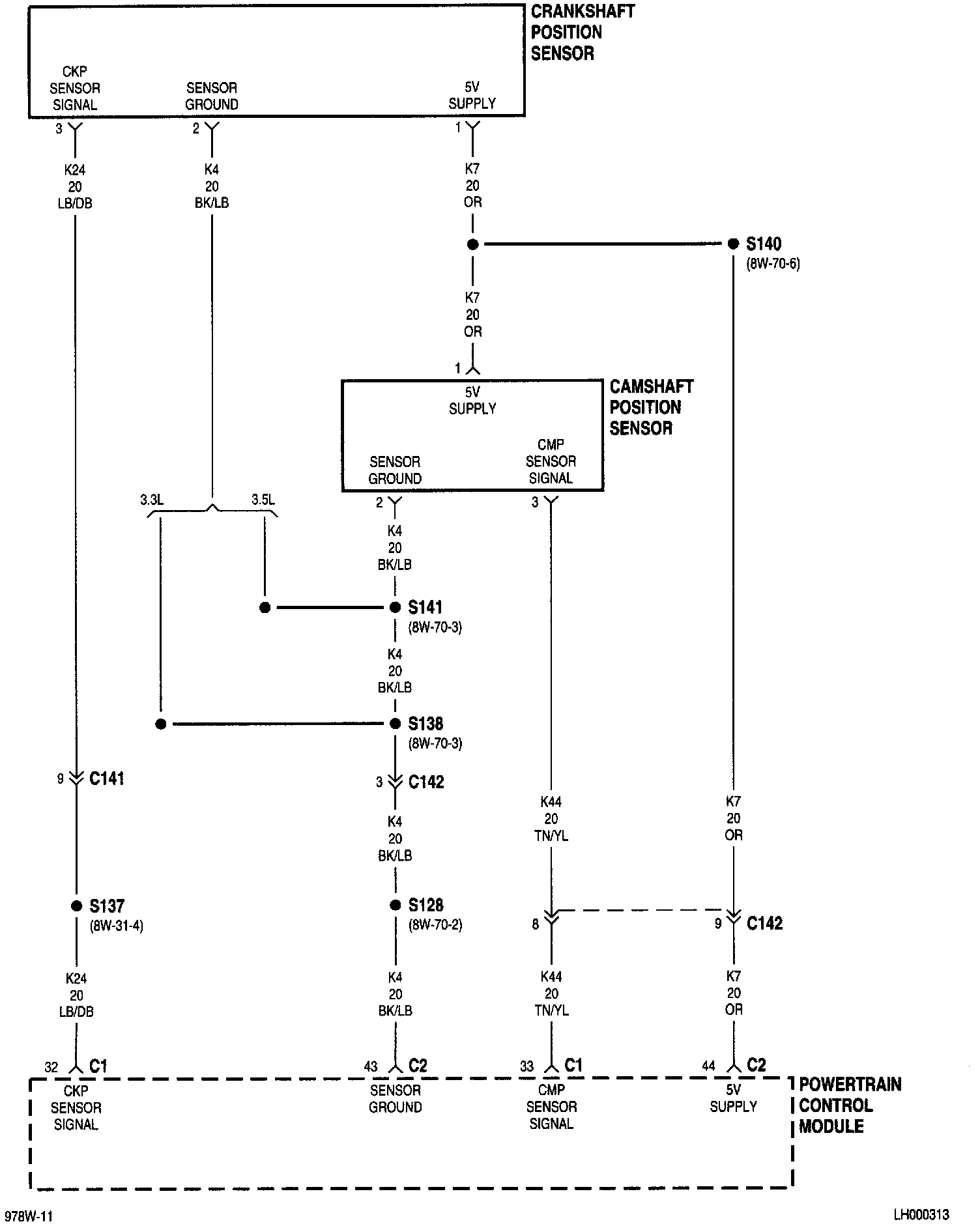

Fuel And Ignition System Wiring (Part 5 Of 14):

Camshaft Position Sensor
Crankshaft Position Sensor
S128
S137
S138
S140
S141

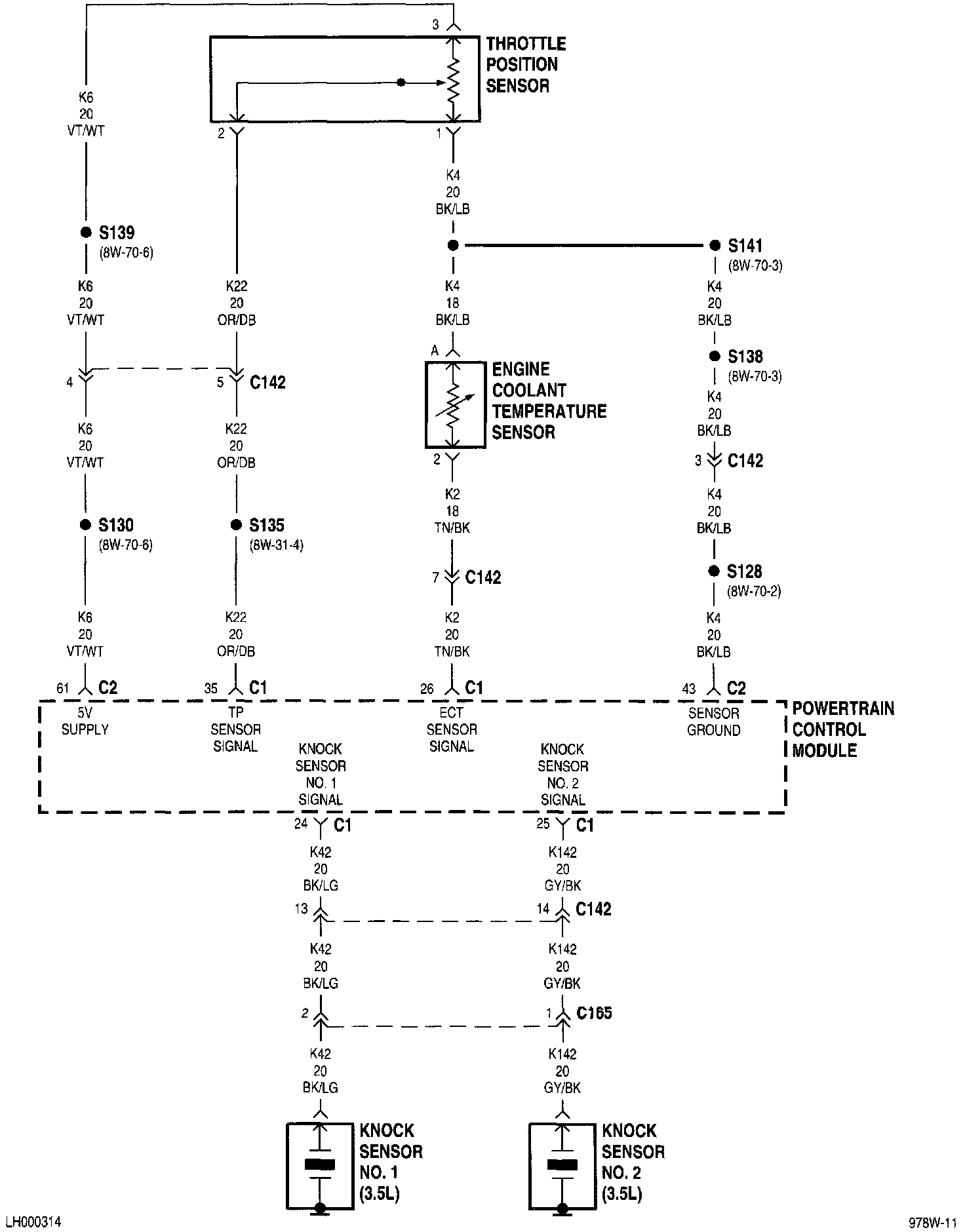

Fuel And Ignition System Wiring (Part 6 Of 14):

Engine Coolant Temperature Sensor
Knock Sensor No. 1
Knock Sensor No. 2
S135
S128
S130
S138
S139
S141
Throttle Position Sensor

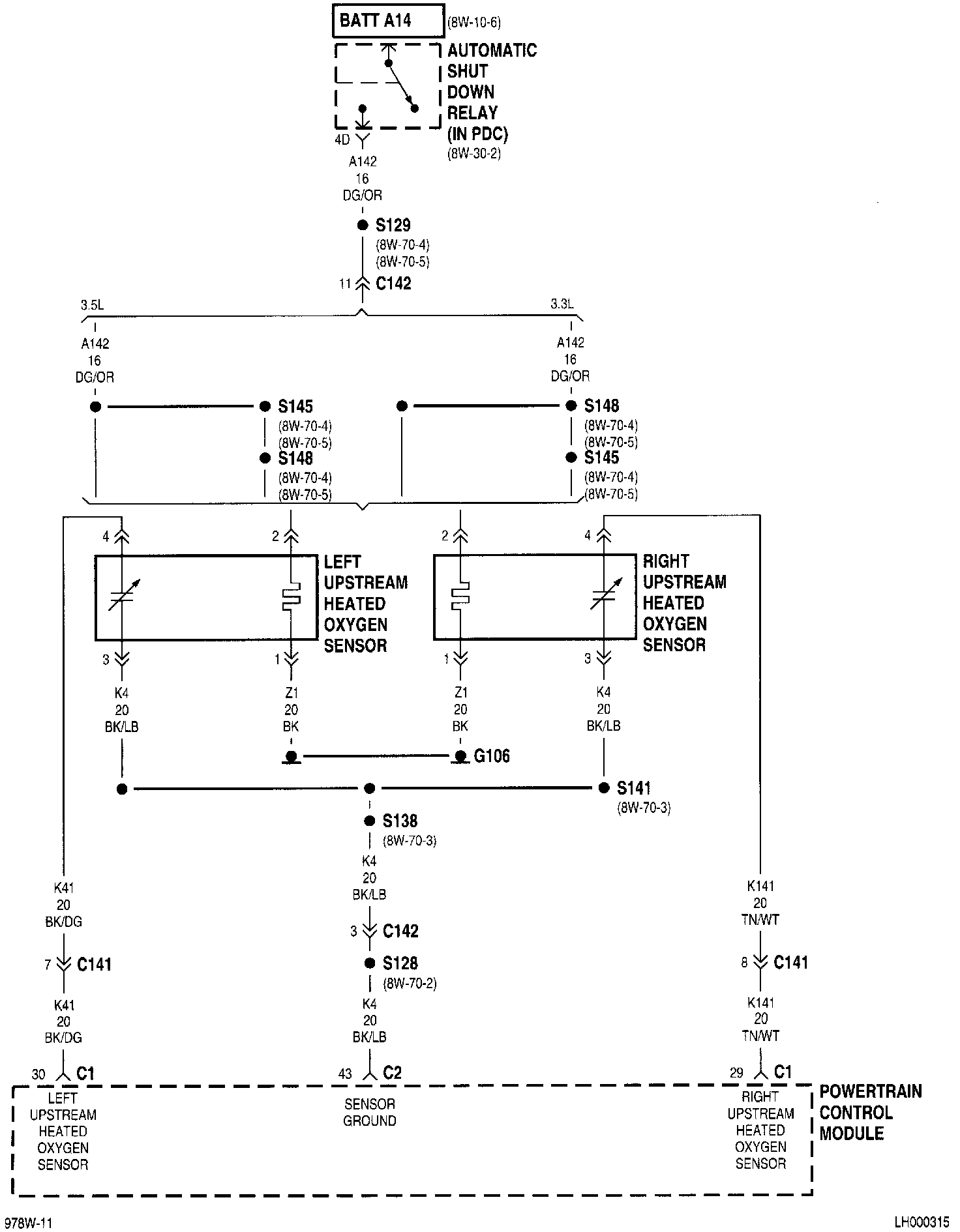

Fuel And Ignition System Wiring (Part 7 Of 14):

Automatic Shut Down Relay
G106
Left Upstream Heated Oxygen Sensor
Right Upstream Heated Oxygen Sensor
S128
S129
S138
S141
S145
S148

Fuel And Ignition System Wiring (Part 8 Of 14):

Automatic Shut Down Relay
G105
Left Downstream Heated Oxygen Sensor
Right Downstream Heated Oxygen Sensor
S128
S129
S132
S150
S151

Fuel And Ignition System Wiring (Part 9 Of 14):

A/C Pressure Transducer
Intake Air Temperature Sensor
Manifold Absolute Pressure Sensor
S128
S130
S138
S139
S141

Fuel And Ignition System Wiring (Part 10 Of 14):

Clockspring
Engine Starter Motor Relay
Power Distribution Center
S127
S134
Stop Lamp Switch
Transmission Control Module
Transmission Range Switch
Vehicle Speed Control Servo
Vehicle Speed Control/Horn Switch

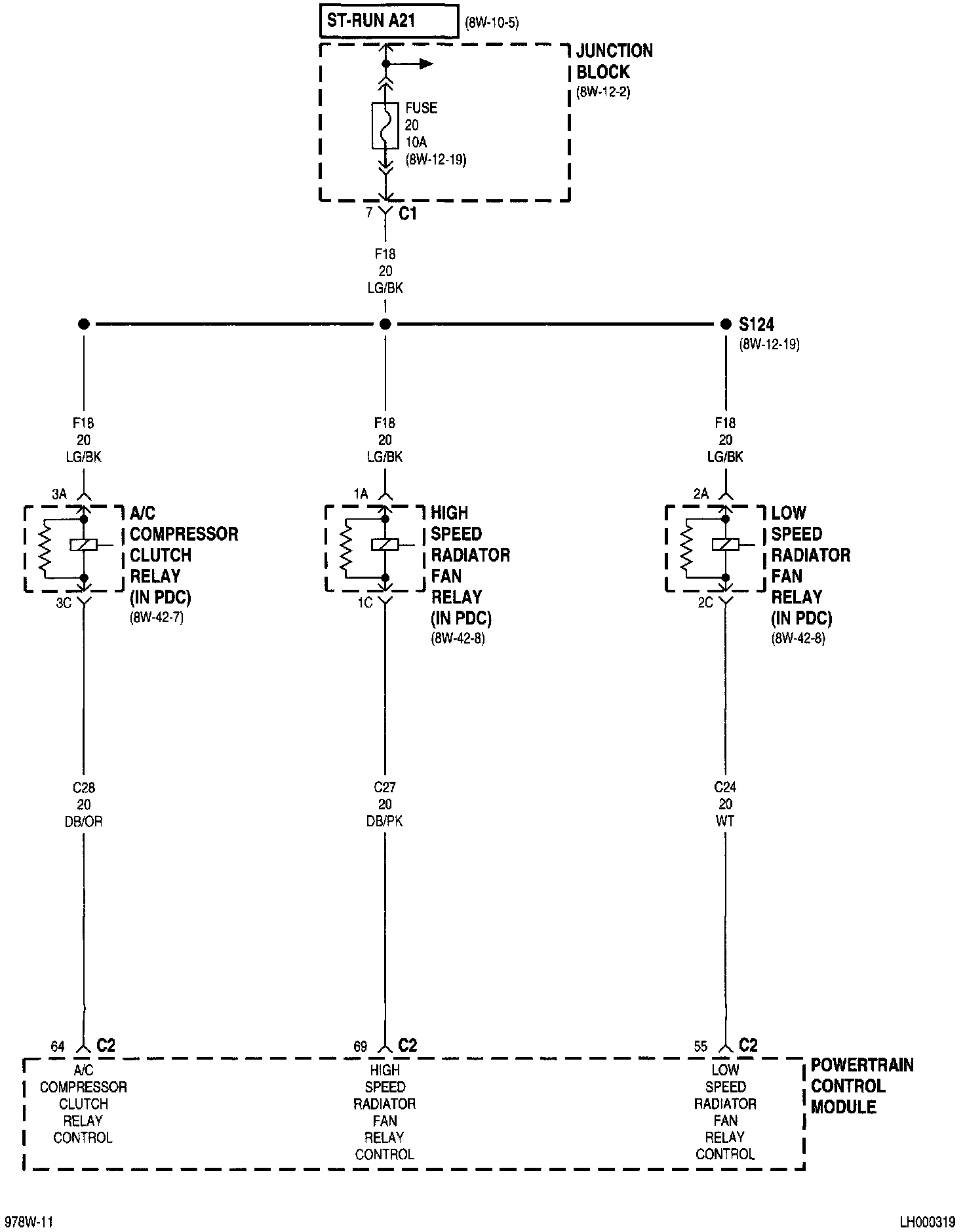

Fuel And Ignition System Wiring (Part 11 Of 14):

A/C Compressor Clutch Relay
Fuse 20 (JB)
High Speed Radiator Fan Relay
Junction Block
Low Speed Radiator Fan Relay
S124

Fuel And Ignition System Wiring (Part 12 Of 14):

Duty Cycle Evap Purge Solenoid
EGR Solenoid
Fuse 20 (JB)
Idle Air Control Motor
Junction Block
Manifold Tuning Valve Solenoid
S124

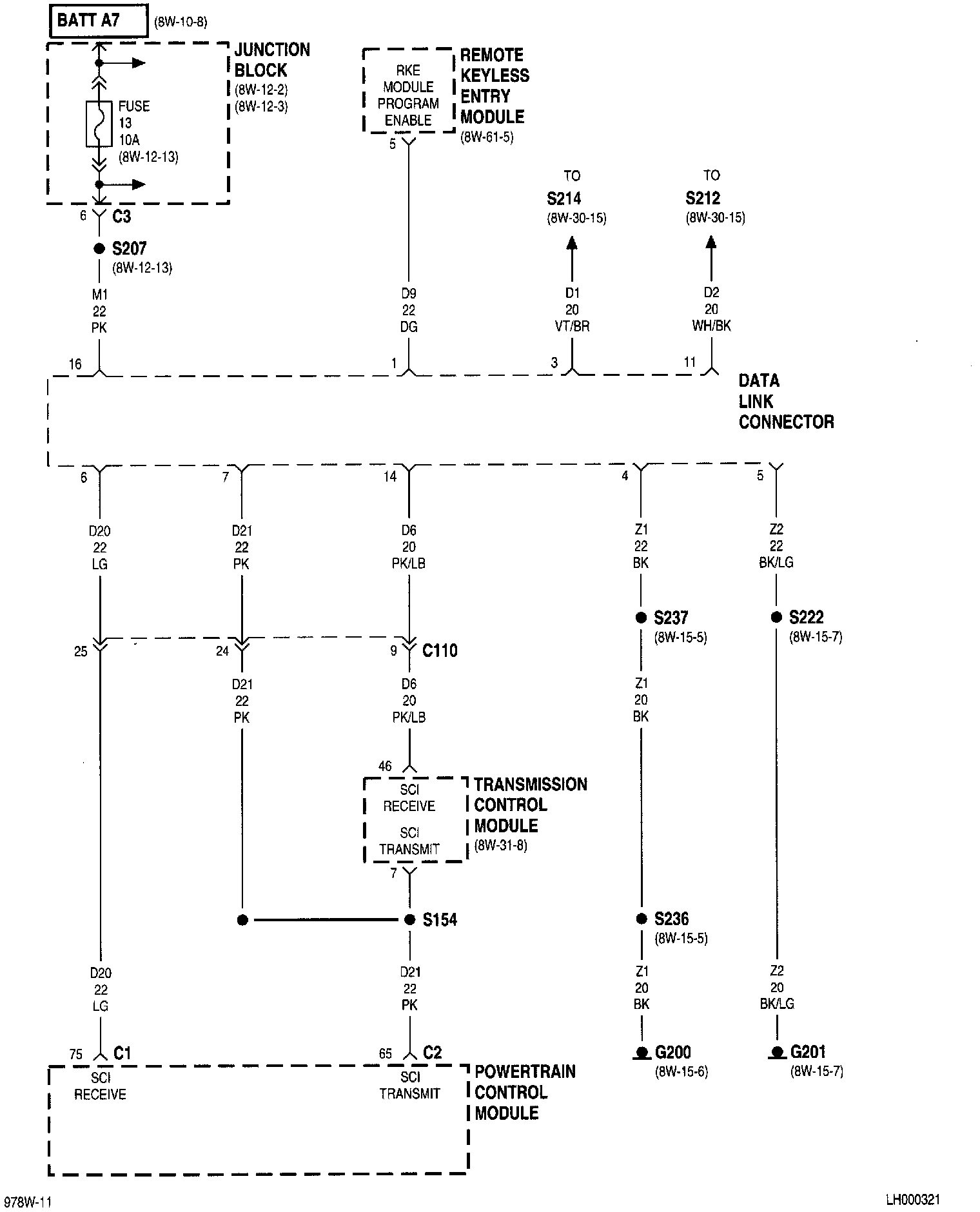

Fuel And Ignition System Wiring (Part 13 Of 14):

Data Link Connector
Fuse 13 (JB)
G200
G201
Junction Block
Remote Keyless Entry Module
S154
S207
S222
S236
S237
Transmission Control Module

Fuel And Ignition System Wiring (Part 14 Of 14):

Airbag Control Module
Automatic Temperature Control Module
Body Control Module
Controller Anti-Lock Brake
Data Link Connector
Instrument Cluster
Overhead Console
S122
S123
S212
S214
Transmission Control Module

NOTE: Powertrain Control Module is included in all diagrams listed.
