Diagnostic Connector - ABS: Locations

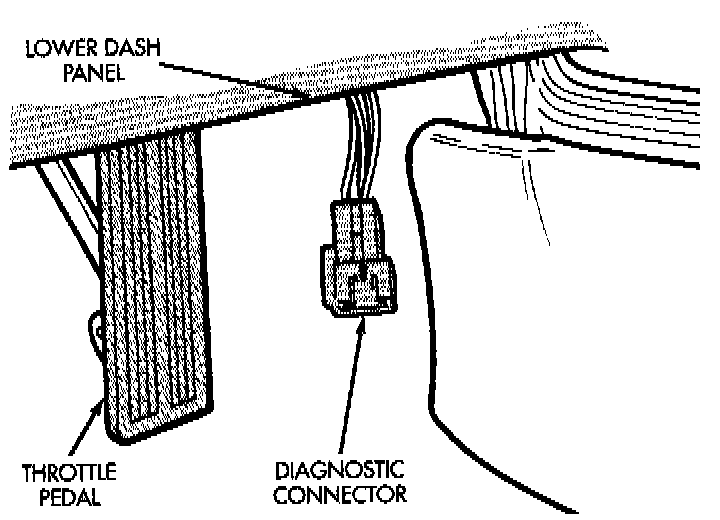

ABS Diagnostic Connector Location:

On this vehicle, the Teves Mark IV-G ABS or ABS with traction control diagnostic connector is located under the lower instrument panel to the right side of the steering column. The diagnostics connector is a blue 6 way connector.
