Overhead Console Base Plate

REMOVAL
1. Remove overhead console.
2. Remove head liner.

Full Console Base Removal:

Mini Console Base Removal:

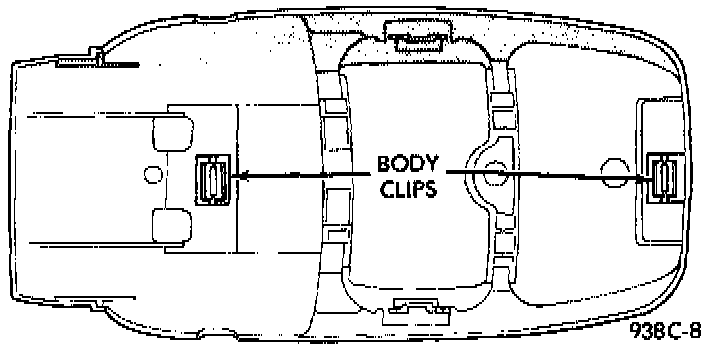

3. Using an trim stick, remove console base by disengaging the body clips.

INSTALLATION
- For installation, reverse the above procedures.
