Full Console

REMOVAL

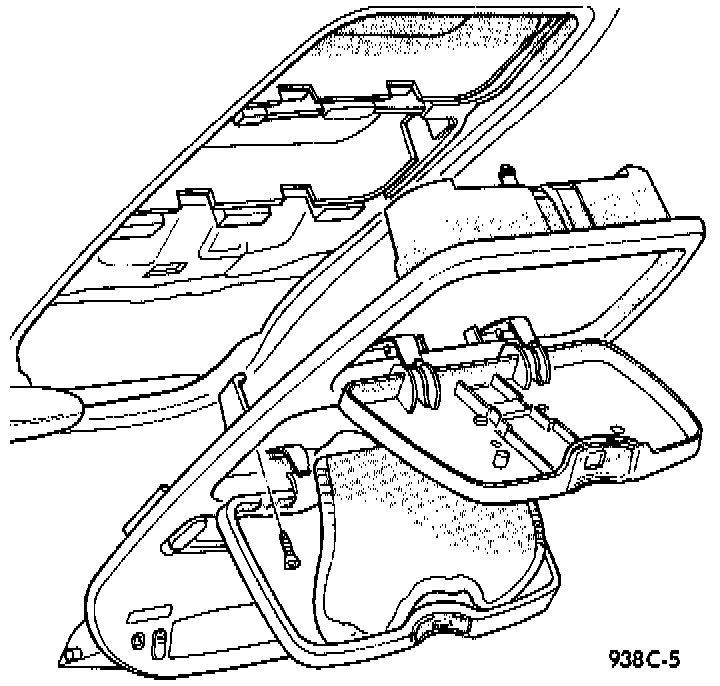

Full Overhead Console:

1. Open the garage door opener and the sun glass compartments.
2. Remove two screws from the eye glasses compartment.
3. Remove screw from garage door transmitter compartment and remove transmitter, if necessary Pull gently down at the rear of the console to disconnect the console from mounting bracket
4. Disconnect wire connectors and lower the console.

INSTALLATION
- For installation, reverse the above procedures.
