Door Mounted Speaker

CAUTION: Do not operate the radio with speaker leads detached. Damage to the output devices may result.

REMOVAL

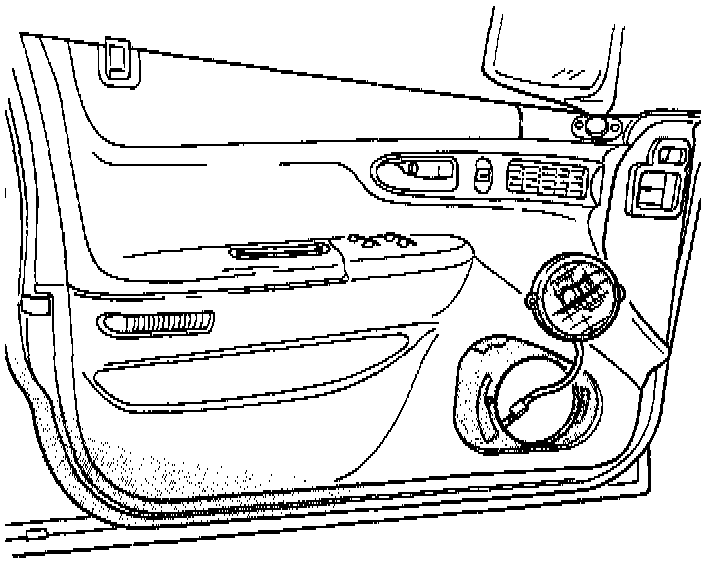

Door Mounted Speaker:

1. Carefully, pry speaker grille away from door trim panel. Remove window crank handle if equipped.
2. Remove two speaker retaining screws.
3. Pull speaker away from door and disconnect wiring.

INSTALLATION
- For installation reverse the above procedures.
