Test 6E - Right Rear Wheel Speed Sensor

NOTE: You must perform Test 6-A, before performing this test.

Test 6E: Repairing Right Rear Sensor Circuit Failure (Part 1 Of 2):

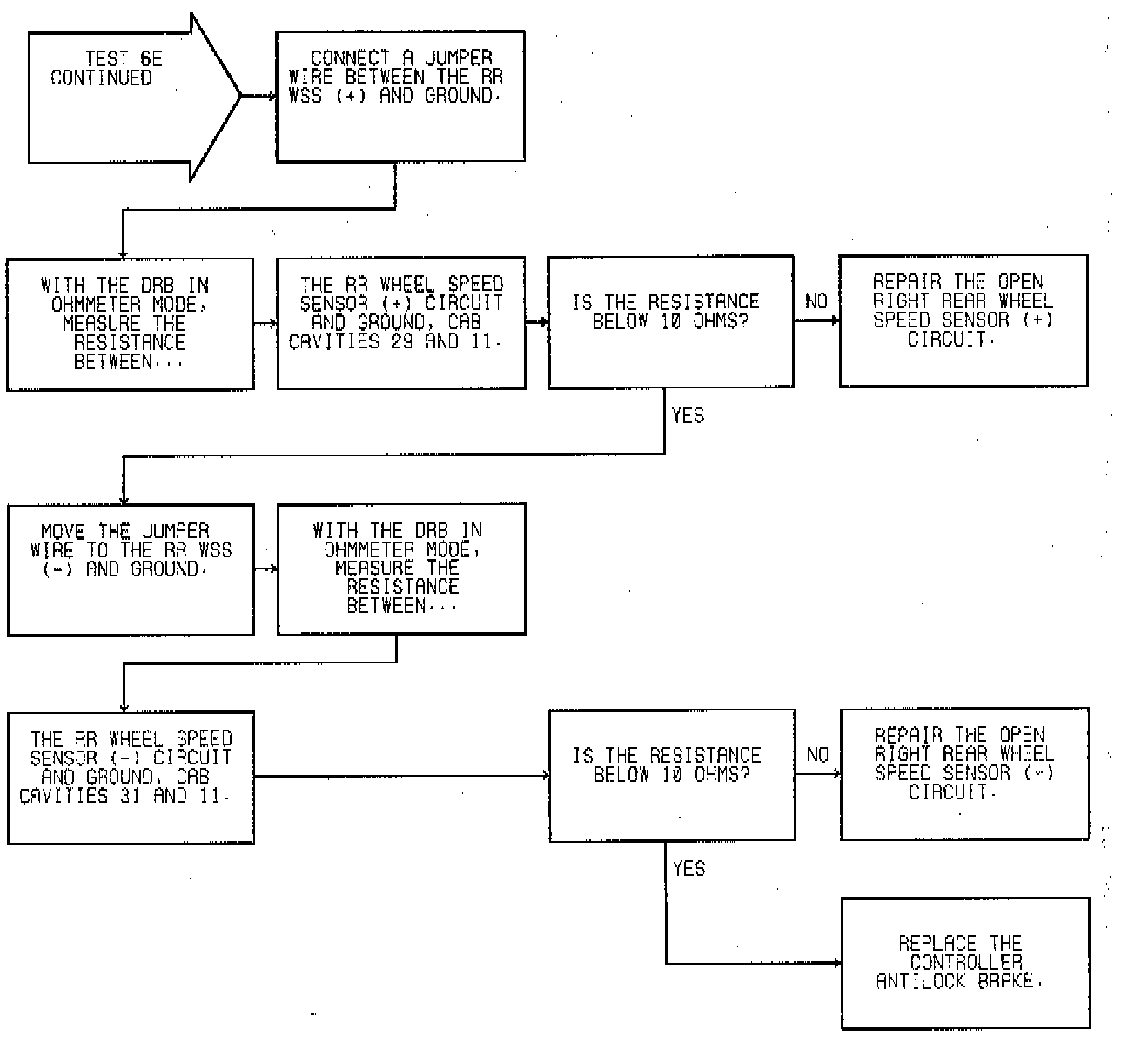

Test 6E: Repairing RR Sensor Circuit Failure (Part 2 Of 2):

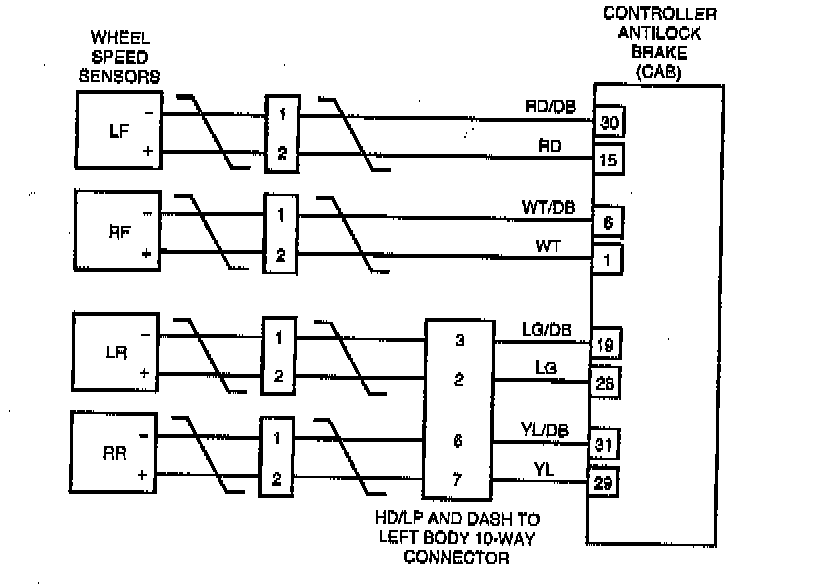

Left Front Sensor Circuit:

RR Wheel Speed Sensor Connector:

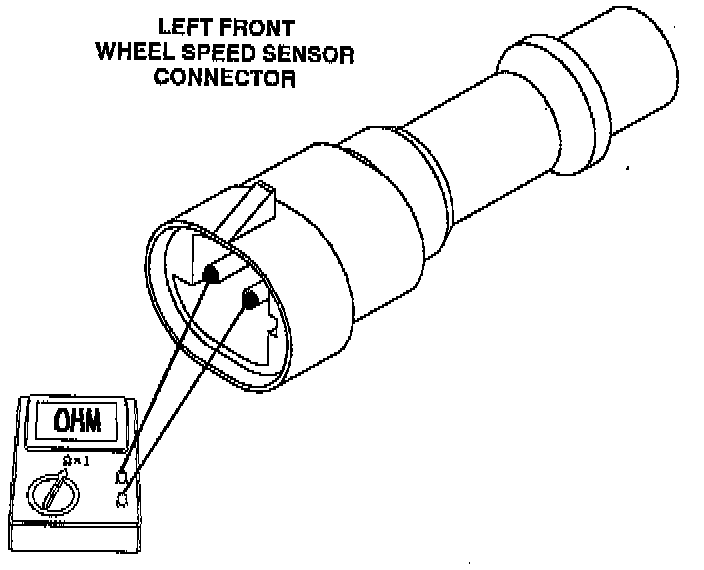

Left Front Wheel Speed Sensor Connector:

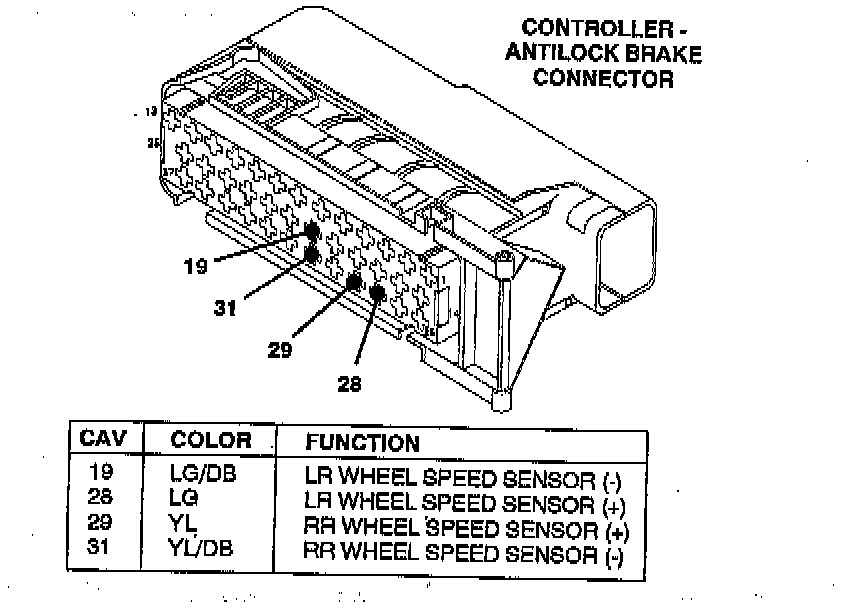

Controller-Antilock Brake Connector:

NOTE: When disconnecting or connecting connectors, always check for terminal damage, pushed out pins or miswired.

NOTE: After completion of steps, or completion of test, perform Verification Test VER-1A.Verification Test VER-1A - ABS
