Test 6D - Right Front Wheel Speed Sensor

NOTE: You must perform Test 6-A, before performing this test.

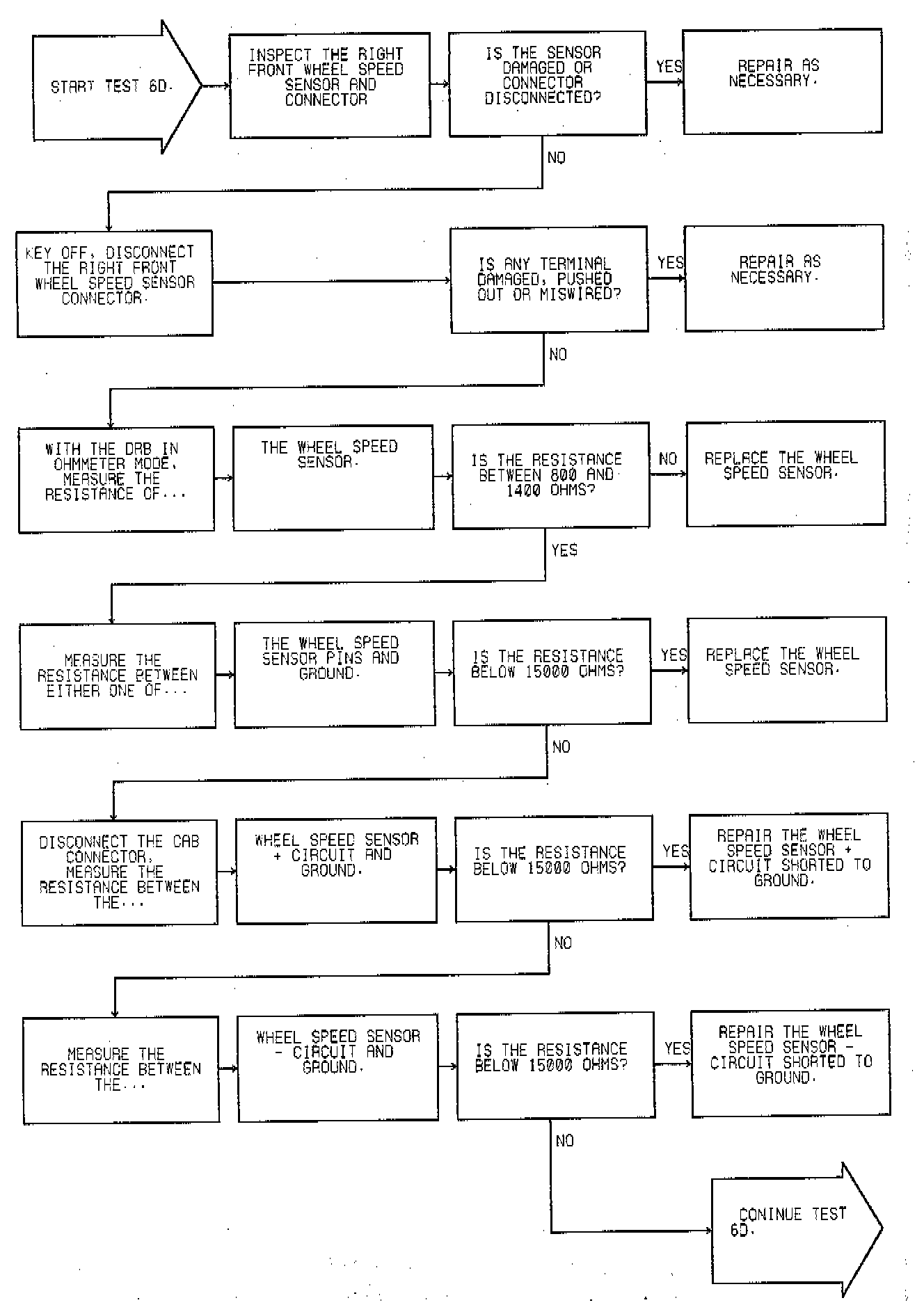

Test 6D: Repairing RF Sensor Circuit Failure (Part 1 Of 2):

Test 6D: Repairing RF Sensor Circuit Failure (Part 2 Of):

Left Front Sensor Circuit:

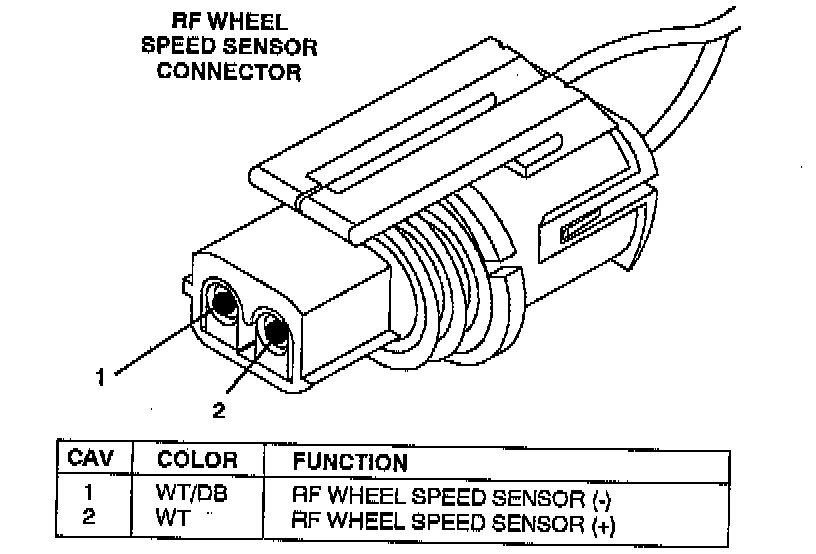

RF Wheel Speed Sensor Connector:

Left Front Wheel Speed Sensor Connector:

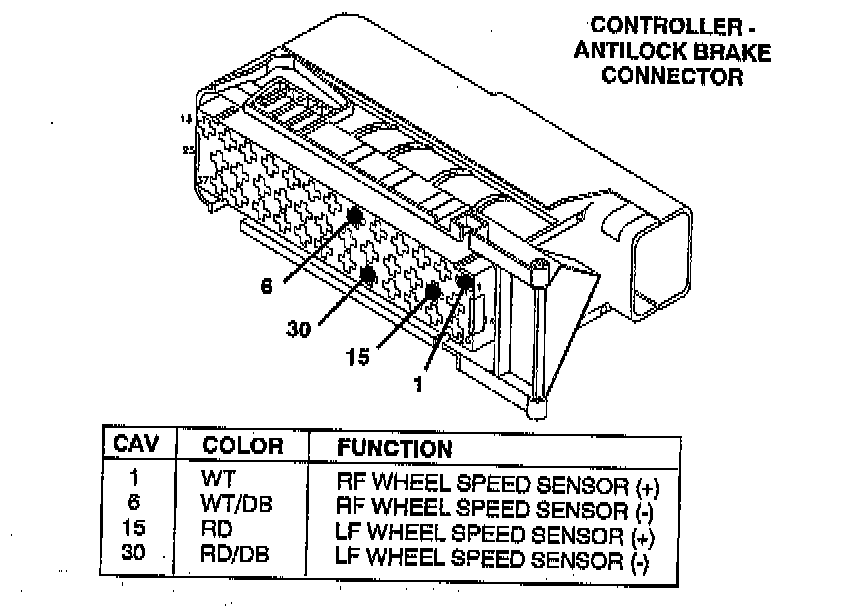

Controller-Antilock Brake Connector:

NOTE: When disconnecting or connecting connectors, always check for terminal damage, pushed out pins or miswired.

NOTE: After completion of steps, or completion of test, perform Verification Test VER-1A.Verification Test VER-1A - ABS
