Test 6C - Left Rear Wheel Speed Sensor

NOTE: You must perform Test 6-A, before performing this test.

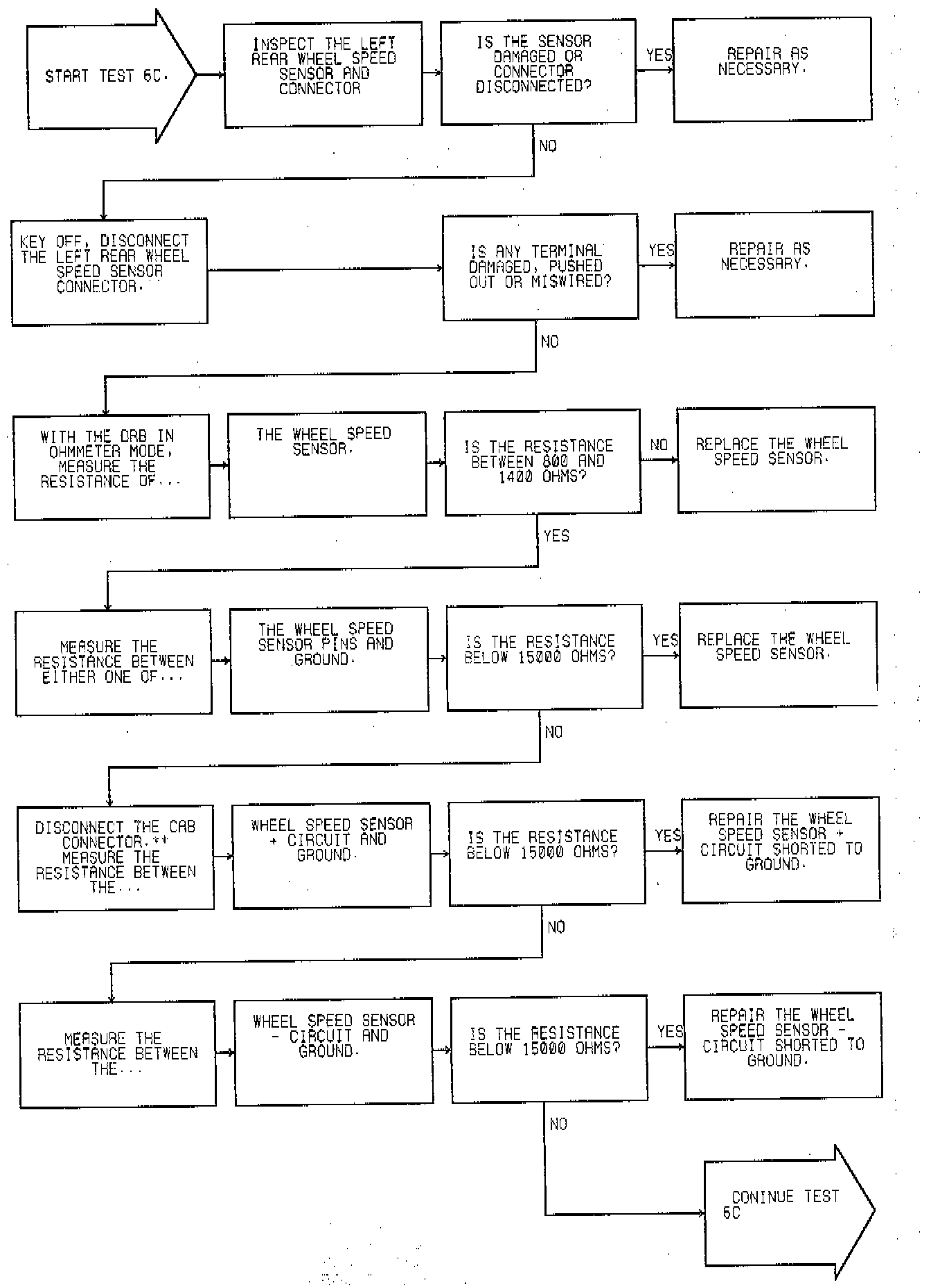

Test 6C: Repairing LF Sensor Circuit Failure (Part 1 Of 2):

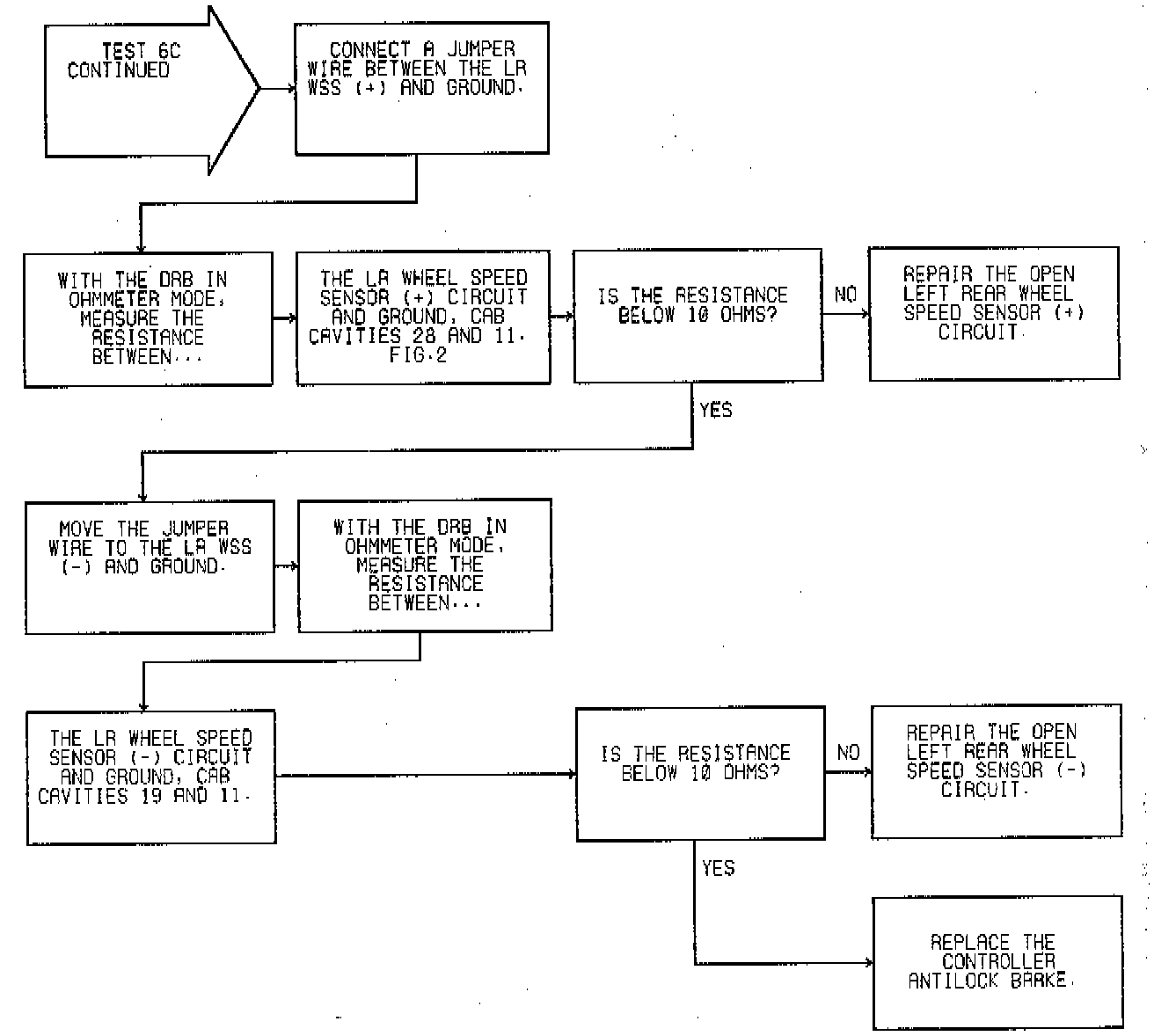

Test 6C: Repairing LF Sensor Circuit Failure (Part 2 Of 2):

Left Front Sensor Circuit:

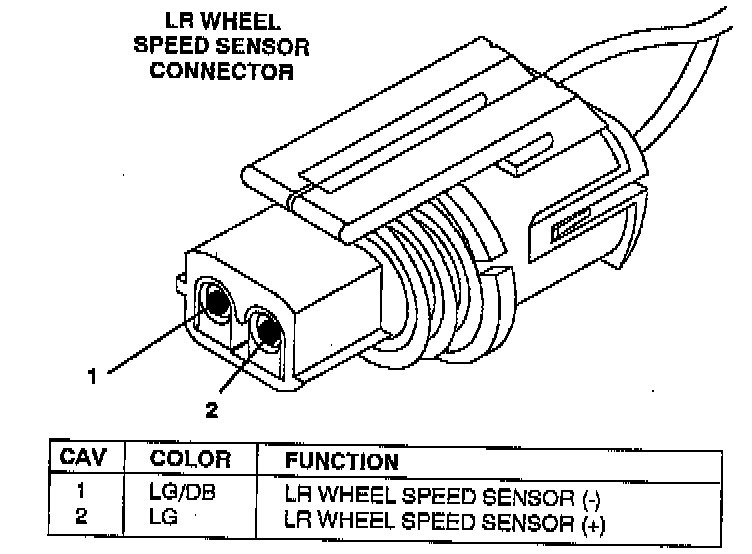

LR Wheel Speed Sensor Connector:

Left Front Wheel Speed Sensor Connector:

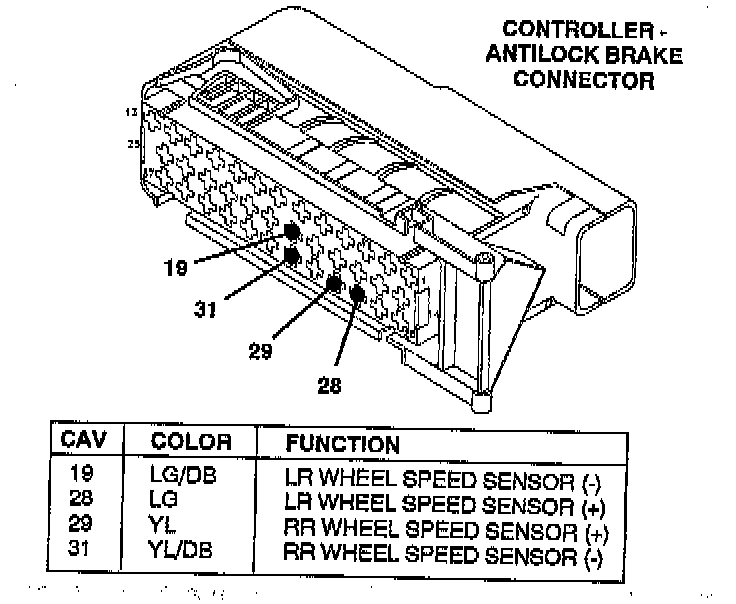

Controller Anti-Lock Brake Connector Terminal:

NOTE: When disconnecting or connecting connectors, always check for terminal damage, pushed out pins or miswired.

NOTE: After completion of steps, or completion of test, perform Verification Test VER-1A.Verification Test VER-1A - ABS
