Test 5A - Outlet Valve Circuit

NOTE: You must perform Test 1-A, before proceeding with this test.

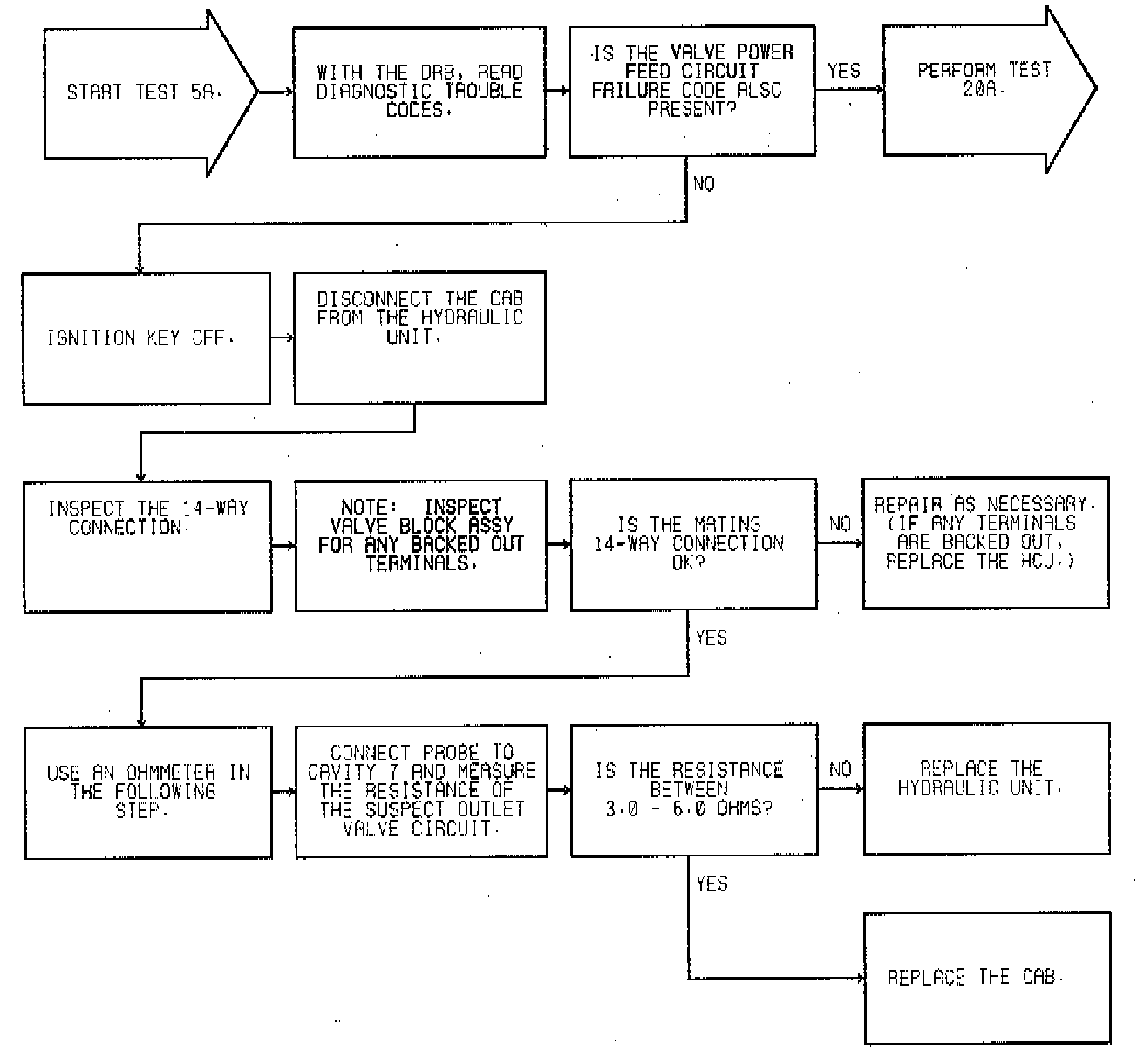

Test 5A: Repairing Outlet Valve Circuits:

NAME OF CODE:
LF Outlet Valve
LR Outlet Valve
RF Outlet Valve
RR Outlet Valve

When Monitored:
Ignition on.

Set Condition:
The Controller Antilock Brakes CAB monitors the outlet valve solenoids. If the CAB detects an open or short solenoid driver circuit, the trouble code is set.

Possible Causes:
^ Loose connections in the valve solenoid circuits
^ Open or shorted valve solenoid coil
^ Loose connection between CAB and HCU
^ Failed CAB
^ Failed HCU

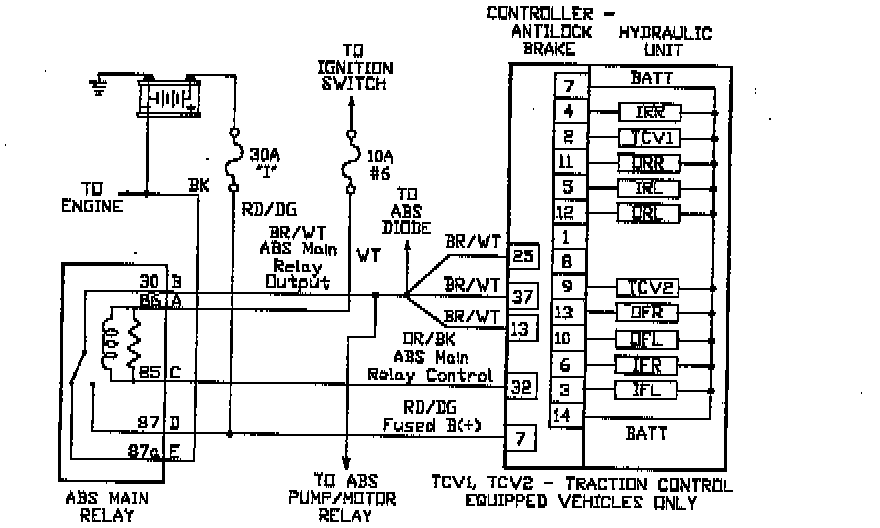

Outlet Valve Circuits:

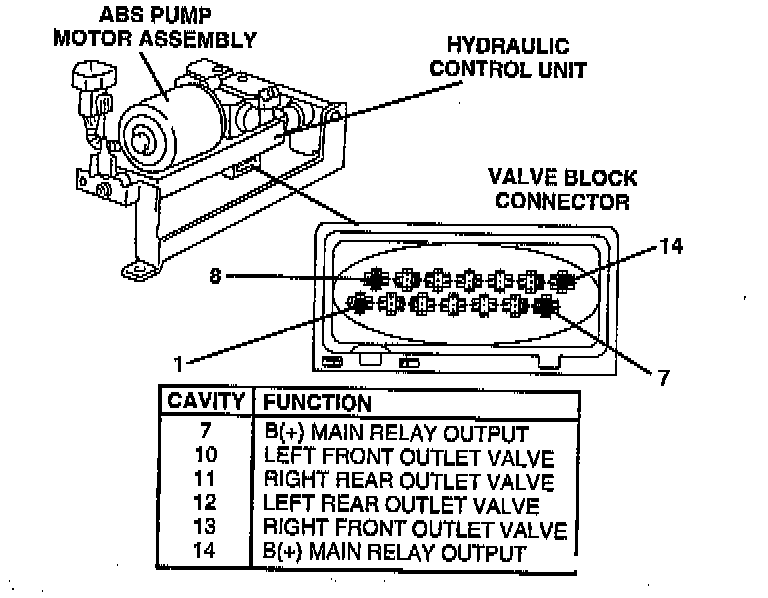

ABS Outlet Valves:

NOTE: When disconnecting or connecting connectors, always check for terminal damage, pushed out pins or miswired.

NOTE: After completion of steps, or completion of test, perform Verification Test VER-1A.Verification Test VER-1A - ABS
