Test 25A - DRB "No Response" Message

NOTE: You must perform Test 1-A, before proceeding with this test.

Test 25A: Repairing "No Response" Message (Part 1 Of 2):

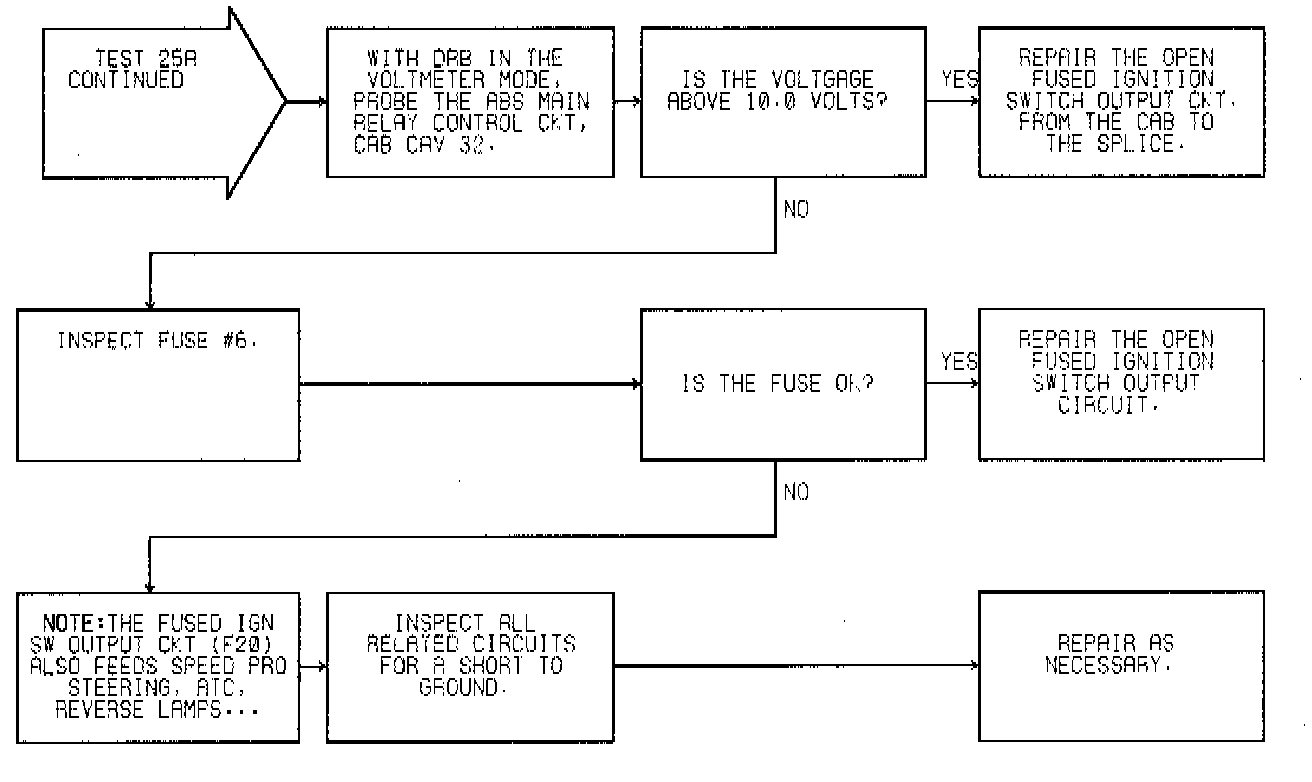

Test 25A: Repairing "No Response" Message (Part 2 Of 2):

ABS Diagnostic Ciruciut:

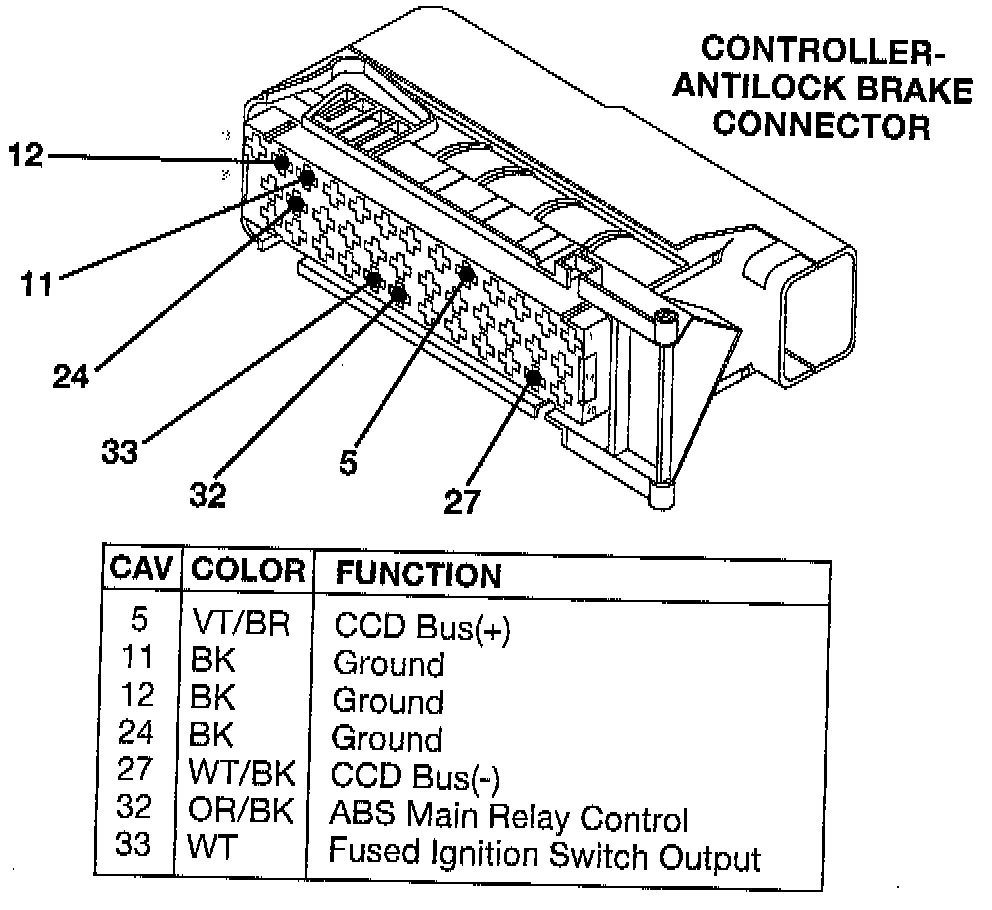

Controller-Antilock Brake Connector:

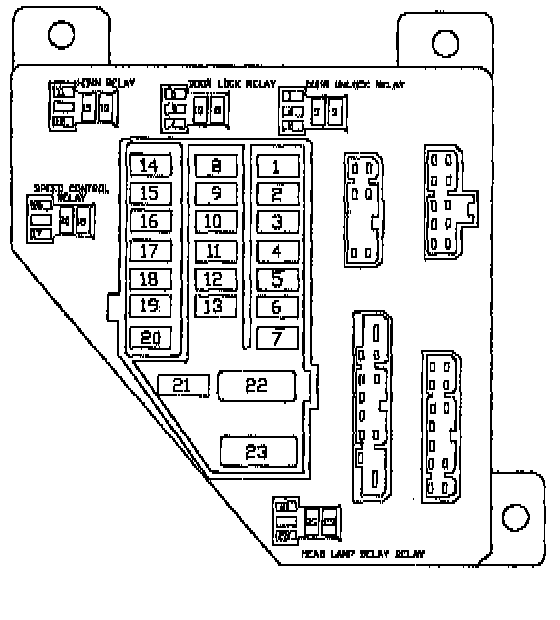

Junction Block:

NOTE: When disconnecting or connecting connectors, always check for terminal damage, pushed out pins or miswired.

NOTE: After completion of steps, or completion of test, perform Verification Test VER-1A.Verification Test VER-1A - ABS
