Test 22B - Traction Control Active Lamp

NOTE: You must perform Test 22-A, before proceeding with this test.

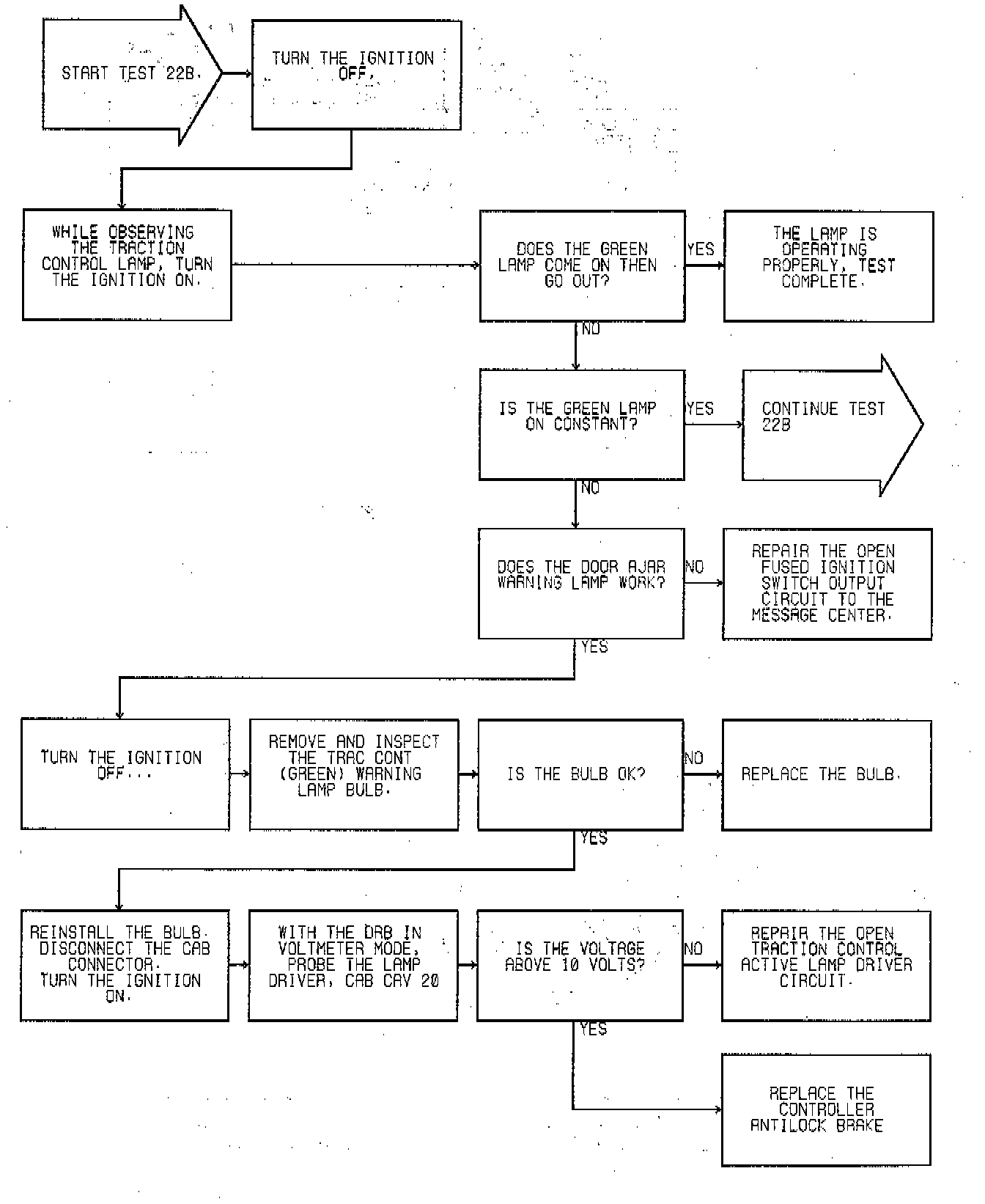

Test 22B: Repairing Traction Control Active Lamp (Part 1 Of 2):

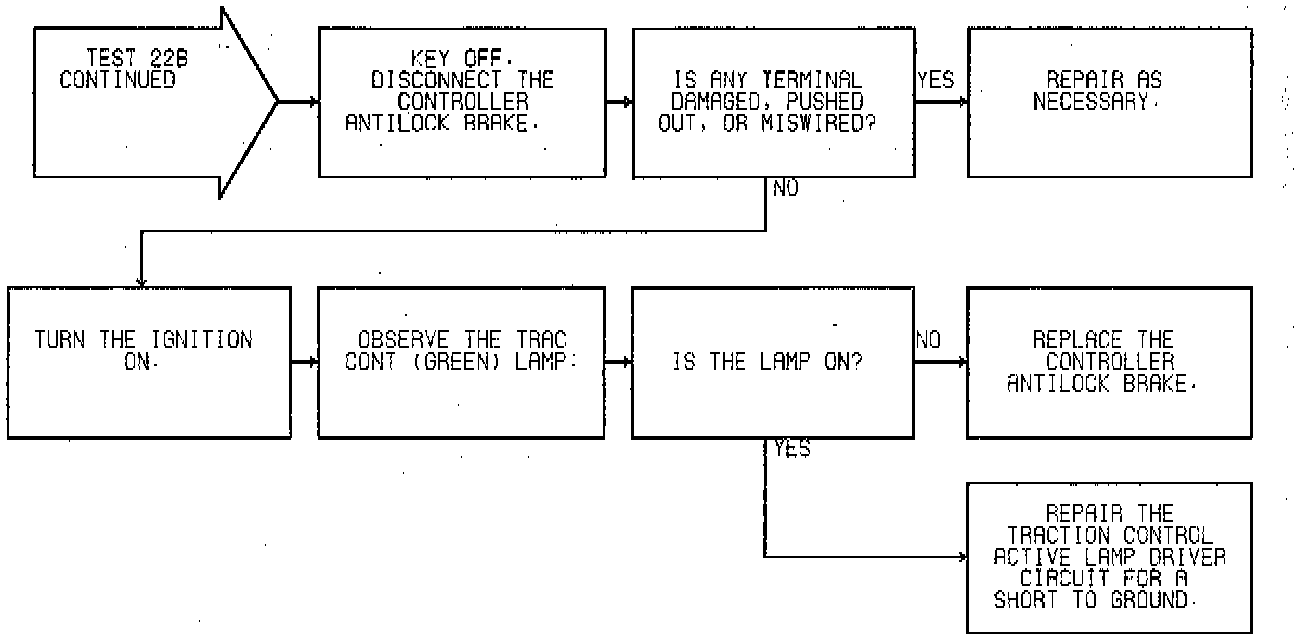

Test 22B: Repairing Traction Control Active Lamp (Part 2 Of 2):

Traction Control System:

Controller-Antilock Brake Connector:

NOTE: When disconnecting or connecting connectors, always check for terminal damage, pushed out pins or miswired.

NOTE: After completion of steps, or completion of test, perform Verification Test VER-1A.Verification Test VER-1A - ABS
