Test 15C

NOTE: You must perform Test 15-A, before proceeding with this test.

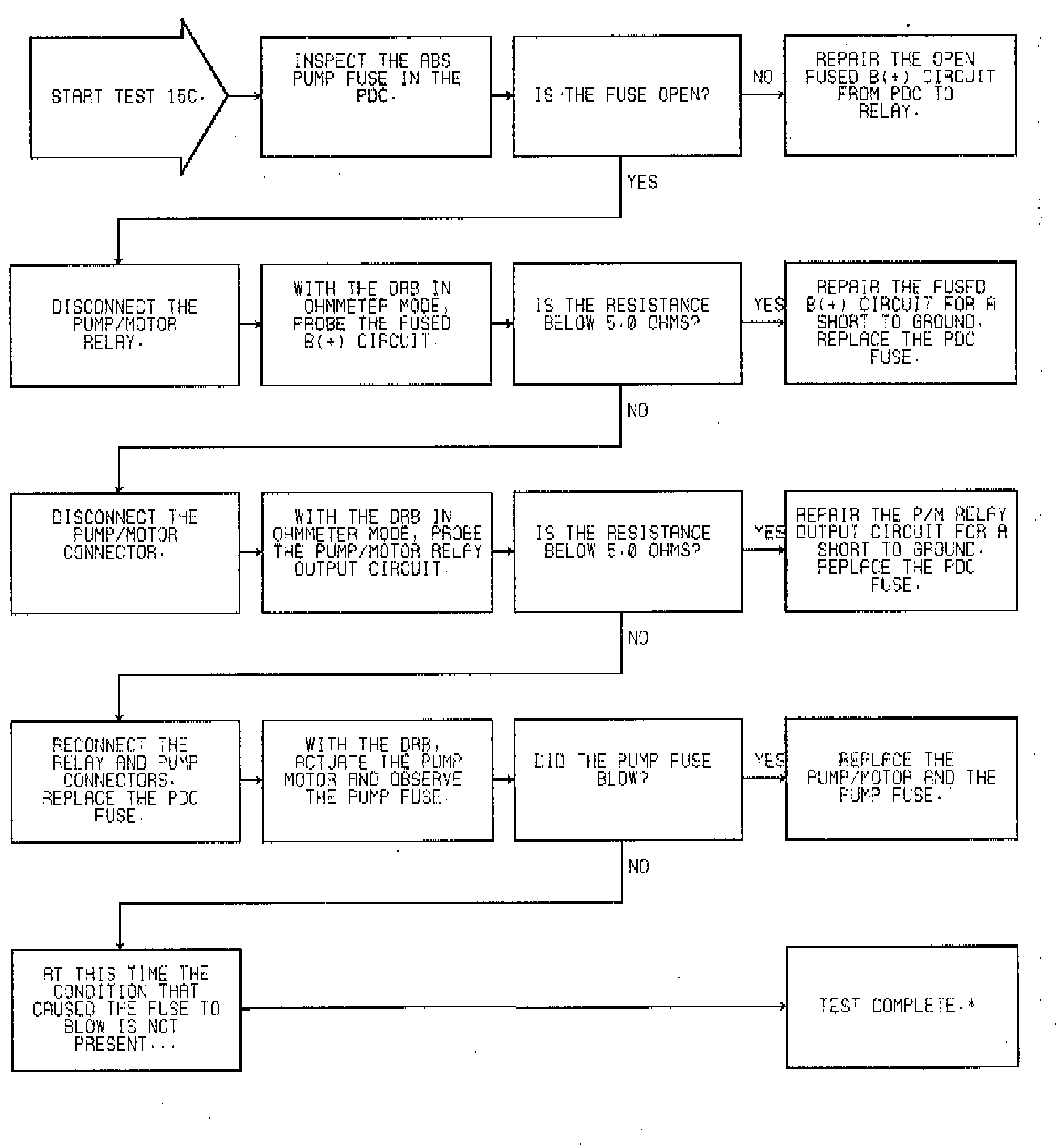

Test 15C: Repairing Pump Motor Circuit Not Working Properly:

Pump Motor Circuit:

INTERMITTENT SHORT CONDITION
You have just attempted to simulate the condition that caused the fuse to blow. The following additional checks may assist you in identifying a possible intermittent problem:

^ Visually inspect related wire harness connectors. Look for broken, bent, pushed out, or corroded terminals.
^ Visually inspect the related harnesses. Look for chafed. pierced, or partially broken wire.
^ Refer to any hotlines or technical service bulletins that may apply.
^ Visually inspect related harnesses for loose or improper routing around sharp objects or under trim panels

Power Distribution Center:

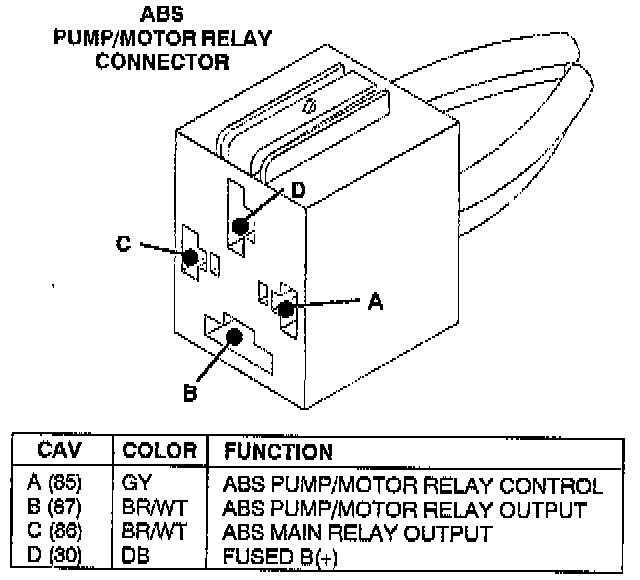

ABS Pump/Motor Relay Connector:

NOTE: When disconnecting or connecting connectors, always check for terminal damage, pushed out pins or miswired.

NOTE: After completion of steps, or completion of test, perform Verification Test VER-1A.Verification Test VER-1A - ABS
