Test 15B

NOTE: You must perform Test 15-A, before proceeding with this test.

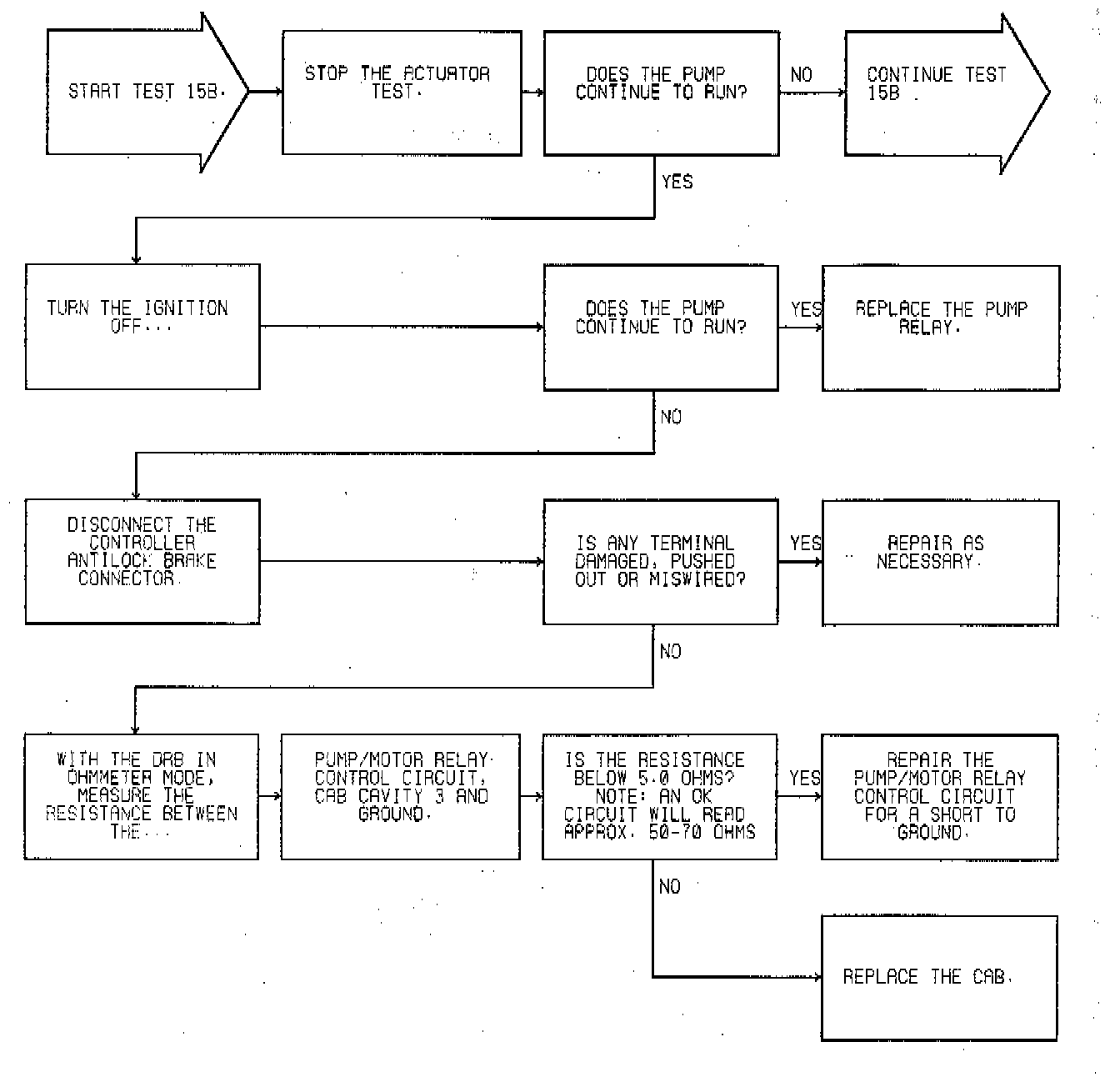

Test 15B: Repairing Pump Motor Circuit Not Working Properly (Part 1 Of 2):

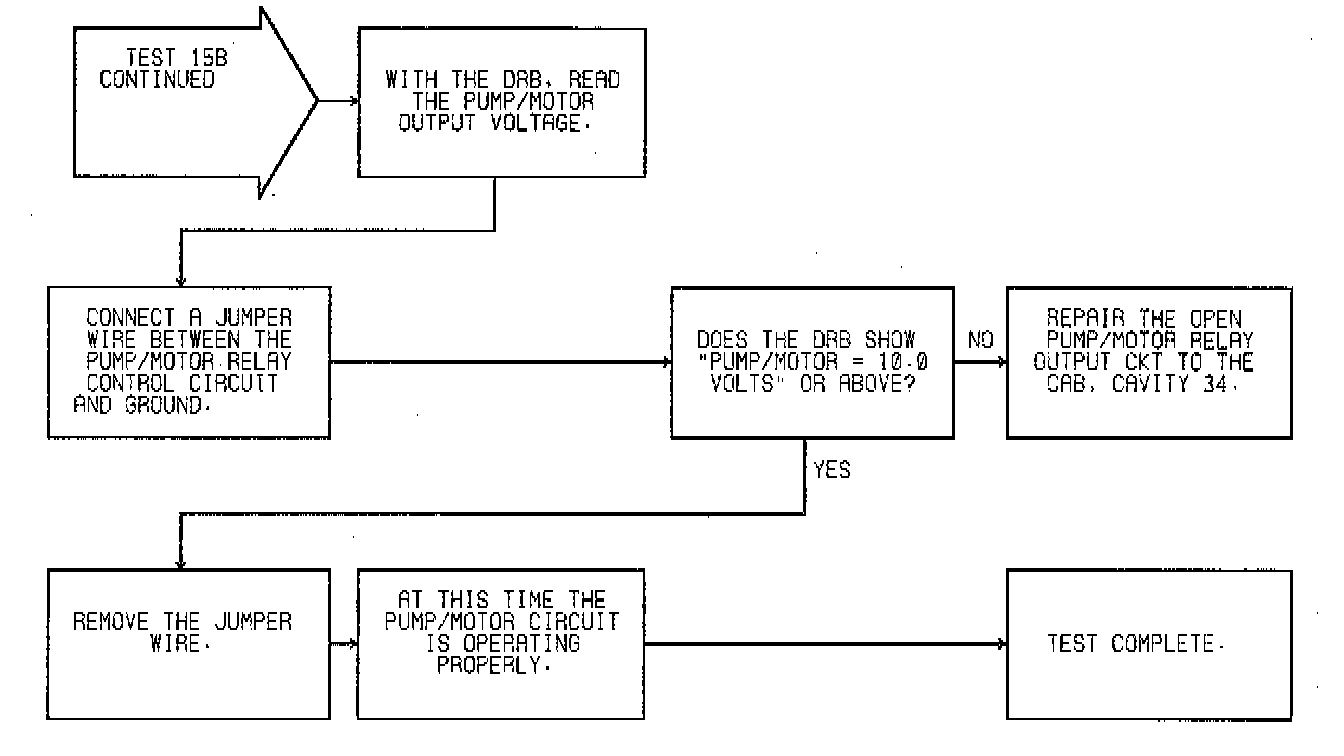

Test 15B: Reparing Pump Motor Circuit Not Working Properly (Part 2 Of 2):

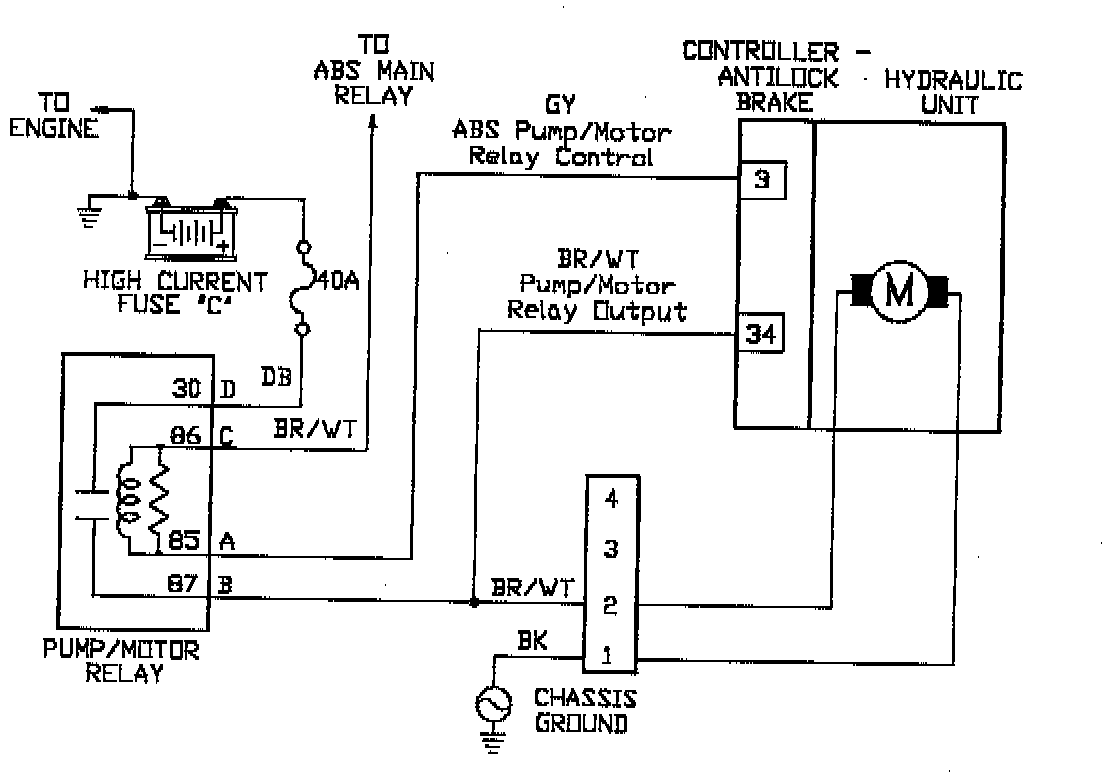

Pump Motor Circuit:

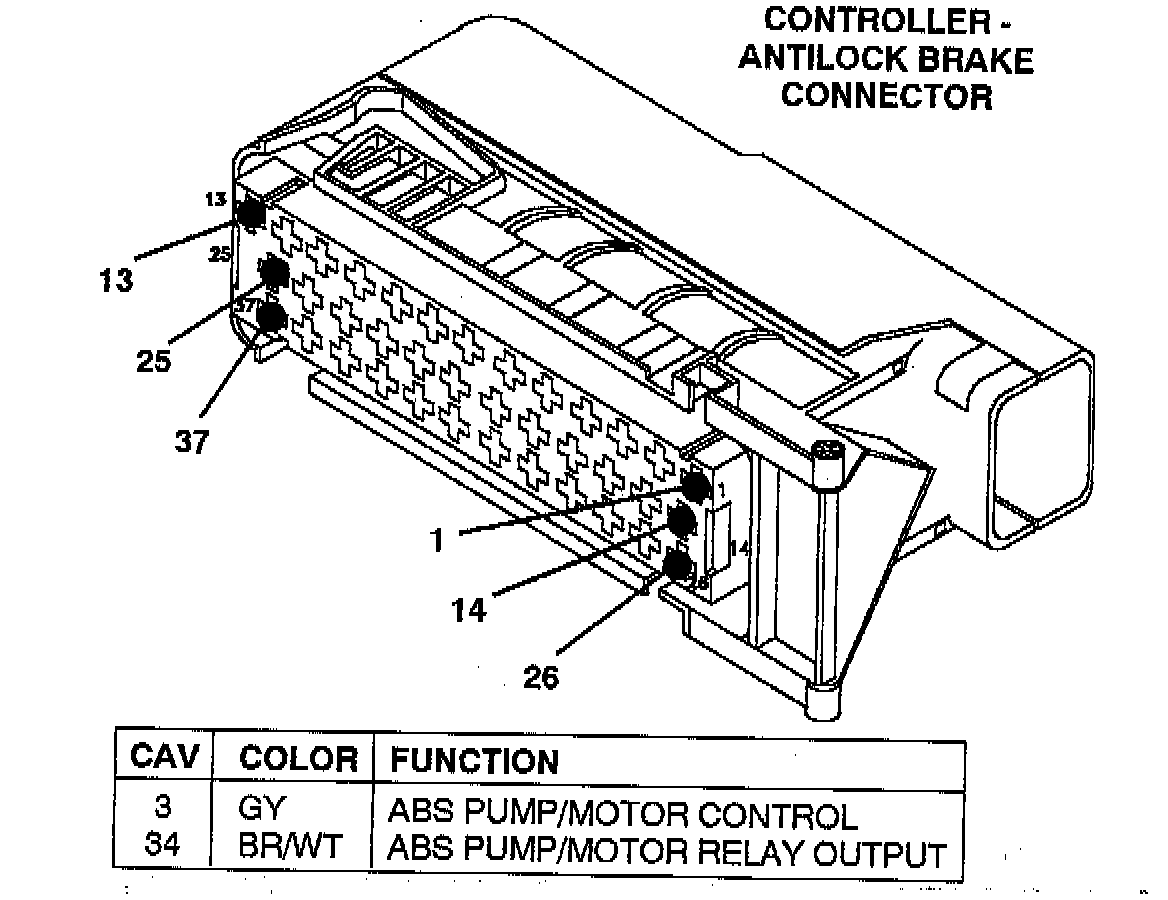

Controller-Antilock Brake Connector:

Pump Motor Circuit:

NOTE: When disconnecting or connecting connectors, always check for terminal damage, pushed out pins or miswired.

NOTE: After completion of steps, or completion of test, perform Verification Test VER-1A.Verification Test VER-1A - ABS
